Prod Model: |
ZDP 800*800 |
Commodity: |
Zdp Vibrating Table |
Material: |
Carbon Steel/Stainless Steel |
Amplitude: |
2-5mm |
Decks Height: |
10mm |
Vibrating Motor: |
2 Sets |
Power: |
0.75kw |
Voltage: |
as Required |
Warranty: |
1 Year |
Low Noise: |
65dB |
Frequency: |
50-60Hz |
Type: |
Concrete Vibrator |
Machining Process: |
Welded Molding Machine |
Certification: |
CE |
Condition: |
New |
Feeding Height: |
500mm |
Product Description
Product DescriptionThe vibration tables can be found in an open or closed design and can also be designed for the demand of a sanitary environment. The operations of the vibrating tables are typically compaction or removal of air from miscellaneous materials, vibration of cartons and cans for reducing packaging size, vibration of bags and sacks on pallets for stabilization before wrapping and testing of electronic equipment etc... at various frequencies.

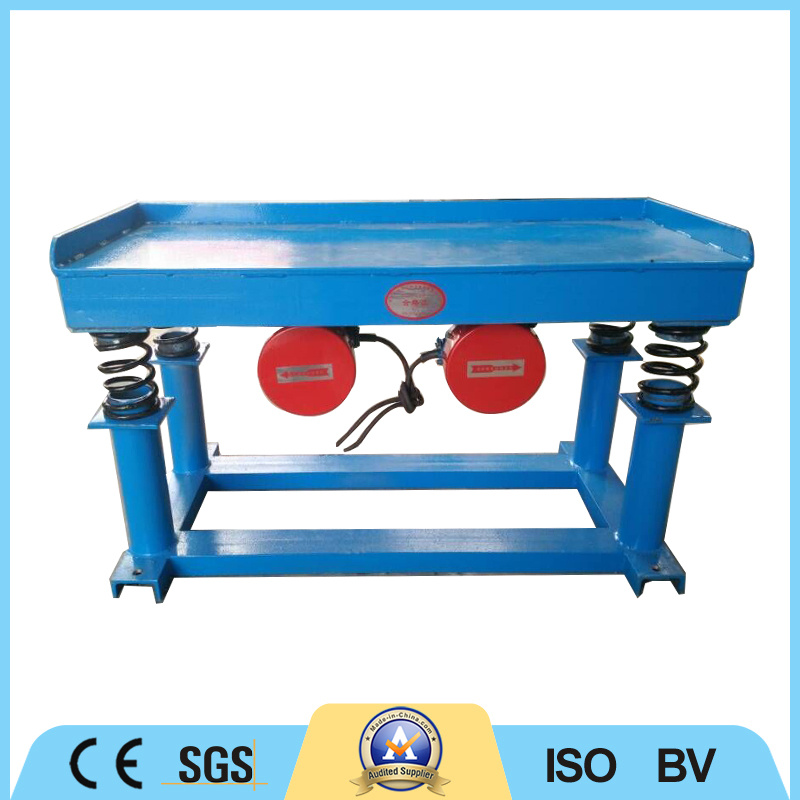

Working principle:Vibration table is mainly composed of four parts.They are bracket, counter-tops, vibration, shock absorption institutions. Rubber springs and 2~8 vibrating motors are used together to vibrate materials from all directions (up and down, left and right, front and rear),leading to the effect of two or three-dimensional shake.)
In the using process, the particles can arrive to the perfect status by adjusting the excitation force of vibrating motors. The vibrating table is mainly used for resin sand, lost foam, etc. The machine is vibrated by vibrating motors to make the sand to compact and enrich the mould. It can be combined with roller conveyor to form the flow production line.
Features:1. Simple structure,low noise
2. Low power consumption
3. Long last life-time ,easy maintenance
4. Adjustable exciting force
5. Realize different vibration mode : vertical vibration , horizontal vibration , two dimensional vibration, three dimensional vibration

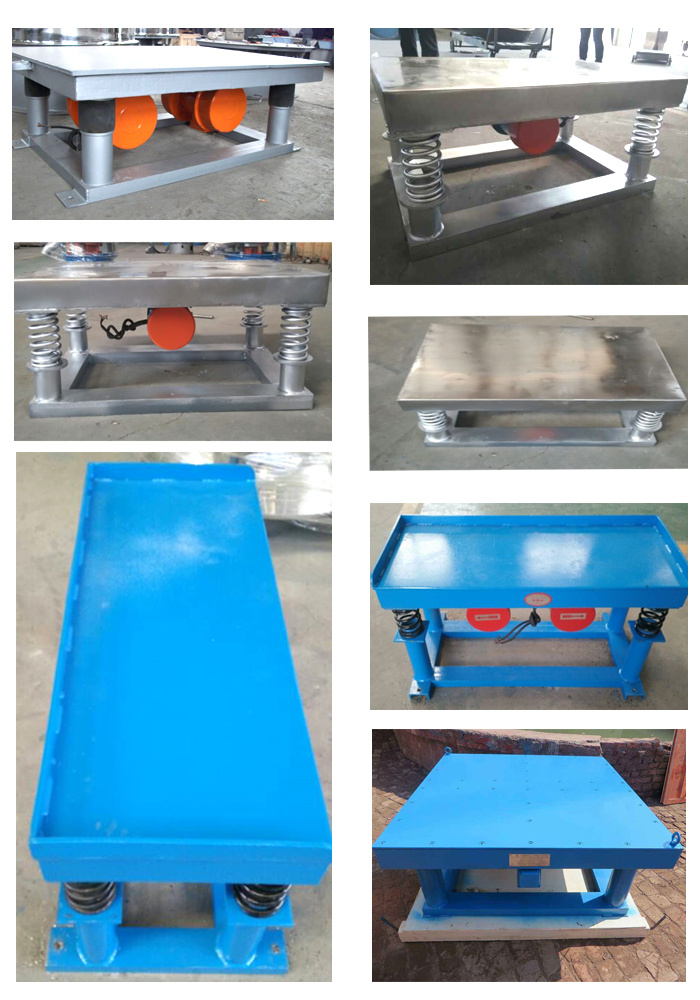

6. Different types of vibrating tables are available according to different requirement .
7. Customization is availableTechnical data:Model | Area(m*m) | Power(kw) | Amplitude(mm) | Weight(kg) |
500*500 | 0.25 | 2*0.25 | 2~5 | 150 |
600*600 | 0.36 | 2*0.37 | 2~5 | 180 |
800*800 | 0.64 | 2*0.75 | 2~5 | 300 |
1000*1000 | 1 | 2*1.1 | 2~5 | 450 |
1200*1200 | 1.44 | 2*1.5 | 2~5 | 1200 |
1500*1500 | 2.25 | 4*1.1 | 2~5 | 1800 |
2000*2000 | 4 | 4*1.5 | 2~5 | 2500 |
3000*3000 | 9 | 6*1.5 | 2~5 | 3200 |
Application:ZDP series vibrating table is widely used in metallurgy, mould, food, Chemical Building material etc.... they are designed to settle and compact dry bulk materials in various vibrating table for concrete molds types of containers.
Service:1. Special design offered.
2. Buyer label paste offered.
3. Sample testing support.
4. View our Factory
5. One year warranty.
6. Three years extended warranty.
7. 24 hours inquiry and consulting support.
8. Training how to instal and use the machine.
How to select a right model:The proper selection of vibrating table depends on:
1. The table size?
2. The height?
3. The max loading you required?
4. The voltage you use?
5. Additional parts, such as: the mobile wheel, frequency converter etc...
Welcome your inquiry any time.
