High Density Storage Shelving

High Density Storage Shelving
Price: US $ 223.59-226.59/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SII-MIPS022
Color: Putty, Light Grey, Beige, White
Surface Treatment: Epoxy Powder Coating
Quality Warranty: 3 Years
Delivery Time: 2~3 Weeks
Port: Shenzhen Port
Material: Metal
Open Type: Sliding
Usage: Office
Customized: Customized

Product Description

What is high density storage shelving?

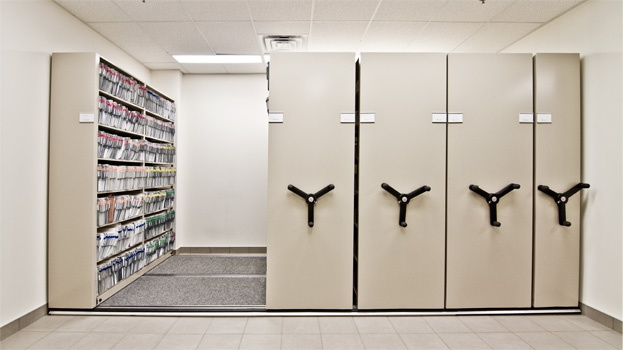

High Density storage Shelving is a shelving system which mounted on moving carriages. It is a perfect & high efficiency storage solution maximum uses of your limited floor space.
All archive shelving units can be locked & packed when access is not required, but when needed, an aisle can be created. All the rolling shelving units have dust proof device, make sure the whole units are dust free.

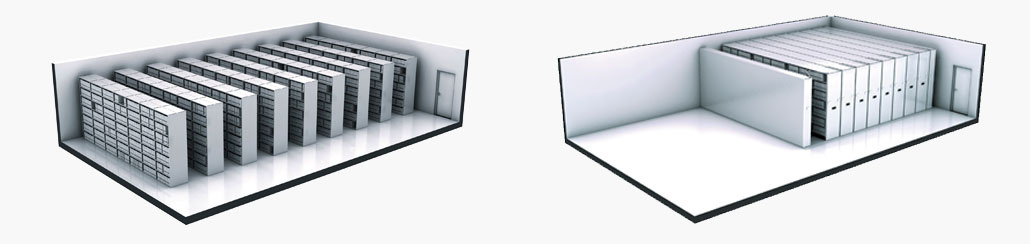

The benefits you can get by using mobile aisle shelving systemsMobile shelving makes the best use of the available space by using only a single aisle, nearly doubling the storage capacity of the archive. Mobile shelving can be moved individually or in multiples, where necessary. The system can be specified with extra-wide aisles, suitable for wheelchair users.By allowing you to store all your information in one space-efficient area, files and other media are accessible within a few feet of each other. Mobile shelving systems allow you to keep files close to those that need them and minimize off-site storage. Productivity increases as the amount of time required for access, filing and retrieval of your information is reduced.The storage of historical documents requires specific conditions for safe and long-term preservation. Ventilation ducts and filters ensure an optimum climate to protect the archive against dust and mould. In addition to climate control, Simply mobile shelving has a range of features to preserve a historical archive collection.

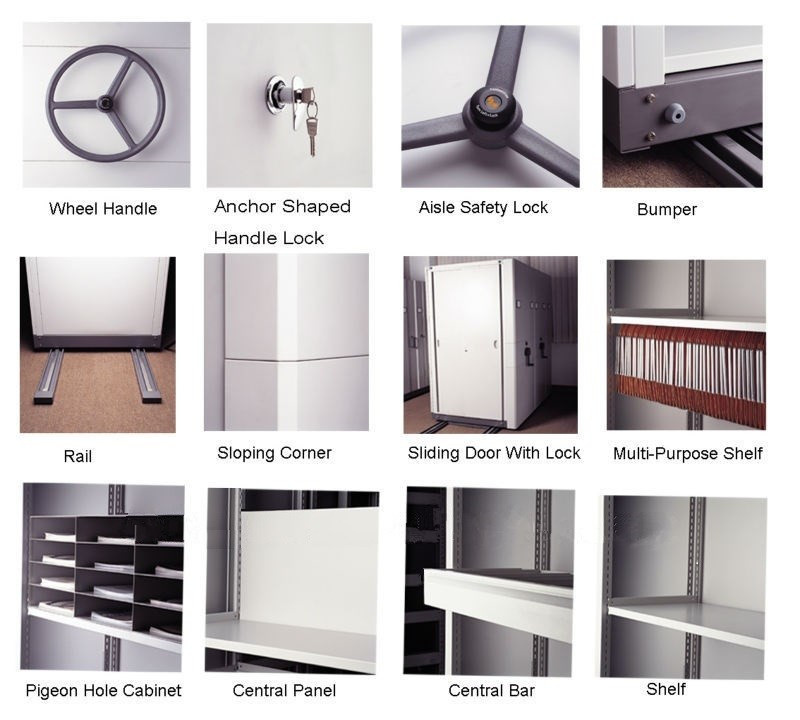

Product featuresMain parts and Optional accessories: Multi-purpose shelf,  cabinet, pull-out desk top, hanging rod, pull-out frame, pull-out drawer, divider, , disk drawer, platform, sliding door

Specification:
                                                         Parameter Specification  :
Types:Manual Mechanical WheelMechanical Handle
Material  :Electrolytic Galvanized Steel
Surface treatment:Epoxy Powder Coating
Dimension  :Height :2150mm
Width :(905*N)+165mm    (N=number of Bays)
Depth  :Fixed Unit  : 450mm
Movable Unit  : 450/650/850mm
Shelf Size :W845xD395xH38mm(for 450/850); W845xD295xH38mm(for 650);
No. of Shelf Single Fixed /Single Movable =4n
Double Movable =8n
Aisle Size :600-1000mm
Loading per Shelf:Reinforced Shelf  :D295mm/85kg ; D395mm/100kg
Multi-purpose Shelf  :D395mm/70kg
No. of Rails :1-3Bays : 2pcs4-5Bays :3pcs
6-7Bays : 4pcs8Bays :5pcs
Thickness:BaseBack panelTop panelFront panelSide panel ShelfPostRail
2mm1mm1mm1mm1mm0.8mm1.5mm2mm
Lock :Steering wheel with brake ,more safety
Post50x50mm square tube post of double plate with slots in 25mm increment
Bumper :Natural rubber of 30x16mm
Rail :Made of 25mm concrete steel with 0.8mm stainless steel sheet coating
Wheel :Iron die casting with anti-rust zinc coating
Loading  : 1000kg / Wheel
  Standard model of mobile filing shelving
TypeBay numbersSingle fixed Single movable  Double movable   Double Movable
Manual1SFP450-1SMP450-1DMP650-1DMP850-1
2SFP450-2SMP450-2DMP650-2DMP850-2
Mechanical1SFM450-1SMM450-1DMM650-1DMM850-1
2SFM450-2SMM450-2DMM650-2DMM850-2
3SFM450-3SMM450-3DMM650-3DMM850-3
4SFM450-4SMM450-4DMM650-4DMM850-4
5SFM450-5SMM450-5DMM650-5DMM850-5
6SFM450-6SMM450-6DMM650-6DMM850-6
7SFM450-7SMM450-7DMM650-7DMM850-7
8SFM450-8SMM450-8DMM650-8DMM850-8
Standard  Depth:  ( D )450mm450mm650mm850mm
Standard  Height:   ( H )                   2150mm
Standard  Width:  ( W )905*N (N=number of Bays)
