Product Description
Brief introduction of equipment:

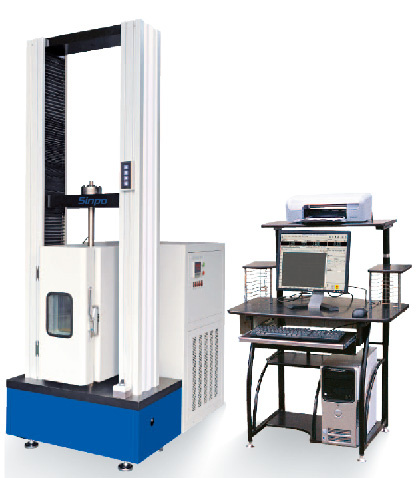

This laboratory equipment is suitable for carrying out some reliable tests on industrial products under high and low temperature (variable) environment, which can be combined with the main machine at random according to the different requirements for using environment. It can be used to complete the tensile, compression and shear tests of various metal and non-metal materials at high and low temperature, as well as meet the using needs of various special industries, such as plastics and rubber. If testing at room temperature, it just needs to remove the environmental cabinet, or not to increase/decrease the temperature in the environmental cabinet. Its temperature controller adopts human-machine interface (HMI), and is combined with central arithmetic unit and intelligent PID fuzzy control mode, so as not to cause any test temperature overshoot, which is of high control precision, good stability, color interface, intuitive, and easy to operate.
Technical parameters:
| Name | High- and low-temperature environmental cabinets |
| Size of inner bore | 240X330X430 (can be set according to the user's requirements) |
| Temperature range | '-40ºC~+120ºC' |
| Temperature precision | 0.30% |
| Temperature fluctuation | 0.5ºC |
| Temperature uniformity | ±2ºC |
| Temperature decreasing rate | 0.7-1ºC/min |
| Electrical heating hollow glass observation window | |
| Temperature control | PID automatic temperature control |
| Outer- wall material | Spray coated cold-rolled iron sheet |
| Inner wall material | Stainless steel |
| Heat-insulating materials | Anti-flaming heat-insulating materials |
| Equipped with electric heating devices at the edge of door frame and door plank, so as to prevent any condensation or frost when testing at low temperature . |
| Illuminating lamp | |
| Air conditioning system | |
| (1)Temperature control | PID automatic temperature control |
| (2) Air circulation system | Centrifugal fan |
| (3) Heating mode | Nickel-chromium electric heater, with forced ventilation, and internal circulation thermoregulation. |
| (4) Air cooling mode | Compressor cooling |
| (5) Temperature measurement sensor | Platinum resistor |
Guiyang Xintian Oetech Co., Ltd. is located in China National High-tech Industrial Development Zone, Xintian, Guiyang, P. R. China. It covers an area about 100 acres and over 2000 staffs in it. It is a comprehensive high-tech enterprise, which mainly concentrates on research and developing, production and marketing of optical instruments. We have more than 40 years experiences in this field and is always treated as a major enterprise protected by municipal, provincial and state governments. In additional, we are the enterprise which comply with ISO 9001: 2000 and ISO 1002-1, and our products have won the achievement prizes in scientific research awarded by provincial, ministerial and state governments.
In 1966, a part of Xintian moved from Shanghai to Guiyang and established a factory which mainly product optical measuring instrument. The others also moved to Guiyang and established a new factory named Chitian in 1968, which mainly product physical optical instrument. On March 1979, Xintian incorporated with Chitian, became the largest optical enterprise and major corporation in the line at that moment. Then, on January 2002, Xintian recombined asset and eatablished a new company, that is present Xintian Oetech Technology Corp., Ltd. It adopt modern managing pattern, deepen the reform, look upon on the introduction and treatment of talent people. Thus, it happened a great change in a short time and enjoyed good reputation in this line. Xintian went through twists and turns, accumulated more than 40 years' Experiences and techniques, finally achieved present brand.
