| Prod Model: |
R12P |
| Frequency Response: |
55 Hz ~ 18kHz (+3 dB ) 50 Hz ~ 20kHz (-10dB ) |
| Nominal Cverage: |
80°× 50° |
| Sensitivity: |
122dB Spl,128 dB Spl Peak |
| Power Rating: |
450W |
| Power Requirement: |
110V, 220V |
| Amplifier Module: |
Double Channels 700W |
| Snr: |
102.5dB |
| Output Circuit Style: |
D Class |
| Cooling System: |
Fan From Back From Front, Forced Cooling |
| Weight: |
27kg |
| Noise: |
<102dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
SGS |
| THD: |
<0.03% |
| Monitor: |
None |
Product Description

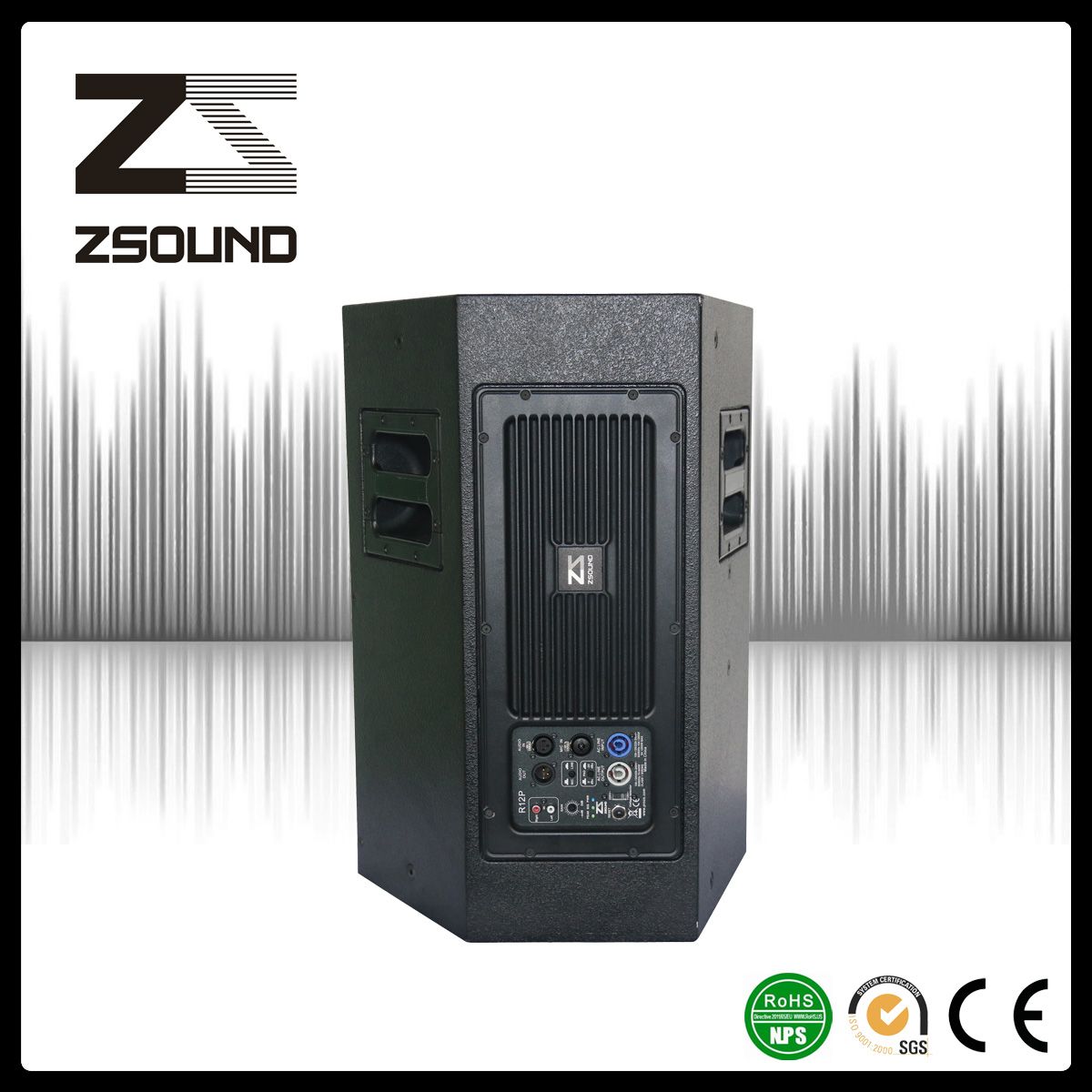

Hi-fi professional selfpower 12 inch stage speaker cabinetR Series is two full range selfpower speaker, mainly designed as FOH and monitor. The coverage of HF horn is 80°×50°.
And it Built-in voltage toggle switch for voltage requirements in different countries. It supports a variety of signal input.
Such as MIC and LINE. It has a volume control and with attenuation value. And it is suitable for Auto Show, multi-function hall and small hall show.
Feature:
Two way selfpower full range speaker
Elastic bass
Long throw rubber edge LF driver
Rotatable 80° × 50 °directivity horn
Applications:
Small FOH
Stage monitor
Near-field sound

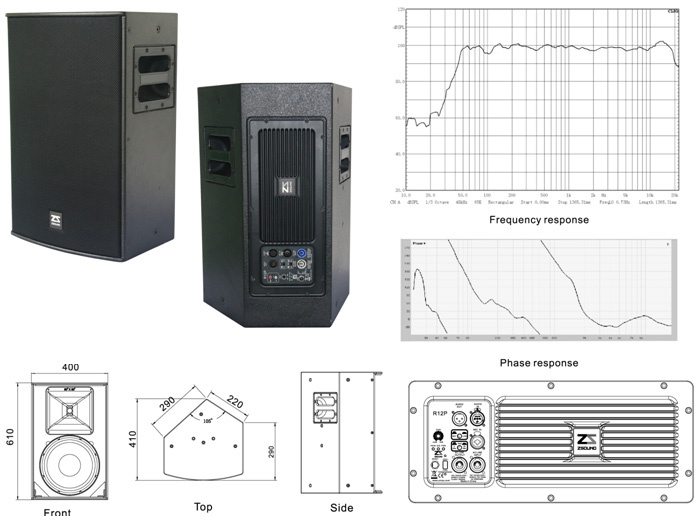

| Technical Specification |
| Frequency range(include powered module) | 55 Hz ~ 18KHz (+3 dB ) 50 Hz ~ 20KHz (-10dB ) |
| Normal power (AES) | 450W |
| Driver | LF 1×12" (75mm voice coil) woofer
HF 1×1.75" (1"throat) exist compression drive(44mm voice coil) |
| Nominal Coverage | 80°× 50° |
| MAXIMUM SPL | 122dB SPL,128 dB SPL peak |
| Voltage requirement | 100V-120V/200-240V~ 50-60Hz |
| Amplifier module | Double channels 700W |
| Total harmonic distortion (1KHz, full frequency 4Ω) | ≤1% |
| SNR | 102.5 dB |
| Audio in gain (1KHz 8Ω) | 23 dB |
| Mic in gain (1KHz 8Ω) | 56 dB |
| Input connectors (per.ch) | male XLR & female XLR (Neutrik) |
| Input impedance | 20KΩbalanced/10KΩunbalanced |
| Output circuit style | D class |
| Cooling system | Fan from back from front, Forced cooling |
| PHYSICAL DATA |
| Dimension(H×W×D) | 610×400×410(mm) |
| Weight (include powered module) | 27(kg) |
| Rigging | 17×M8 top +35mm bottom×1 |
| Material of enclosure | 15mm,18mm plywood |
| Surface | Black water paint |
| Grille | Black epoxy mesh grille with acoustically |
FAQ:Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.Our advantages:1) global leading professional manufacturer of professional speaker and amplifier
2) product quality: superior speaker and amplifier, top technology and quality
3) certificate: CE, RoHS, GS,SGS,ISO9001
4) monthly production capacity: 2000 pieces
5) fast delivery: get your order when you need it

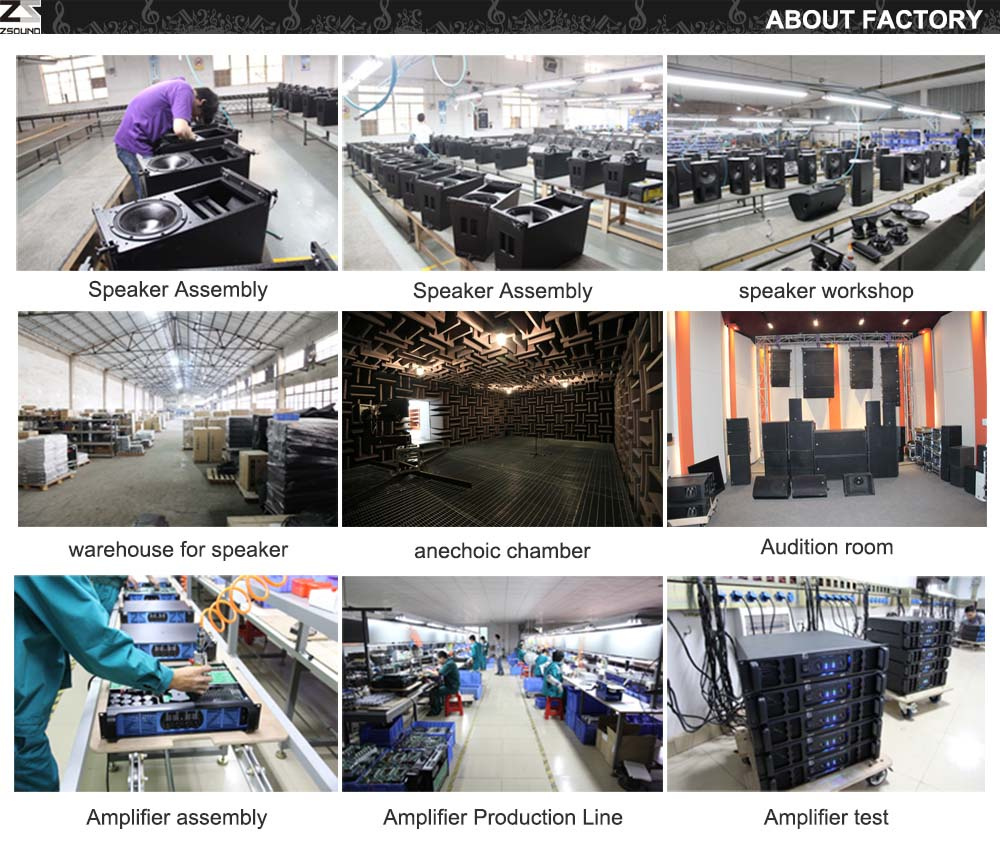

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) convenient transportation: 1 hour to Baiyun airport, 30 minutes to Guangzhou South Railway Station, 20 minutes to Panyu Square Metro station
8) 24-hours online service
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.
Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.
During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.
What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance
In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.
After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.
Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
