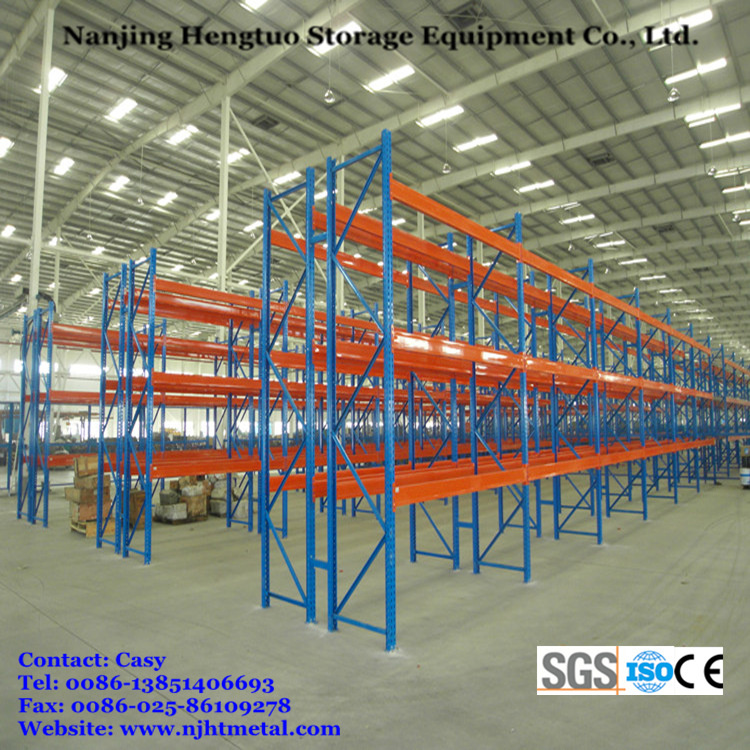

Hengtuo Warehouse Storage Heavy Duty Pallet Racking with Wire Decking
Price: |
US $ 50-200/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
HT01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Surface Treatment: |
Plastic Spray or Baked Paint Finishing |
Color: |
as Required |
Pitch: |
75mm |
Feature: |
Corrosion Protection |
Connecting Way: |
Bolted |
ODM: |
Yes |
OEM: |
Yes |
Type Of Company: |
Manufacturer |
Loading Port: |
Nanjing |
Delivery Time: |
15-20 Days According to Quantity |
Material: |
Steel |
Structure: |
Rack |
Mobility: |
Adjustable |
Closed: |
Open |
Development: |
New Type |
Serviceability: |
Common Use |
Height: |
Selective |
Weight: |
up to 4500kg |
Product Description
Hengtuo Warehouse Storage Heavy Duty Pallet Racking with Wire DeckingHeavy Duty Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Features: 1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity prevents compression damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
Parameters:Loading Capacity:Up to 4,500 kgs UDL/level
Racking Height:Up to 11,000mm
Racking Depth:700-1200mm
Beam Length:Up to 3600mm
Racking Finish:Powder Coated Finish or Galvanised Finish for Post & Bracing.
Technology for TrustWe deliver high quality products in a short time period and offer flexible contracts for our customers. We consistently uphold these contracts and are trusted by our customers. 1) Quality ControlWe strictly monitor the stretching strength of our wire rods as well as the general quality of both our wire rods and our sheet metal materials. 2) ManufacturingOur wire mesh is made by a Swiss-made automatic multi-point welding machine. The bottom section of our pallets (mesh, steel reinforcement, and legs) are produced on an automated line. Through the mechanization of our facilities we deliver consistently high quality products. 3) InspectionEach individual piece is inspected to insure there are no problems with assembly or breaking down processes. Only those which pass inspection are sent on for surface treatment and to the processing area for finishing and delivery to customers. 4) Rush Delivery OptionsWe carry out production at our factories according to customer needs. By doing so, we can pass on savings to the customer and offer a faster delivery speed. We are flexible and can also accommodate custom sizes and small lot production. Welcome to Jintuo!!Any more details, please feel free to contact me! Contact Information:CasyTel: 0086-025-85363177, 0086-13851406693Fax: 0086-025-86109278Features | 1. Pallets can be located, accessed and moved individually. 2. Rapid handling of almost all types of palletized goods. 3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. 5. Strength and rigidity prevents compression damage to goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. |
Load Capacity & Dimension | 1. Loading capacity: 500-4, 000 kg UDL/beam level. 2. Height: 1, 000-11, 000mm 3. Depth: 400-1, 500mm 4. Length: 1, 500-3, 300mm 5. Special sizes also available to specific storage needs. |

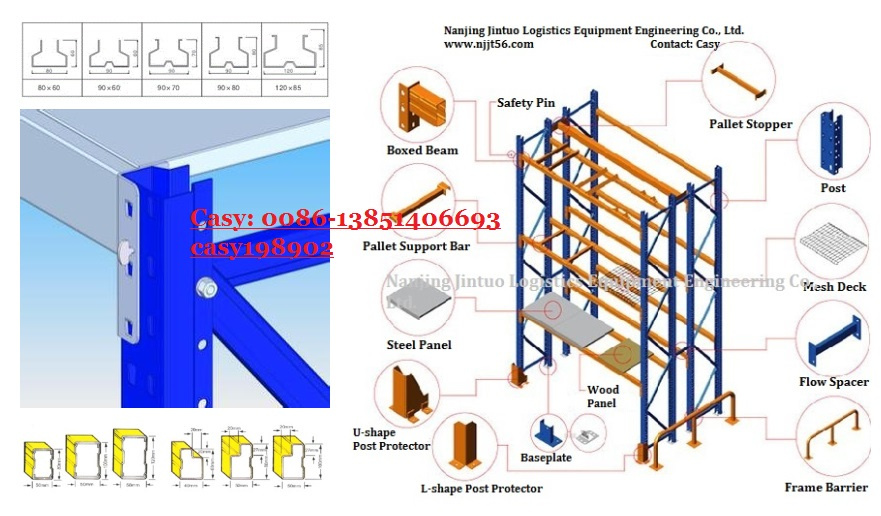

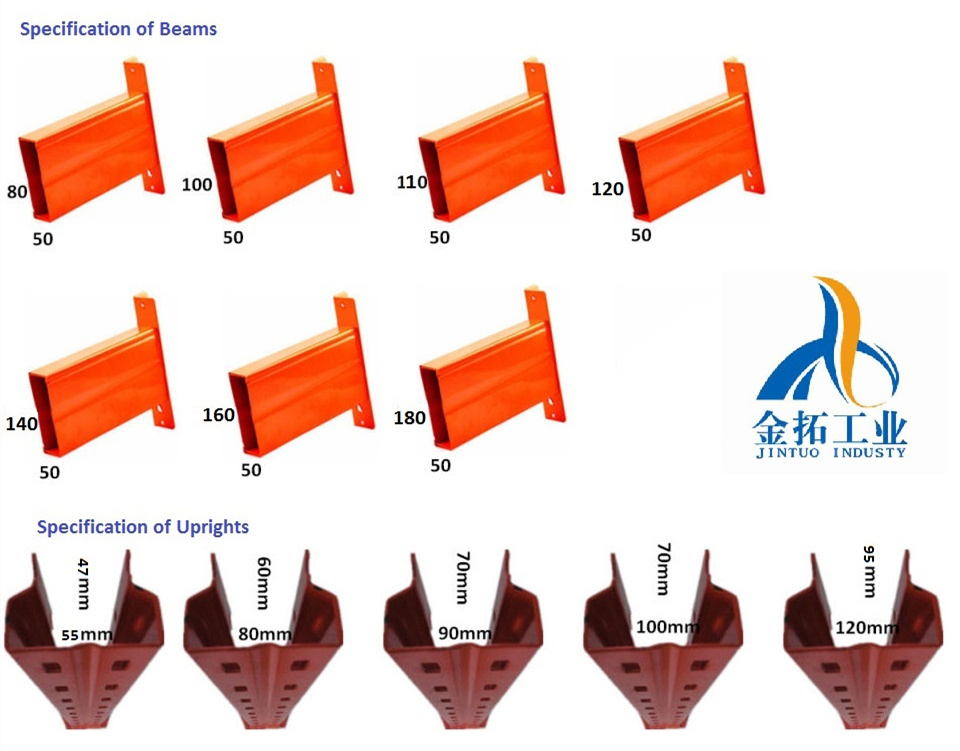

Main Parts Specification | 1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Boxed beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
Material | High-quality steel from big steel company in China |
Finish | High-quality Powder Coating |
Delivery | Within 25 days for ordinary order quantity. Big production capacity allows us to make a quick delivery. |
Nanjing Hengtuo Storage Equipment Co., Ltd. is an enterprise who always commits herself to develop convenient logistics equipment and efficient storage equipment. Our goal is to build a leading company in logistics. The enrollment of our company capital is more than USD 140, 000 and the total investment is over USD 2, 700, 000. We have customers from all over the world, such as southeastern Asia, Japan, Europe, Africa and so on.
Our company covers an area of over four hectares with a building space of over 5800 square meters. We have more than 160 staff, among whom more than 10 people are professional senior engineers. Based on the foreign advanced technology and combining Chinese storage equipment with features of automatic production line, we have developed
1) Logistics containers, such as a variety of storage cages, pallets and packing materials;
2) a series of rack products such as Install-able Assemble Racks, Through Type Racks, Supermarket Racks, Attic Type Racks, Flow-through Racks,;
3) Station Equipment: Pallets, Metal Boxes, Tool Cabinets, Case Racks, Trucks, Stacking Frames;
4) Handing Equipment: Pallet Truck, Trolley, and Handcart.
Our products are widely used in exhibitions, supermarkets, companies, banks, hospitals, factories, libraries, warehouses and so on.
We insist on the scientific management principles: "Live with best quality and develop with good reputation". Emphasizing on quality and reputation is our weapon to keep up with the status in this field.
We will be glad to provide good products and perfect service to you and welcome your visit and cooperation.
