| Prod Model: |
pallet rack |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Plastic Spray or Baked Paint Finishing |
| Color: |
as Required |
| Pitch: |
75mm |
| Feature: |
Corrosion Protection |
| Connecting Way: |
Bolted |
| Operation: |
by Forklift or Stacker |
| ODM: |
Yes |
| OEM: |
Yes |
| Type Of Company: |
Manufacturer |
| Loading Port: |
Nanjing |
| Material: |
Steel |
| Structure: |
Rack |
| Serviceability: |
Common Use |
| Mobility: |
Adjustable |
| Closed: |
Open |
| Development: |
New Type |
| Weight: |
up to 4500kg |
| Height: |
Selective |
Product Description

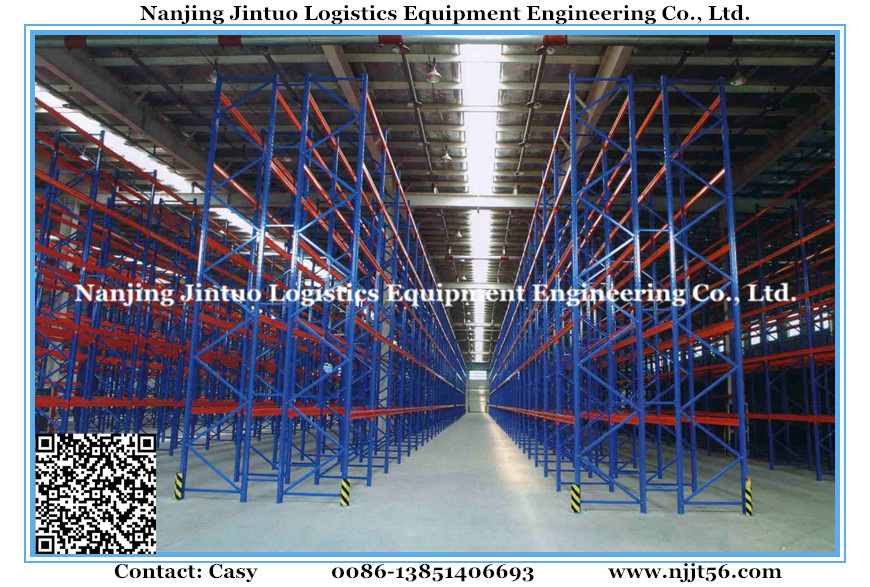

Heavy Duty Supermarket & Warehouse Pallet Rack
Heavy Duty Rack/ Beam Racking is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Features:
1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity prevents compression damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
Parameters:
Loading Capacity: Up to 4, 500 kgs UDL/level
Racking Height: Up to 11, 000mm
Racking Depth: 700-1200mm
Beam Length: Up to 3600mm
Racking Finish: Powder Coated Finish or Galvanised Finish for Post & Bracing.
For a quick price, please answer following questions:
1. The CAD drawing of the warehouse (if available)
2. Size (Width, Depth, Height)
3. How many loads/levels
4. Quantity
5. Port of destination (for a CFR or CIF price basis)/ or FOB Shanghai
6. Loading capacity of each layer
Contact information
Name: Casy
Tel: (+0086)-13851406693, (0086)-025-85363177
Fax: 0086-025-86109278
Frame | Height (2-13m) | Depth (600-1,400mm) |
| Upright section: 80x60; 90 x 70; 100 x 65; 120 x87mm |
| Thickness: 2.0/2.3/2.5/3.0mm |
| Beam | Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm |
| Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm |
| Thickness: 1.4--1.5mm |
| Load capacity | 1-4Tons/Layer |
| Others | - Pitch: 75mm
- Delivery time: 14-20days
- Payment term. T/T or L/C at sight
- Necessary accessories: free(bolts & nuts, base plate, etc)
- Packing: stretch film & carton
- Surface treatment: powder coated, galvanization
- Production capacity: 50,000T/month
- Available in various colors/specifications/sizes |
Nanjing Hengtuo Storage Equipment Co., Ltd. is an enterprise who always commits herself to develop convenient logistics equipment and efficient storage equipment. Our goal is to build a leading company in logistics. The enrollment of our company capital is more than USD 140, 000 and the total investment is over USD 2, 700, 000. We have customers from all over the world, such as southeastern Asia, Japan, Europe, Africa and so on.
Our company covers an area of over four hectares with a building space of over 5800 square meters. We have more than 160 staff, among whom more than 10 people are professional senior engineers. Based on the foreign advanced technology and combining Chinese storage equipment with features of automatic production line, we have developed
1) Logistics containers, such as a variety of storage cages, pallets and packing materials;
2) a series of rack products such as Install-able Assemble Racks, Through Type Racks, Supermarket Racks, Attic Type Racks, Flow-through Racks,;
3) Station Equipment: Pallets, Metal Boxes, Tool Cabinets, Case Racks, Trucks, Stacking Frames;
4) Handing Equipment: Pallet Truck, Trolley, and Handcart.
Our products are widely used in exhibitions, supermarkets, companies, banks, hospitals, factories, libraries, warehouses and so on.
We insist on the scientific management principles: "Live with best quality and develop with good reputation". Emphasizing on quality and reputation is our weapon to keep up with the status in this field.
We will be glad to provide good products and perfect service to you and welcome your visit and cooperation.
