| Prod Model: |
HT01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Plastic Spray or Baked Paint Finishing |
| Color: |
as Required |
| Pitch: |
75mm |
| Feature: |
Corrosion Protection |
| Connecting Way: |
Bolted |
| Operation: |
by Forklift or Stacker |
| ODM: |
Yes |
| OEM: |
Yes |
| Type Of Company: |
Manufacturer |
| Loading Port: |
Nanjing |
| Material: |
Steel |
| Structure: |
Rack |
| Serviceability: |
Common Use |
| Mobility: |
Adjustable |
| Closed: |
Open |
| Development: |
New Type |
| Weight: |
up to 4500kg |
| Height: |
Selective |
Product Description

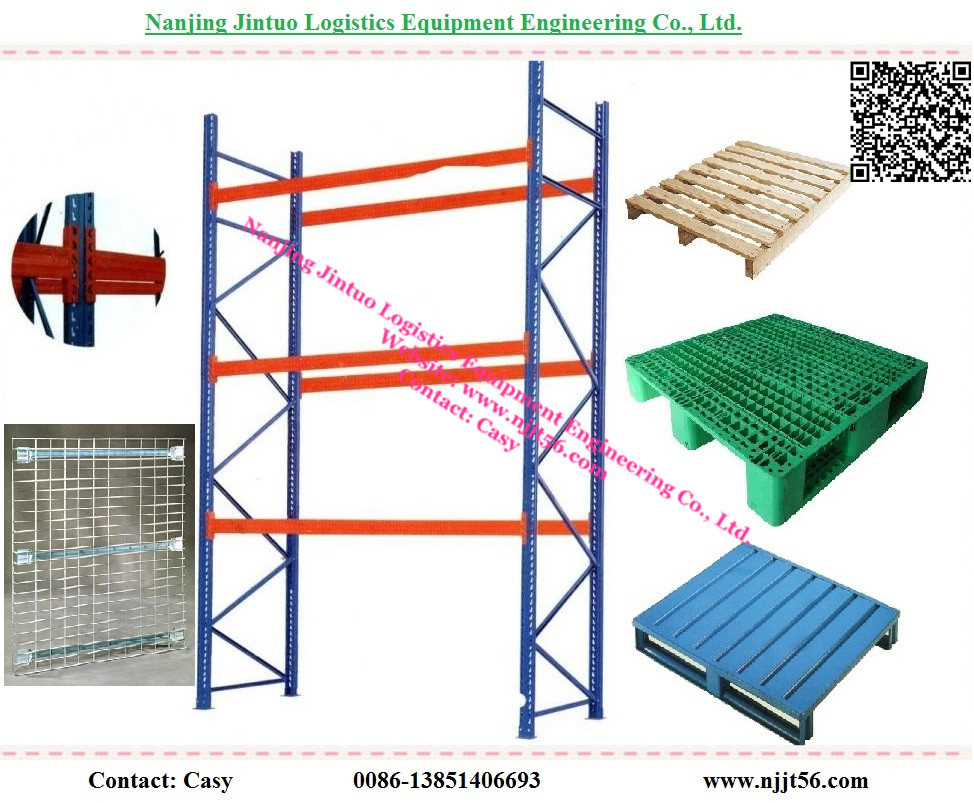

Heavy Duty Storage Pallet Shelf for Industrial Warehouse
Heavy Duty Pallet Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Features:
1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity prevents compression damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
Parameters:
Loading Capacity:Up to 5,000 kgs UDL/level
Racking Height:Up to 11,000mm
Racking Depth:700-1200mm
Beam Length:Up to 3600mm
Racking Finish:Powder Coated Finish or Galvanised Finish for Post & Bracing.
FAQ
1. Q: Do you have your own manufacture Industry?
A: Yes. We are a factory. We are specialized in storage rack systems.
2. Q: I don' have drawing or picture available for th custom products, could you design it for me?
A: Yes, we can make the best suitable design for you but do need to know the details - such as
a) dimension b) loading capacity c)stackability d)operation environment
3. Q: What is the raw material of your products?
A: Mos of the raw material is Q235. Other steel is also available to clients' requirements.
4. Q: What is the term of payment?
A: As general, 30% T/T down payment and balance before delivery.
5. Q: What is a delivery time?
A: It depends on the order quantity and racking types. Mostly, it's within 25 days.
6. Q: Which port will be used as loading port?
A: Shanghai port.
7. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your inquiry, you will get the latest information on time.
8. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
9. Q: Is Galvanized Finish available for pallet racks?
A: Yes. Pallet raking posts and bracings are available with galvanized finish.
10. Q: How can I get your quick quotation on my pallet racking project?
A: As different clients and projects have different needs of racking dimensions and specification, as general, for quick quotation, we need to know following information.
For a quick price, please answer following questions:
1. the CAD drawing of the warehouse (if available)
2. size (Width, Depth, Height)
3. How many loads/levels
4. Quantity
5. Port of destination (for a CFR or CIF price basis)/ or FOB Nanjing
6. Laoding capacity of each layer
Contact information
Name: Casy
Tel: (+0086)-13851406693
(0086)-025-85363177
| Features | 1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity prevents compression damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| Load Capacity & Dimension | 1. Loading capacity: 500-4, 000 kg UDL/beam level.
2. Height: 1, 000-11, 000mm
3. Depth: 400-1, 500mm
4. Length: 1, 500-3, 300mm
5. Special sizes also available to specific storage needs. |
| Main Parts Specification | 1.Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.
2.Boxed beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
3.Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality steel from big steel company in China |
| Finish | High-quality Powder Coating |
| Delivery | Within 25 days for ordinary order quantity. Big production capacity allows us to make a quick delivery. |
Nanjing Hengtuo Storage Equipment Co., Ltd. is an enterprise who always commits herself to develop convenient logistics equipment and efficient storage equipment. Our goal is to build a leading company in logistics. The enrollment of our company capital is more than USD 140, 000 and the total investment is over USD 2, 700, 000. We have customers from all over the world, such as southeastern Asia, Japan, Europe, Africa and so on.
Our company covers an area of over four hectares with a building space of over 5800 square meters. We have more than 160 staff, among whom more than 10 people are professional senior engineers. Based on the foreign advanced technology and combining Chinese storage equipment with features of automatic production line, we have developed
1) Logistics containers, such as a variety of storage cages, pallets and packing materials;
2) a series of rack products such as Install-able Assemble Racks, Through Type Racks, Supermarket Racks, Attic Type Racks, Flow-through Racks,;
3) Station Equipment: Pallets, Metal Boxes, Tool Cabinets, Case Racks, Trucks, Stacking Frames;
4) Handing Equipment: Pallet Truck, Trolley, and Handcart.
Our products are widely used in exhibitions, supermarkets, companies, banks, hospitals, factories, libraries, warehouses and so on.
We insist on the scientific management principles: "Live with best quality and develop with good reputation". Emphasizing on quality and reputation is our weapon to keep up with the status in this field.
We will be glad to provide good products and perfect service to you and welcome your visit and cooperation.
