| Prod Model: |
HGLS-PRF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
700mm-3300mm |
| Depth: |
600mm-1200mm |
| Color: |
Blue and Yellow Color |
| Layout Drawing: |
Freely Supply |
| 3D Picture: |
Free Supply |
| Upright: |
80mm, 90mm, 100mm and 120mm |
| Box Beam: |
80*50,100*50,120*50,140*50 |
| Screws: |
Included |
| Safety Pin: |
Included |
| Installation: |
Could |
| Material: |
Steel |
| Structure: |
Rack |
| Mobility: |
Adjustable |
| Height: |
5-15m |
| Closed: |
Open |
| Development: |
New Type |
| Serviceability: |
Common Use |
| Weight: |
500-1500kgs |
Product Description

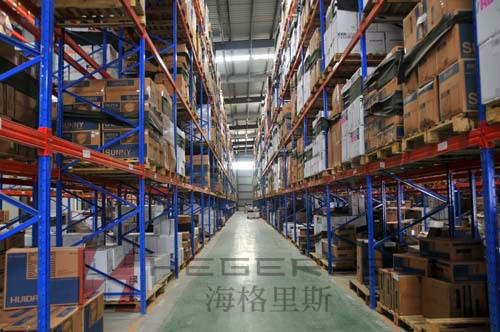

High quality selective pallet rack
Pallet Racking;Pallet Racking System;Pallet Rack
Product description:
Introduce:
selective pallet rack is the best solution for warehouse where it is necessary to keep a wide variety of articles in pallets.
It provides direct access to all pallets for 100% accessibility and good stock rotation. Pallets can be located, accessed and move individually providing rapid handling of palletized goods. It provides easy beam adjustment and accommodates variable pallet heights. Lower level pallets can be located on the floor for picking purposes, which reduces structure costs. Alternatively additional shelving beams can be added for lower level picking.
Advantages:
1, Direct access to all articles;
2, Flexibility in the height and depth of the loads;
3, Extension is possible at any time;
4, Ideal for all types of forklifts;
5, Variable in accessories;
6, Levels are adjustable per 50mm and 75mm in height.
1. The upright are punched by automatic machine, there are 13 faces for each one. This special structure could make sure it could bear more loading.| No | size |
| 1 | 80*60 |
| 2 | 90*68 |
| 3 | 100*68 |
| 4 | 120*95 |
2. Box beam: Welded by automatic machine, which could prevent the human errors.| No | Size |
| 1 | 80*50 |
| 2 | 100*50 |
| 3 | 120*50 |
| 4 | 140*50 |
| 5 | 160*50 |

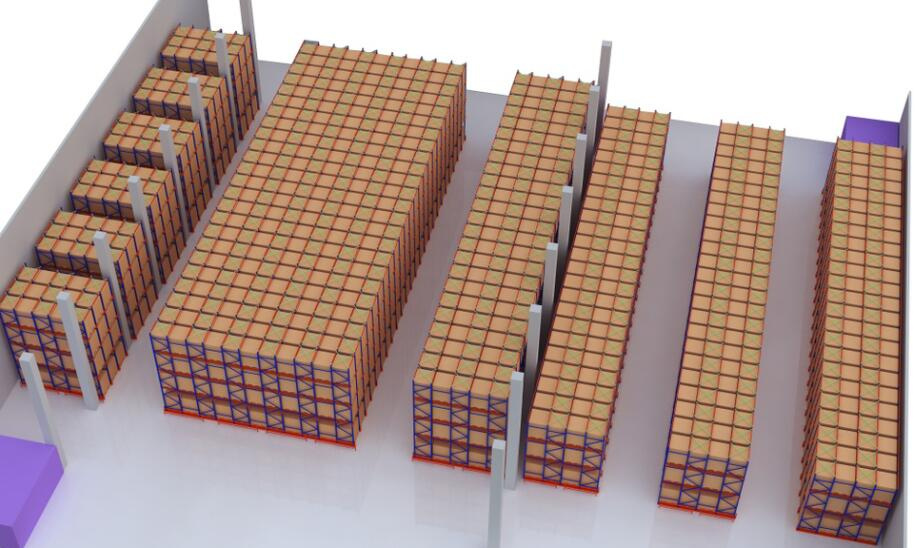

3. Service: We have design department, could supply layout drawing and 3D picture for your project freely.

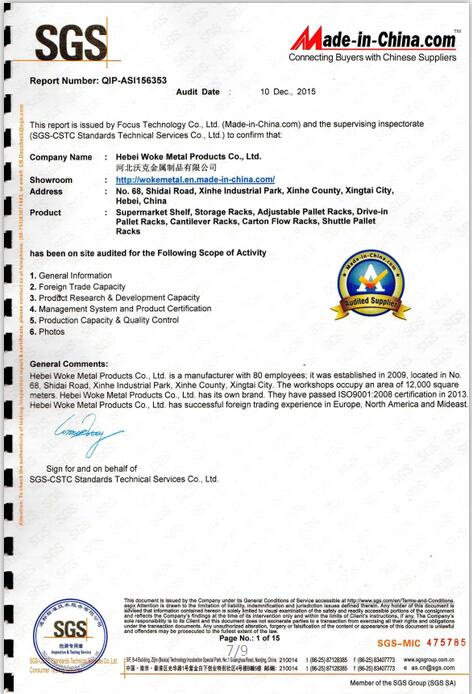

4. Quality warranty: it is 12 month after installation and tested in the client warehouse.5. Certificate
Hebei Woke Metal Products co Ltd founded in 1996, the headquarters and two sales company is located in Shijiazhuang hebei province, the production base is located in Hebei Xinhe industrial zone. We are partisan council unit of the China Storage & Distribution association/Hebei province modern logistics association and Hebei province e-commerce association. "HEGERLS" is ours registered trademark.
We can supply project plan design, supermarket and storage equipment and facilities installation, operation and management personnel training, supply series products, business planning and after-sales service, e-commerce etc. Our products and services has covered nearly 30 domestic provinces, cities and autonomous regions, products are exported to Europe, America, Middle East, Latin America, southeast Asia and other countries and regions. Annual sales of nearly 230 million yuan. More than 300 staffs, own production base and experimental centre, equipment research and development team, installation and after-sales service team, with senior technicians and senior engineer titles nearly 60. Company production base has the world advanced production assembly line 48.10 national patents of radio shuttle cart, stacker, mobile shelves, won the SGS, TUV certificate and ISO9001 certification.
In recent years, completed the domestic projects including: Sinopec storage project, Shanxi YunCang storage & distribution project, JiLin Long-Mart storage and distribution center project, Anguo Zhengtai Storage & distribution center project, Beiguo Goup supermarket chains, Guoda chain convenience stores, Hebei province expressway service area series of convenience stores and distribution centers, Junlebao dairy warehousing projects, etc.
Overseas projects: Sweden SwedMart warehouse project, Chile fisheries association Oscar refrigeratory AS/RS projects, Algeria FACTO storage projiects, Thailand JM Group AS/RS projects, FX Group South Africa AS/RS projects, AALM company UAE AS/RS projects. Automatic sorting stacker in FX Group South Africa AS/RS projects is domestic initiative within international leading level.
