| Prod Model: |
XTQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sp1o |
| Description: |
Gloview Portable Interactive Whiteboard |
| Size: |
40-150'' |
| Weight: |
0.4kgs |
| Package: |
32 X 35 X 7.5cm |
| Calibration: |
Automatic Calibration |
| Technology: |
Image Analysis Technology |
| Certificate: |
CE, FCC |
| OEM: |
Available |
| Accessories: |
Infrared Pen, Laser Pointer, Mount, USB Cable |
| Brand: |
Tong Yang |
Product Description

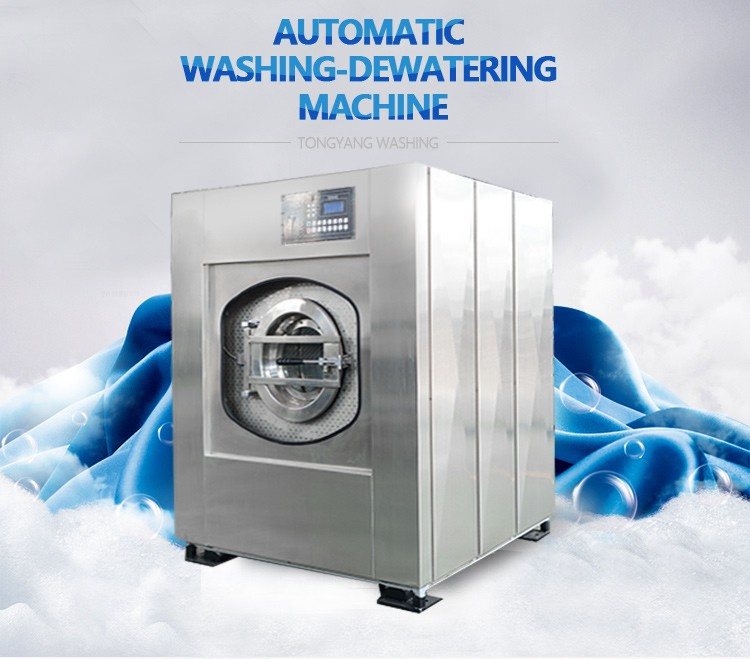

Automatic washer, Automatic-fully washer extractor, Automatic-fully washing and dewatering machine, Automatic-fully washing and extracting machine, Automatic-fully washer, Automatic washing machine, Washer extractor, Laundry washing machine, Laundry washer extractor, Laundry equipment, Marine washer extractor
Main features:
1. Laundry washer extractor Fully automatic, microcomputer-controlled.
2. Industrial washer extractor has high quality stainless steel, good appearance, long life.
3. Microprocessor, freely programmable, 5 standard programmes, 25 possible programmes.
4. Full suspension shock sructure, suspension, combination of shock absorbers and springs for maximum absorption, need no excessive foundations.
5. Imported bearing, precise and durable.
6. Fixed support for long-distance transportation, avoid shaking damage during transit.
7. Laundry washer extractor has high quality inverter system, easily realize washing and dehydration frequency stepless adjusting.
8, Built-out bearing lubrication, simple operation, convenient maintenance.
9, Safety door interlock system.
10, Multiple sealing system, oil sealing, water sealing, stainless steel sealing.
| Type | XTQ-15H | XTQ-20H | XTQ-30H | XTQ-50H | XTQ-70H | XTQ-100H |
| Min Capacity | 10kg | 15kg | 20kg | 35kg | 50kg | 70kg |
| Max Capacity | 15kg | 20kg | 30kg | 50kg | 70kg | 100kg |
| Diameter | 636mm | 700mm | 900 mm | 1080 mm | 1080 mm | 1200 mm |
| Diameter deepness | 470 mm | 500 mm | 500 mm | 575 mm | 730 mm | 856 mm |
| Volume | 149 L | 185 L | 320 L | 528 L | 668 L | 968 L |
| High | 1300 mm | 1400 mm | 1635 mm | 1800 mm | 1800 mm | 2030 mm |
| Length | 1000 mm | 1050 mm | 1400 mm | 1610 mm | 1760 mm | 1990 mm |
| Width | 1240 mm | 1260 mm | 1460 mm | 1550 mm | 1550 mm | 1690 mm |
| Washing rotate speed | 45r/min | 42r/min | 36 r/min | 35 r/min | 33 r/min | 31 r/min |
| Uniformity speed | 90 r/min | 85 r/min | 80 r/min | 75 r/min | 70 r/min | 65 r/min |
| Mid speed | 450 r/min | 420 r/min | 420 r/min | 380 r/min | 350 r/min | 310 r/min |
| High speed | 890 r/min | 820 r/min | 780 r/min | 760 r/min | 680 r/min | 680 r/min |
| Motor | 1.5Kw | 1.5Kw | 3 Kw | 4 Kw | 5.5 Kw | 7.5 Kw |
| Draining valve | Φ 70mm | Φ 70mm | Φ 100mm | Φ 100mm | Φ 100mm | Φ 140mm |
| Hot water pipe | 3/4″ | 3/4″ | 3/2″ | 3/2″ | 3/2″ | 3/2″ |
| water pipe | 3/4″ | 3/4″ | 3/2″ | 3/2″ | 3/2″ | 3/2″ |
| Steam pipe | 3/4″ | 3/4″ | 1″ | 1″ | 1″ | 1″ |
| Weight | 626kg | 850kg | 1200kg | 1435kg | 1956kg | 2464kg |
Fully automatic tumble dryer:
1. Automatic-fully washing and extracting machine, drum and body all made of 304 stainless steel, easy to operate and it gathers the washing and extracting these two functions together.
2. Steam or electrical heating.
3. Its capacity is from 15kg to 100kg.
4. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and proof-shock.
5. Adopt the international latest complete suspension structure to reduce shock, replace the original shock design by liquid pressure buffer with springs, it can ensure an ideal proof-shock effect even on higher floors.
6. It is with a drum without compartment and single door structure convenient to loading or unloading, and reduces the labor intensity and improves the clean level.
7. With fully-closed and rear-drainage structure, it is good for environmental protection, the drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.
8. The new micro-computer control washer-extractors offer our customers with easy programming, and tremendous energy savings compared. Owners will be impressed with the water savings they achieve and the benefits to their operation. The easy-to-use controls and flexibility of the pre-programmed cycles will be a hit with customers. They can add an extra wash, rinse or choose both to create a personalized wash cycle based on their individual needs. Customers will appreciate the large led display that leads the user through the washing process.
9. The automatic-fully washer extractor are usually used for hotel, restaurant, school, hospital, counterpane factory and laundry house, etc.
10. With ce and iso9001 certificates.

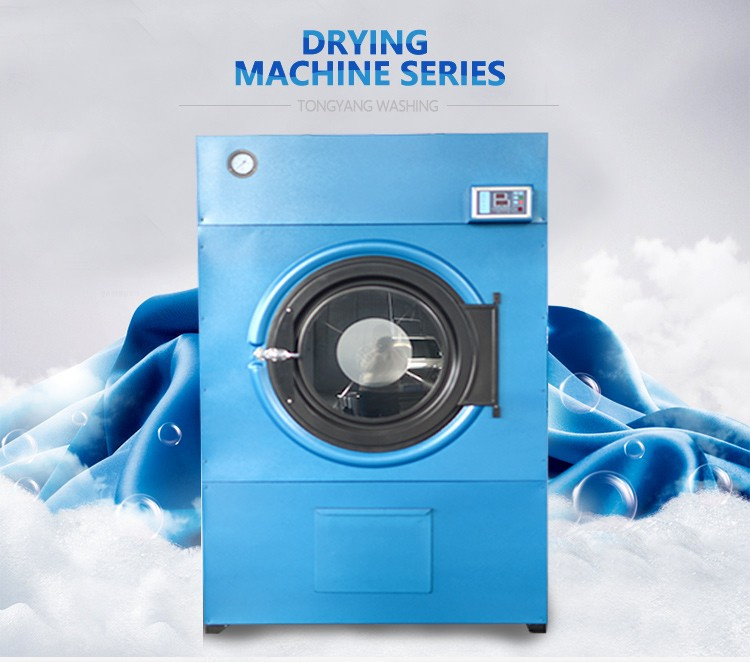

Tumble Dryer:
1, shell and drum in stainless steel, prevent the pollution of corrosion to fabric.
2, the heat-exchanger looks like wings, high thermal efficiency, long service life.
3, large plush collection network, collect fluff easily and quickly.
4, large door, easy loading and unloading, opens 180° .
5, optimal design of cooling fan, with the best heat dissipation, wind speed.
6, fully automatic computer control the temperature, temperature control devices, over-temperature protection device.
7, heating: Electrical, steam, gas.
8, easy accessibility to the vital parts, easy service, quick replacement of the belt.
9. Its capacity is from 15kg to 150kg.
10. Ce and iso9001 certificates.
Specification:
| Type | SWA801-10 | SWA801-15 | SWA801-30 | SWA801-50 | SWA801-70 | SWA801-100 | SWA801-120 | SWA801-150 |
| Max. capacity(Kg) | 10 | 15 | 30 | 50 | 70 | 100 | 120 | 150 |
| Drum dimensions(mm) | Φ 640× 560 | Φ 760× 560 | Φ 950× 860 | Φ 1160× 1000 | Φ 1260× 1000 | Φ 1320× 1100 | Φ 1500× 1080 | Φ 1600× 1160 |
| Drum speed(r/min) | 46 | 35 | 32 | 26 | 26 | 30 | 28 | 27 |
| Steam pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Motor Power (Kw) | 0.55 | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Fan Power (Kw) | 0.55 | 0.75 | 1.1 | 1.5 | 1.5 | 1.5*2 | 1.5*2 | 2.2*2 |
| Overall dimension(mm) | 700× 1100× 1340 | 920× 1200× 1650 | 1100× 1450× 1900 | 1320× 1700× 2200 | 1400× 1700× 2300 | 1500× 1800× 2360 | 1620× 1800× 2360 | 1720× 1900× 2600 |
| Weight (Kg) | 250 | 313 | 396 | 512 | 600 | 672 | 875 | 966 |

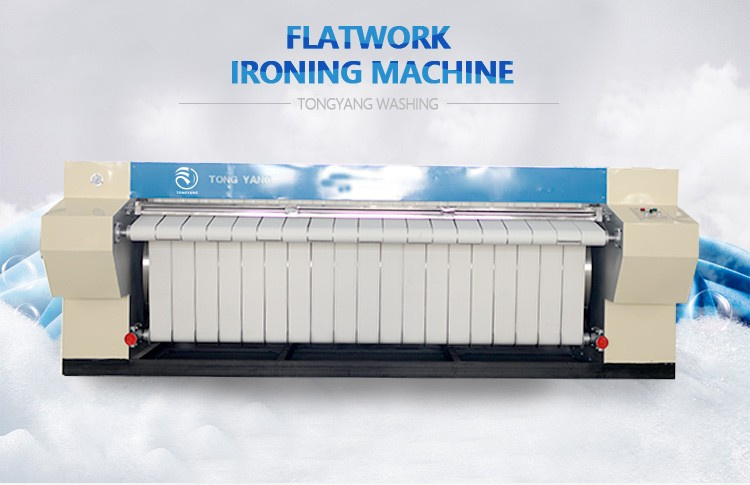

Flatwork Ironer:
This ironer has the advantages of high speed, high efficiency, low cost, safe, high reliability and so on.
1. For bedsheets, quilts, tablecloth, towel, curtain, bath towel, etc.
2, Large diameter(Φ 800mm)roller drum, stainless steel, surface is smooth.
3, Frame and auxiliary, high-quality steel carbon structures, strong and durable.
4, Variable frequency, variable speed, according to fabric, moisture, steam supply, etc.
5, Simple control with Start/Stop buttom.
6, Sealed rotary joints, prevent leakage, safety and reliability, save energy.
7, Three-phase electrical system, overload protection, voltage and short circuit protection, emergency stop switch.
8, The fence and travel switch in the input part, reduce fatigue, misuse and the risk.
9. With CE and ISO9001 certificates.
| Type | YPA I-1800 | YPA I-2500 | YPA I-2800 | YPA II-2500 | YPA II-2800 | YPA II-3000 | YPA III-3000 |
| Ironing scope(mm) | ≤ 1800≤ 3 | ≤ 2500≤ 3 | ≤ 2800≤ 3 | ≤ 2500≤ 3 | ≤ 2800≤ 3 | ≤ 3000≤ 3 | ≤ 3000≤ 3 |
| Tumbler specifiation(mm) | Φ 800× 1800 | Φ 800× 2500 | Φ 800× 2800 | Φ 800× 2500 | Φ 800× 2800 | Φ 800× 3000 | Φ 800× 3000 |
| Steam pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Ironing sreed of fabric(m/min) | 0-7 | 0-7 | 0-7 | 0-15 | 0-15 | 0-15 | 0-30 |
| Admission hole diameter(mm) | 25 | 25 | 25 | 28 | 32 | 40 | 60 |
| Steam consumption | 50 | 70 | 80 | 110 | 150 | 180 | 300 |
| Motor Power(Kw) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 |
| Overall dimension(mm) | 2800× 1550× 1500 | 3500× 1550× 1500 | 3800× 1550× 1500 | 3550× 2500× 1500 | 3850× 2500× 1500 | 4050× 2500× 1500 | 4050× 3430× 1500 |
| Drum quantity | 1 | 1 | 1 | 2 | 2 | 2 | 3 |
| Weight (Kg) | 1011 | 1100 | 1136 | 1950 | 2200 | 2479 | 3460 |
Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
We can provide the professional proposal for you according to your situation.
Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
Company information:
1. Guangzhou Jinzhilai Washing Equipment Co.,Ltd was set up in 2006,we are a leading and professional laundry equipment manufacturer in China.
2. Our main products: Industrial washing machine, tumble dryer, ironing machine, folding machine,dry cleaning machine, etc.
3. Our products are popularly used in hotels,hospitals,restaurants,schools,laundries, etc.
FAQ
Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.
Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can prove that.
Q3. Our power supply is 415v, 3phase, 50hz, can you provide it?
A: Yes,We can customize the power supply for you.
Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.
Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
Taizhou Tongjiang Washing Machinery Factory, founded in 1996, is located in Taizhou Senbei Industrial Park. After twenty years of development, it has become the leading manufacturer in apparel industry of washing equipment in domestic. We have attained strict CE and ISO9001 Quality Management System Certification and own import and export license.
We have total factory space of approximately 26, 666 square meters with over 120 workers. We have complete processing devices including milling, shaping, boring, slotting, drilling, reaming and polishing, also possessing manufacturing procedures of flame cutting, hole piercing, cutting, pressing, bending and molding and large-scale spray painting equipment. All of these make Tongyang products rank the first class in regard of overall technology and manufacturing equipment.
In order to meet the needs of market expansion, we have focused on importance in technological innovation, upgrading and absorbing high quality experts with full efforts, so as to increasing R&D, and introduce new products which fill up domestic margin instead of importing.
Tongjiang Washing Machinery Factory mainly produces entire suspension type washing machine, industrial washer, hydro extractor, tumble dryer, flatwork ironer, washer extractor, folding machine, transport type carpet cleaning machine and finishing equipment and so on. The products are not only popular in hotels and restaurants, but also in hospitals, railways, troops, universities and colleges and some washing & dyeing industrials as well as in more than 30 countries in Southeast Asia, Americas, Europeans and South Africa. With beautiful features, durable performance and diverse varieties, our products has wined a leading status in the industry and received good reputation from oversea market,
Our factory has recently researched chlorine washing machine and foam washing machine, which filled up domestic spacing, instead of importing from America and Japanese. This settles the problems of importing in higher price and difficulty in finding spare parts for domestic latex products manufactures and printing factories.
"Technology innovation, works with realistic" is our manifesto, "Customer first and pursuing the best quality" is our pursuit. Tongjiang people are expecting all friends come and visit our factory.
Taizhou Tongyang Washing Machinery Co., Ltd. is specializing in producing industrial and commercial washing machines with various specifications available.
Our main products include fully-automatic washers and extractors, carpet washing machines, extracting machines, drying machines and ironing machines. These products are new in type and low in power consumption. They are widely used in various trades, such as textile, printing, dyeing, silk, garments and chemical industries, hotels, restaurants and hospitals.
Recently, our factory successfully developed a chlorine washing machine and a foam washing machine which filled up domestic blank. They can replace the ones we had always imported from the USA.
Our products have a ready market not only in China but also in Southeast Asia. We ensure superb quality and reasonable price. We take full responsibility of repair, replacement or refund if serious quality problems happen. All our products enjoy life-long service and all the spare parts for them are available.
You are welcome to visit our factory and order our products.
