| Prod Model: |
SKJ-560 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Workers Requirement: |
1-2 |
| Power: |
380V |
| Speed Adjustment: |
Yes |
| Speed: |
Max.17books/Min. |
| Automatic Grade: |
Semi-Automatic |
| Gluing Mode: |
Wheel Gluing Machine |
| Packaging Material: |
Paper |
| Glue Type: |
Hot Melt Adhesive |
| Application: |
Machinery & Hardware |
| Driven Type: |
Pneumatic |
Product Description

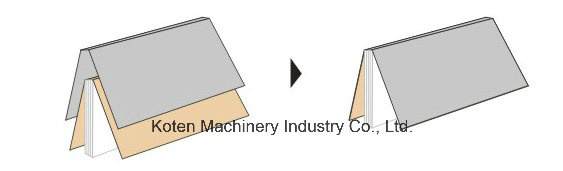

Video Checking.https://youtu.be/mgTH4bfGPEkProcess.

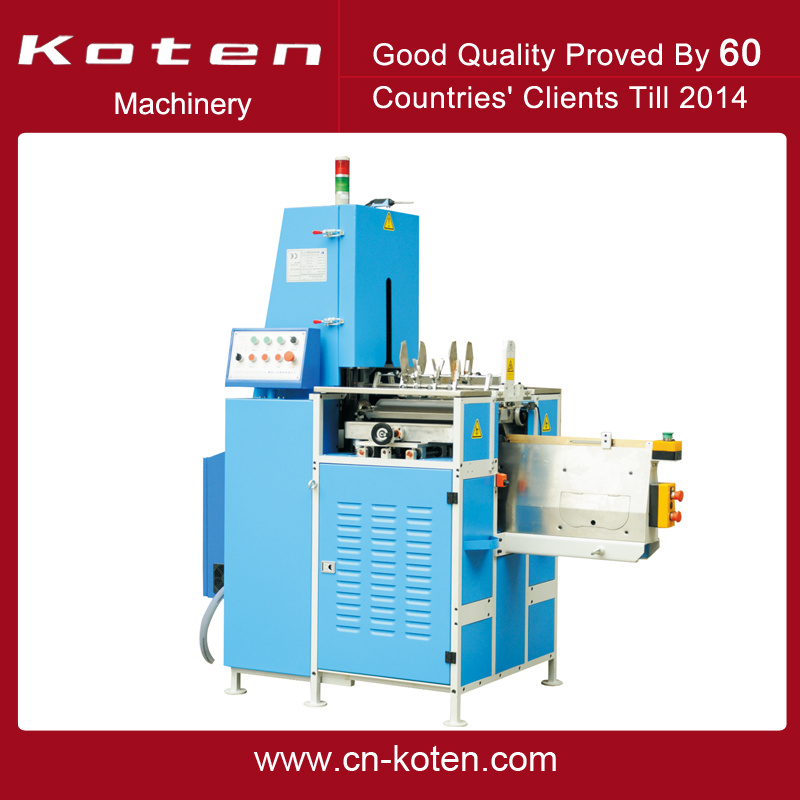

Introduction.This casing in machine is very suitable to the use on the covers of deluxe books. One or two persons operate will do. Operators should first place books
Cores and hulls before starting the machines. The pickup boards rise to drive book cores to automatically apply adhesive on both sides and
Cover them with hulls. Then operator can remove the books. The machines are reset to enter the next working state immediately. It is apply for
Deluxe books, notebooks, universal folders and operating processes for other hardback book cores. It is characteristic of simplicity,
Convenience and quickness in replacing specification of products. Both sides of book cores are applied with adhnsives, with reliable movement,
Applicable to large, medium and small batches of production.
Samples.
Main Specifications. | Model | SKJ-560 |

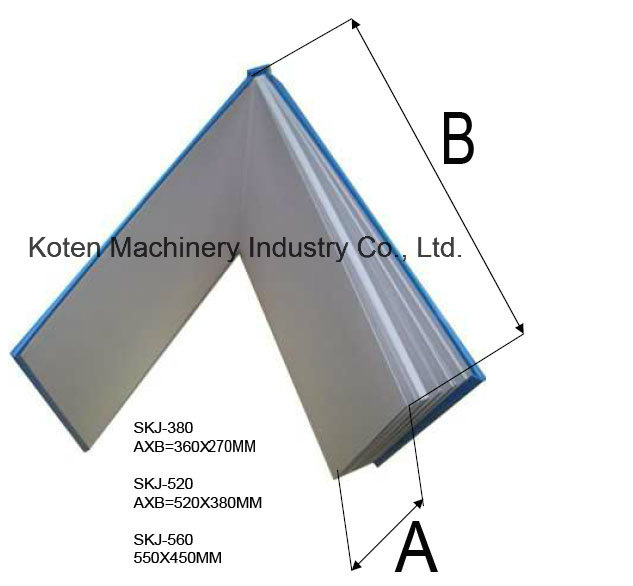

| Max. hard case chipboard size | 560x450mm |
| Min. hard case chipboard size | 90x60mm |
| Work speed | 7-17pcs/min |
| The book block thickness | 4-80mm |
| Voltage | 3P 380V 50HZ |
| Main power | 1.5KW |
| Machine weight | 580kg |
| Machine size | 2200x900x1950mm |
Packaging and Container Loading.

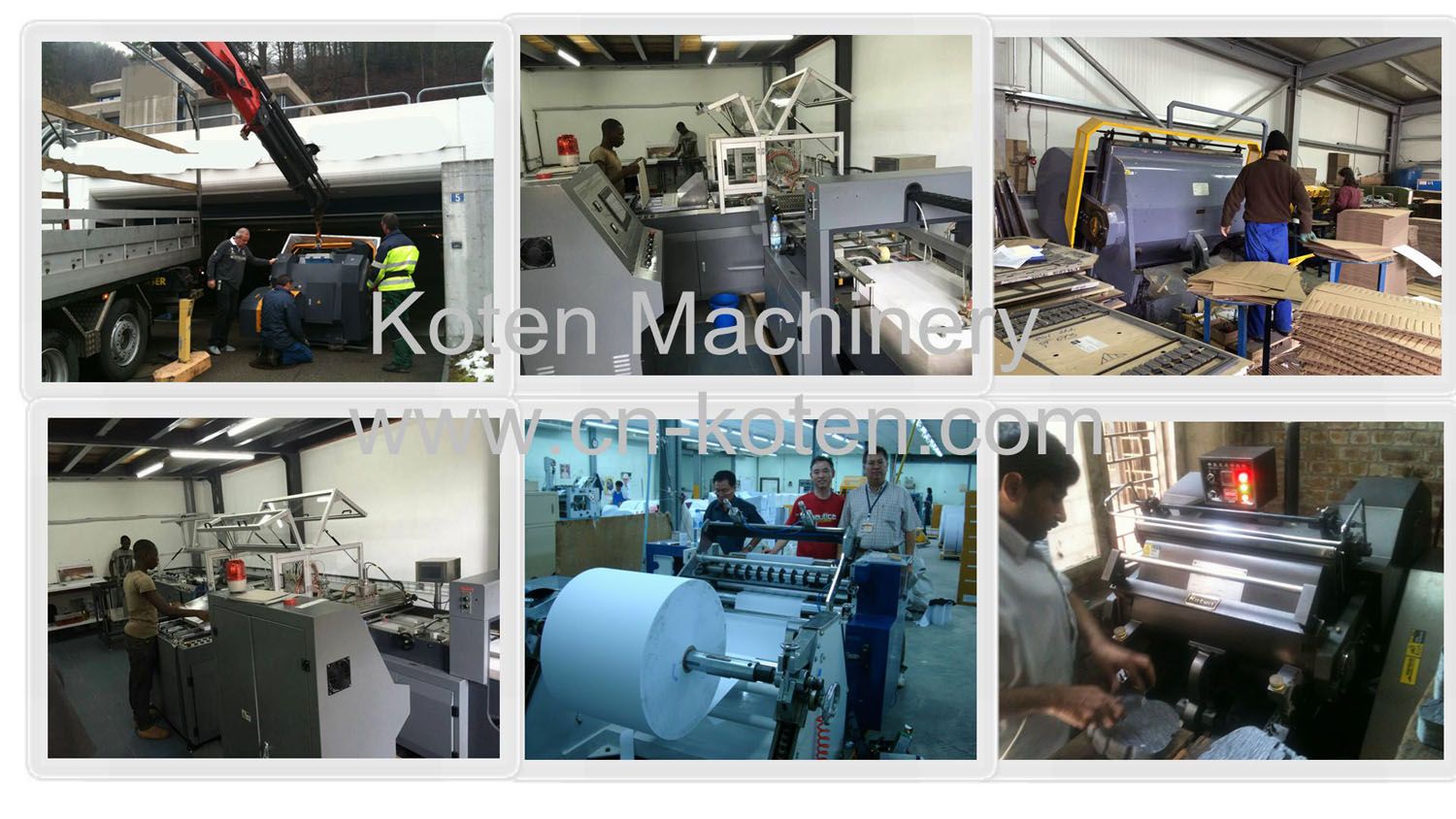

Koten Brand Machines In The Clients' Factory.
Koten Machinery Industry Co., Ltd. is specialized in manufacturing printing and packaging machineries in China. Especially focus on the finishing binding equipments to make notebooks, exercise books, or hardcover books, like Flexo. Ruling Machines, Exercise Book Making Line, Perfect Binding Machines, Book Sewing Machines, Saddle Stitching Machines, Paper Folding Machines, Three Knife Trimmer, etc.
Koten Machinery Company pays high attention to the increased oversea customers's different requirement from different countries, and help them to supply the right machines with steady quality, reasonable prices and excellent after sales service from China. And finish the all necessary equipments purchase to their factory usage or resell with satisfied.
Koten Machinery company extends some different industry area, like graphic equipments, adhesive label machines, and plastic machines. etc. With the responsible for our customers, Koten Machinery combined some superior suppliers for different types machines. It is worth to mention that most of the factories have more than 15 years experience for their own products. Each machine will be tested and controlled strictly by the quality management staffs before shipment.
"Koten" Brand machines has been proved with high quality by many countries customers, like Europ, Asia, South America Market, etc. And received high reputation from them. We are looking forward to your sincere cooperation and creat a flourish business relationship with each other!
