| Prod Model: |
BSK-450A |
| Bsk-450A: |
Case in Machine |
| Max Size: |
600*1000mm |
| Type: |
Paper Packaging Equipment |
| Automatic Grade: |
Automatic |
Product Description

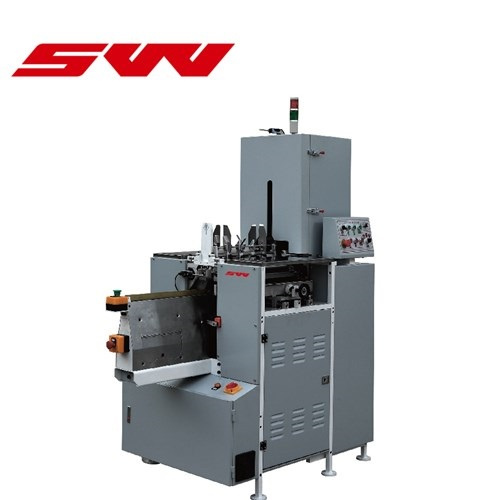

Hard Cover Book Case in Machine for Hard Cover Books Manufacturer It is used to make spine of hardcovers, notebook covers, calendars, hanging calendars, files, Irregular covers etc.BSK-450A Hard Cover Book Case in Machine for Hard Cover Books Manufacturer
Casing in machine is used for various hardcover books gluing and casing in, automatic positioning and gluing both sides of the book, make the casing in process simple and fast.
1. High efficiency
2. Easy operation
3. Safy and long working life
Casing in machine use for making the hardcover book ,noted book.easy operation and high precision ,the
machine has a cover guide system which Hold the book cover in place.The book block is feed through the front of the
machine on a fixed wing which has a push system that takes the book block to a moving wing,which transports it through
the gluing system.The glued book block is then fed into the book cover where the operator takes the completed book.
A foot petal activates the production cycle,which allows the operator to keep both hands on the book cover.The guides on
the machine allows for precise placement of the block into the book cover.This machine is ideal for on demand book
manufactures along with short to medium run productions.
| Model | BSK-450A | BSK-550A |
| Max book cover size | 360*250mm | 500*400mm |
| Min book cover size | 100*90mm | 120*120mm |
| Speed | 12-15 pcs/min | 6-10 pcs/min |
| Power | 380V/50Hz 1.5KW | 380V/50Hz 2.2KW |
| Weight | 280 KG | 500KG |
| Dimension | 1500*1100*1600mm | 2130*1200*2100mm |

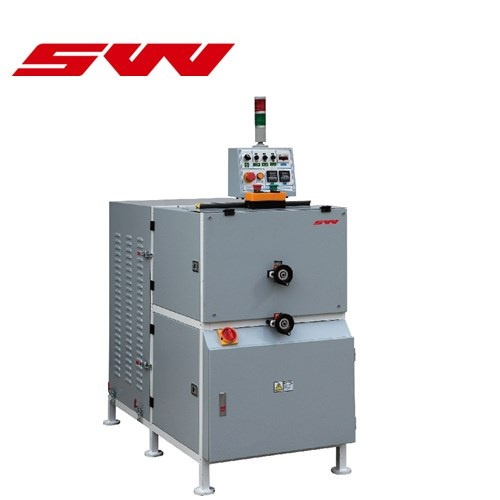

BYC-450/550 Book joint forming machine
The books are pressed immediately after casing-in and the joint is burnt-in at the same time. Pressure and temperature of the joint bars can be adapted to the binding material. Therefore the joint is formed extremely well and receives a perfect and permanent shape. Simple, versatile and friendly machine Hydraulic book press of 2 ton for even pressing of book Adjustable depth on joint formation Heated formers for perfect joint for mation Inter changeable guides for various applications. | Model | BYC-450 | BYC-550 |
| Max pressing width | 353 mm | 560 mm |
| Max pressing length | 300 mm | 450 mm |
| Max book thickness | 60mm | 60mm |
| Max pressure required | 6-8 pa | 6-8 pa |
| Creasing temperature | 60-100 °C | 60-100 °C |
| Weight | 280 KG | 500 KG |
| Dimension | 630*620*1550mm | 1100*950*1620mm |

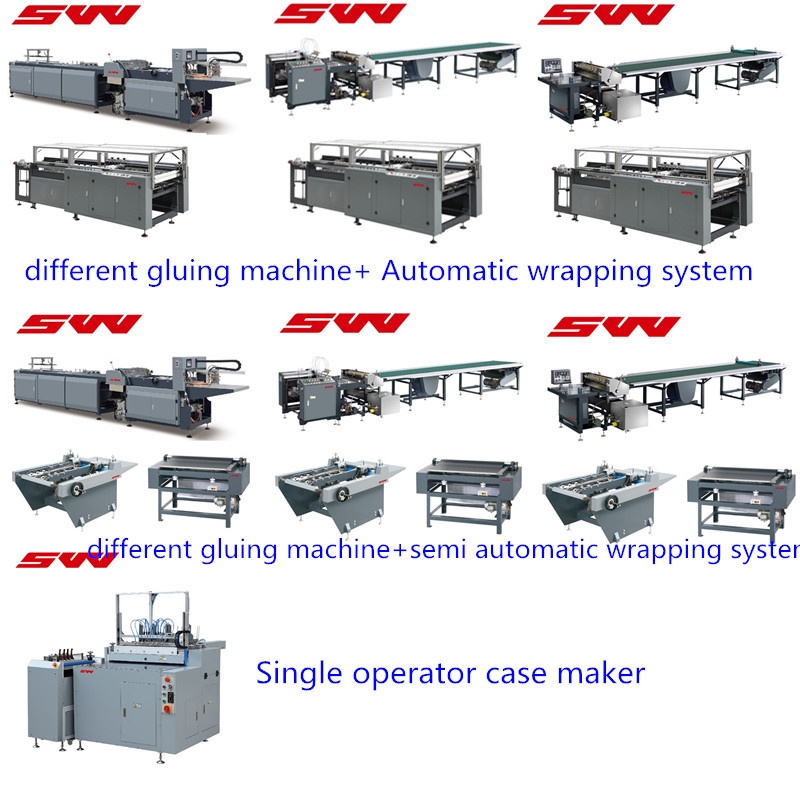

semi automatic book cover machine serials : Machine combind with two parts . Gluing unit and wrapping system As follow :
Spine cutter Advantage&Services
1.Has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2.Machines with good quality in one year, life-long maintenance.
3.Have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4.Has several senior, continuous innovation and reform, in order to ensure the quality of mechanical stability.
5.Undertake various non-standard machinery, solve the customers' requirements. About Xinwei company :
ZHEJIANG XINWEI MACHINERY Co., Ltd.Is an integrated high-tech enterprise setting research and development, manufacturing, sales, service as one.From the beginning, we always adhere to the management concept of "technological innovation and development, quality of survival"and set establishing an international high standard of packaging machine manufacturing system as the mission.Always listening to the clients" voice, meeting customer expectations-oriented, and in-depth researching and development, we have won numbers of national invention patents and the latest national standards as "the national high-tech enterprise", and passed
The ISO9001:2008 and CE certificate.The face of ever-changing, increasingly fierce competition in the domestic and overseas-market, We insist that the customer service concept, the idea of full joint development.And always played a role in the command center.For the purpose of the spirit:Saving space and labor for customers and Improving economic efficiency.
Contact Information:
ZHEJIANG XINWEI MACHINERY Co., Ltd.
Add:Building 9, B Area, Yunjiang Industrial Zone, NanBin, Ruian City,
Zhejiang Province, China
Tel:86-186-06672918 Fax:86-577-65576777
ZHEJIANG XINWEI MACHINERY Co., Ltd. is an integrated high-tech enterprise setting research and development, manufacturing, sales, service as one. From the beginning, we always adhere to the management concept of "technological innovation and development, quality of survival"and set establishing an international high standard of packaging machine manufacturing system as the mission. Always listening to the clients" voice, meeting customer expectations-oriented, and in-depth researching and development, we have won numbers of national invention patents and the latest national standards as "the national high-tech enterprise", and passed the ISO9001: 2008 and CE certificate.
The face of ever-changing, increasingly fierce competition in the domestic and overseas
Market, We insist that the customer service concept, the idea of full joint development. And always played a role in the command center. For the purpose of the spirit: Saving space and labour for customers and Improving economic efficiency.

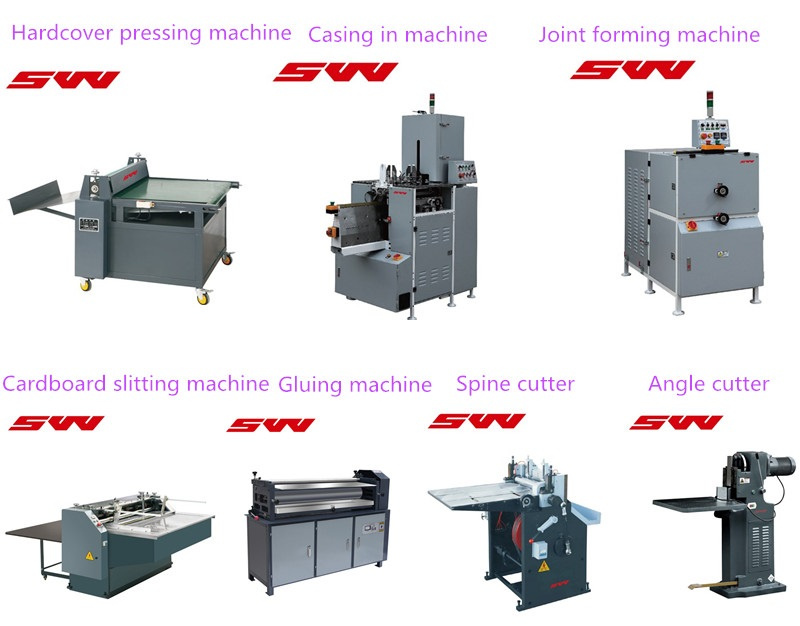

Our main product is: Case maker, case making machine, rigid box machine, automatic rigid box machine, calendar machine, double wire binding machine. Single wire binding machine, wire forming machine. Angle cutter, cardboard slitting machine etc.
