| Prod Model: |
EN-DEMO Cabinet |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
AC85-265V |
| Color Of Shell: |
Green,Silver,Black,Blue,Orange |
Product Description

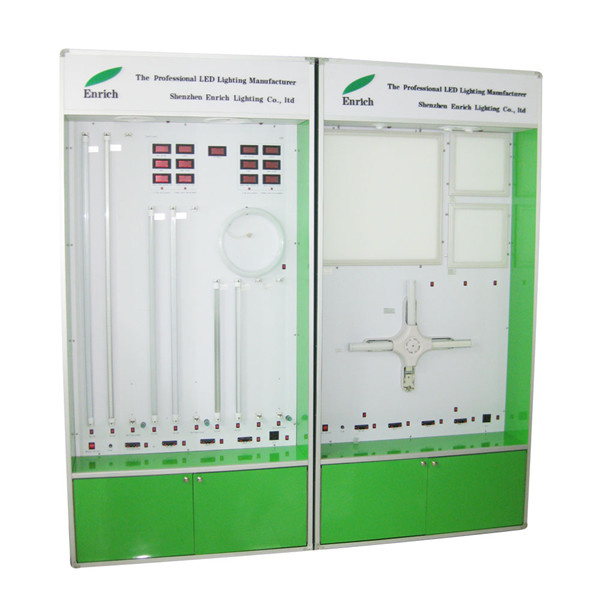

LED demo cabinet
Characteristics and Usage:
1. Complete tes functions:
It can test LED and traditional lights concurrently with data display about correlation data
Including voltage, current, power, power factor, annual consumption, frequency, etc.
"The data tells you how energy-saving it is! " The energy-saving effects of LED products will be
Clear at a glance.
2. Wide applicability:
Demo Case can configure various sockets(E40, E27, E17, E14, E12, MR16, GU10, B22, G24, G9, G4, T8, T5, etc)
And multi-function cable clamps(AC for LED, DC12V for MR16, G4, etc. ). It is suitable for test & display of
Various LED lights.
3. Wide voltage rang: AC85V-270V, DC5V-24V
4. Simple operation:
LED demo case is connected with various switches, dimmers, Safety device, wire circuit, etc.
It can be used directly when you connected the power supply and installed the lights.
5. Attractive and durable:
Appearance of each case can be individually designed, the materials use MDF in high density
Board and aluminums alloy frames.
6. Portable:
The configuration of the display cases have pull rods and rollers, so it's easy for long-distance travelling
Features:
1. It has passed the CE and RoHS the authentication small size and lightweight highly portable compact design, best use of space fully functional, high-cost effective, it's the necessary tool for sales to display product
2. Base identification: All light bases has corresponding carved identification for customers' to recognize them, all light base has one-to-one switch so that it's easy-to-control and test lights
3. Internal circuit: Strictly divide into AC and DC, AC base has identified suffix AC/DC base has identified suffix AC

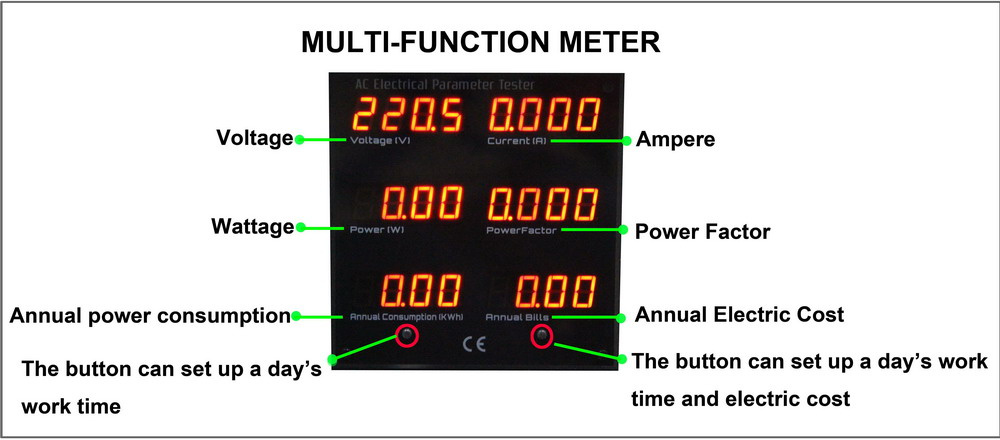

4. Parameter display of AC base: The electric parameter of AC base can be display as these voltage, current, power, power factor, annual electricity consumption (as 10 hours a day to calculate in the software) and frequency
5. Dimming function design: Dimmer and its switch, there are 2 positions of dimming switch dimmable and non-dimmable if put it to dimmable then all dimmable lights can be dimmed if put it to non-dimmable, then lights cannot be dimmed this function can be used to check if the light have dimming function
6. Parameter of GU10/E14/E26/E27/MR16 bases can be displayed the base type can be customized according to customers' requirement
7. There are 2 wire clips (one AC output and one 12V DC output) and 1 universal socket (AC output), easy-to-connection and extended function corresponding parameters can be tested maximum power-off DC wire clip is 18W
8. There is a storage box for small object has two sides of base to protect the box body
9. Can use AC to DC transformer to test MR16 power
10. Attention: Transformer itself has power consumption as well
| Dimension : | L1830*W1340*H530 mm |
| Weight : | 80Kg |
| Input Voltage : | AC85-265V |
| Digital Meter : | 10pcs Digital Meter, |
| 1pc LED Monitor,USB,SD card function |
| Comparision of LED/traditional with data |
| Socket : | E40,E27,GU10,B22,G9,G24, AC-MR16,E12,E14 |
| G4,DC-MR16,T8,T5 Tube socket |
| Wire Clip : | AC85-265V clip ,DC12V chip |
| T8 Tube Test Line : | 1 pair |
| Switch : | 1pc main switch, single switches |
| Material : | 6mm MDF with 1 mm fireboard,Aluminum Frame |
| Other : | 4pcs casters |
| Color of shell : | Green,Silver,Black,Blue,Orange |
Enrich is a Group company, we were earlier founded in Hong Kong in 2008 and later founded in Shenzhen in 2011, a high-tech company which is mainly engaged in scientific research, production, technical support and service of LED semiconductor illumination. We run our factory under ISO9001: 2000 and RoHS mark system. Covering an approximate area of 10000 m2, among which 3000 m2 is for R&D and office and 7000 m2 is for workshop. Enrich is equipped with numerous of advanced experimentation equipment and full automatic production pipeline, and has an annual production capacity of 1, 000, 000PCS for LED lights.
We have a strong R&D staff who are professional in the areas of LED application, electronics, illumination, structure, LED special power supply, technical design and so on. They are devoting themselves to the research and development of LED illumination and have acquired patents for many items. With industrious hardworking, we have developed super high brightness LED with low degradation and launched many series of LED lighting products, including Series universal for both Indoor and Outdoor application.
Our main product product range including illumination, landcape, decoration series, such as LED Tubes, LED spot light, LED globe blubs, LED panel light, LED neon flex light, LED strip light, LED Christmas Light, LED swimming pool light etc.
Besides, we also have developed LED demo case for meet customer need. Featured product displays comprehensive information on each connected LED light, Ideal for business trips, it allows prospective clients to view energy savings at a glance, All units conform to CE and RoHS standards
What we believe in is that "Sincere cooperation for mutual benefit". What we keep as our tenet is that "High quality is our responsibility for customers and high quality is the only condition for our eternal development, and what we always do is to provide customers with top-ranking products, technical support and service.
Our products have a high reputation and hot market in Europe, North America, Australia, Taiwan, Hong Kong, Middle East countries, Asia and so on. Our indoor new LED tube light can be made 10W with an output of 1000lm and power LED bulb can be made 5W with an output of 450lm. We are dedicated to improving the Color Rendering Index, Luminous Efficiency and Luminous Flux of LED illumination and being a pioneer in the prosperous LED industry.
Enrich always pays close attention to customers' Requirements and new products development. Our R&D team not only has rich practical operating experience, but also can help our customers to develop high quality new products with low cost. This high efficient and energetic team is good at overcoming all kinds of obstacles.
We believe in the policy of "quality is our priority & customer is the first". Enrich will offer the best quality and the best service to you.
