| Prod Model: |
6S |
| Brand Name: |
Gelin |
| Usage: |
Mining Concentration |
| Feeding Size: |
0.074-2mm |
| Feeding Density: |
30%~50% |
| Testing: |
Supply |
| After Service: |
Supply |
| Delivery Date: |
2 Days as in Stock Now |
| Place Of Origin: |
China |
| Voltage: |
380V |
| Certification: |
CE |
| Warranty: |
1 Year |
| Color: |
Multi Color |
| Customized: |
Customized |
| Condition: |
New |
| Weight: |
100-600kg |
| Material: |
Fiberglass |
| Type: |
Mineral Processing & Screening Equipment |
Product Description

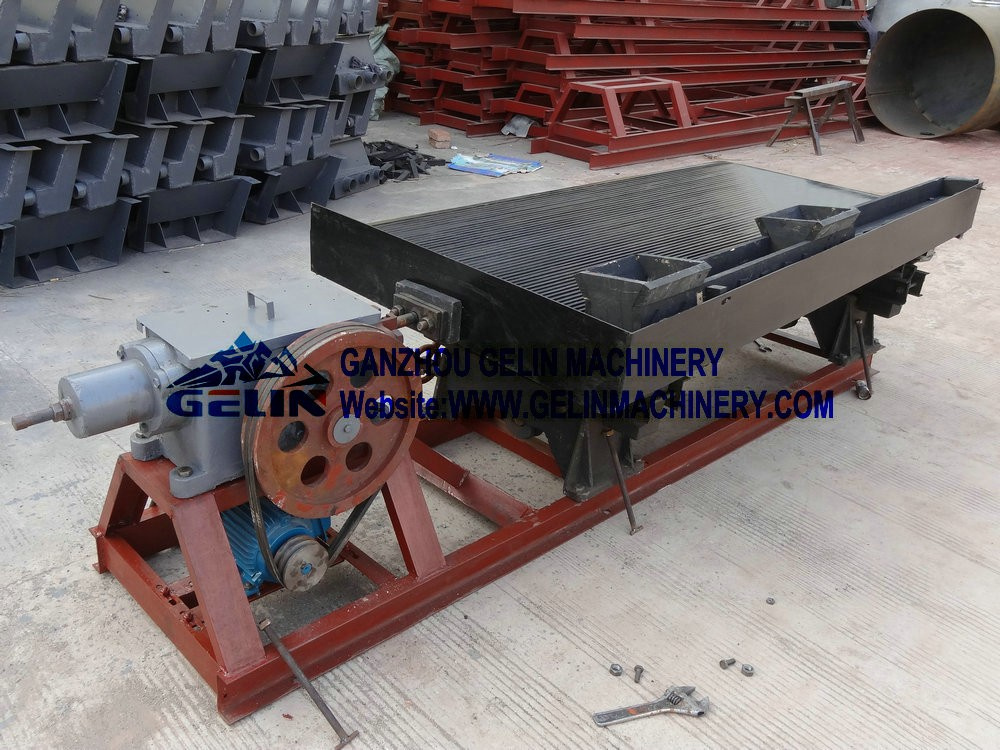

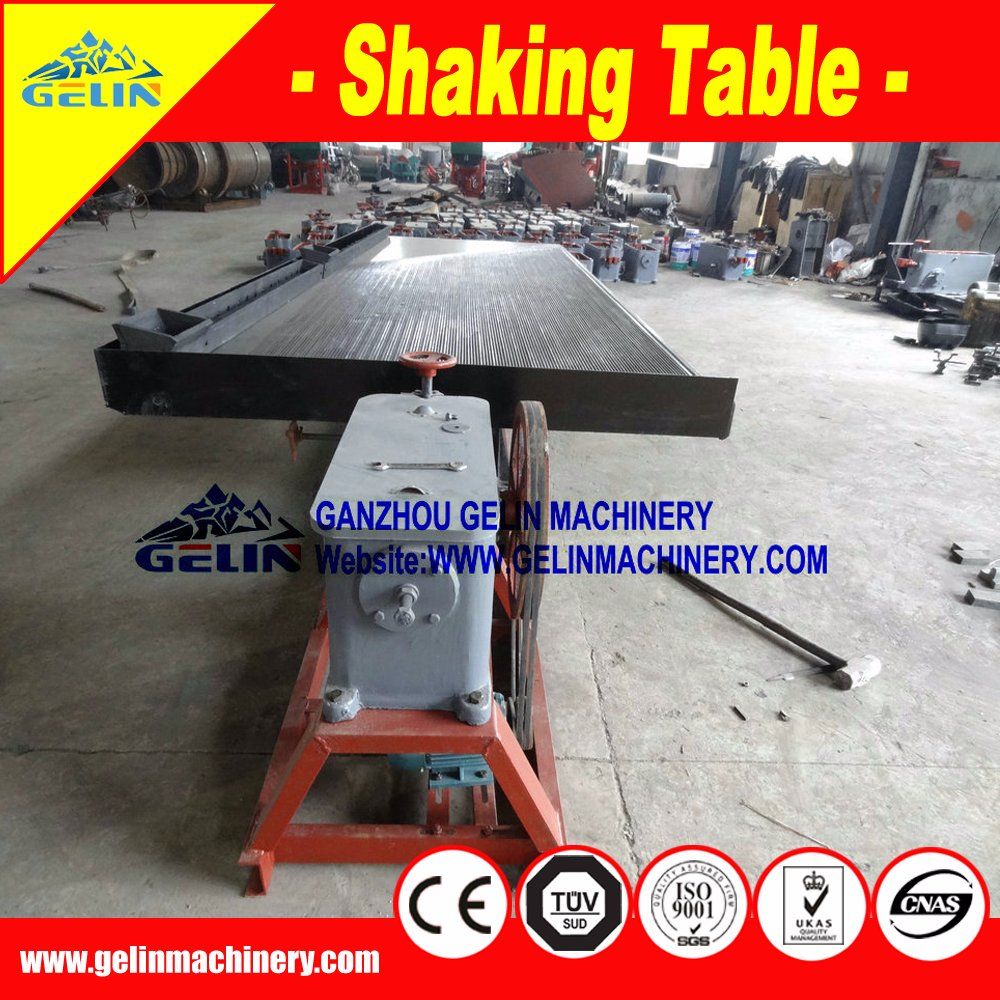

gold & silver refining machine gemini shaking table for sale
| Model | 6s-7.6 | 4.08 | 1.95 | 0.5 |
| Deck type | Coarse ore deck | Fine sand deck | Slime deck | | | |
| Benefication Area(m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 |
Deck
size | Length(mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 |
| | Transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 |
| | Concentrate end width (mm) | 1546 | 1546 | 1546 | 1100 | 850 | 430 |
| Maximum feeding size(mm) | 2 | 0.5 | 0.15 | Sand -2
Slime-0.1 | Sand -2
Slime-0.074 | Sand -2
Slime-0.074 |
| Feeding amount | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.4-1.5t/h | 0.3-0.8t/h | 0.05-0.2t/h |
| Feeding density(%) | 25-30 | 20-25 | 15-25 | 10-30 |
| Stroke(mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 |
| Frequency(F) | 45-220 | 53-250 | 60-280 | 210-320 | 250-450 | 280-460 |
| Water added | 1-3t/h | 1-3t/h | 1-3t/h | 0.4-2t/h | 0.2-1t/h | 0.1-0.5t/h |
| Transverse slope of deck | 2°30-4°30 | 1°30-3°30 | 1°-2° | 0-10° | 0-8° | 0-10° |
| Longitudinal slope of deck | 1.4 | 0.92 | --- | --- | --- | --- |
| Cross-section shape of deck | rectangular | saw-tooth | triangle | --- | --- | --- |
| Motor power(kw) | 1.1 | 0.55 |
| Transmission mechanism | Eccentric linkage |
1). High recovery ratio 90% above,
2). Used for separate gold, zircon, chrome, tin, copper, iron, tungsten,
3). High quality with 12 months guarantee,
4). Easy operate & maintain,
5). Produce by China biggest gravity mining machine factory.Tantalum niobium mine processing machine, tantalum niobium concentrator.
It is widely use for separating Gold, Manganese, Chrome, Copper, Iron, Titanium, Zircon, Tungsten, Tin, Tantalum, Barium, Lead, Mercury, Aluminum, rare metals and noble metal ore.
It is wet type mine machinery, which working by gravity. Compare with traditional tool, our Gelin brand shaking table have below advantages:
1). Made by 6s firber glass material;
2). Steel structure support, easy to install and move to other place;
3). High recovery ratio, as usual more than 90% recovery ratio.As per different particle size of raw ore, there are three distinct deck design available. The course ore deck is Designed for recovering particle size from 0.5mm to 2mm; The fine sand deck is designed for recovering fine particle From 0.15mm to 0.5mm; The slime deck is designed for recovering super extremely fine particle in the range of 0.074mm to 0.15mm.
