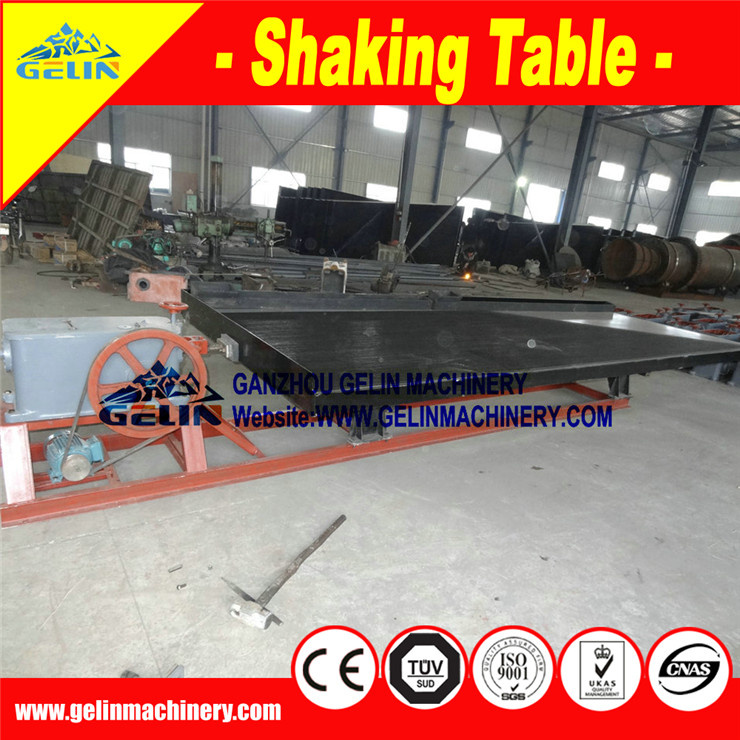

Gold Ore Shaker Table Machine, Wifely Mine Gold Shaker Table for Sand Mineral

Prod Model:	shaking table
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Gelin
Usage:	Mining Concentration
Feeding Size:	0.074-2mm
Feeding Density:	30%~50%
Testing:	Supply
Guarantee:	1year
After Service:	Supply
Delivery Date:	2 Days as in Stock Now
Place Of Origin:	China
Weight:	1T
Warranty:	1 Year
Color:	Black
Customized:	Customized
Condition:	New
Voltage:	Requested
Material:	Fiberglass
Type:	Mineral Processing & Screening Equipment
Material Feature:	Wearproof

Product Description

Gold Ore Shaker Table Machine, Wifely Mine Gold Shaker Table for Sand Mineral

1.Description
GELIN Shaker Table is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.

Gold Shaker Table, Table Concentrator
The Shaker Table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.

2. Working Principle

>>> Working principle
The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

>>> Head motion
Shaking tables are furnished with a totally enclosed slf-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance cost to a minimum.

>>> Deck
The decks are constructed of steel freamework and covered 16mm fibreglass with corundum, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, corrosion-resistant, and no distortion, it lengthens the working-lige of machine and thus allows machine perform perfectly on different mineral and different weather condition.

>>> Feed and water box
A wooden feed distributing box with hopper and a long water box are attached to the iron of the deck, giving a very even distribution of feed and water.


3. Features

a.High recovery ratio;
b.High concentration ratio;
c.Easy installation;
d.Simple operation;
e.Deck constructed of fiber glass;
f.Seven different decks to choose;
g.Long working life;
h.Adjustable stroke length and speed.

4. Technical Data:

Producing Machine Products of Our Factory:
Including gravity mineral table concentrator, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, Feeder, Classifier, ore washing machine and lab equipment, full sets processing equipments for gold, zircon, tin, chrome, copper, tungsten, ilmenite, iron sand etc.


Model		6s-7.6			4.08	1.95		0.5
Deck type		Coarse ore deck	Fine sand deck	Slime deck
Benefication Area(m2)		7.6	7.6	7.6	4.08	1.95		0.5
Deck size	Length(mm)	4450	4450	4450	3000	2100		1100
	Transmission end width (mm)	1855	1855	1855	1320	1050		500
	Concentrate end width (mm)	1546	1546	1546	1100	850		430
Maximum feeding size(mm)		2	0.5	0.15	Sand -2 Slime-0.1	Sand -2 Slime-0.074		Sand -2 Slime-0.074
Feeding amount		0.8-1.5ton/h	0.8-1.5ton/h	0.8-1.5ton/h	0.4-1.5t/h	0.3-0.8t/h		0.05-0.2t/h
Feeding density(%)		25-30	20-25	15-25	10-30
Stroke(mm)		16-22	11-16	8-16	6-30		12-28	9-17
Frequency(F)		45-220	53-250	60-280	210-320		250-450	280-460
Water added		1-3t/h	1-3t/h	1-3t/h	0.4-2t/h		0.2-1t/h	0.1-0.5t/h
Transverse slope of deck		2°30-4°30	1°30-3°30	1°-2°	0-10°		0-8°	0-10°
Longitudinal slope of deck		1.4	0.92	---	---		---	---
Cross-section shape of deck		rectangular	saw-tooth	triangle	---		---	---
Motor power(kw)		1.1						0.55
Transmission mechanism		Eccentric linkage

5. Packing & Loading

- Container
40HQ/40GP/20GP
- Load Port
Xiamen ,Guangzhou, Shenzhen,Shanghai or at customers' request

6. Our company

Ganzhou Gelin Mining Machinery Company Limited is an expert manufacturing mining machines in China. Our company is located in the Industrial Zone of Shicheng County, Jiangxi Province.

Our distinctive products include Shaking table, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, Feeder, Classifier, ore washing machine and lab equipment etc. Our machines are popular in separating gold, copper, manganese, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite, etc.

Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India, the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia. We have won high reputations from all of our clients for our machines and services.

Besides the above mentioned products, we can also design and manufacture many kinds of special mining machines and automatic processing lines according to the requests of customers. If you are in need of detailed information, please inform us. We will provide you with total solutions according to your specific requirements in time.

7. GELIN service

--- PRE-SALE SERVICE ---
1.Based on clients' request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;
2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;
3. Design and provide the complete processing flowchart;
4. Design & manufacturer products according to clients' demands.
--- AFTER-SALE SERVICE ---
1.Pre-check and test the products before delivery;
2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;
3.Trace the status of the shipping until the products received;
4.Prepare required documents to let clients pass custom clearance;
5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel
3) Carry out any other service clients may need
6. Provide technical exchanging & spare parts for life-long term
--- ONE STOP SOLUTION ---
1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;
2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;
3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.

8. FAQ

Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
 A:1). What type is the mining? Is it rock stone? or it is sand?
    2). If rock stone,What is the general particle size(mm) of the raw ore?
    3). What is the handling capacity(tons per hour) you plan to work with?
    4).What is the elements of the raw ore? How much percent % of each minerals?
Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
Q: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
Q: If i need the complete mineral processing line. is Gelin able to help us build it?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.

Welcome to visit our factory in your free time!
