Glass Tilting & Breaking Table
| Price: |
US $ 4000-6000set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
YG-3826 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sy-4028 |
| Working Table Size: |
3800X2500mm |
| Voltage: |
380V/50Hz or Customised |
| Table Height: |
910mm or So |
| Fan Numbers: |
2 Sets |
| Machine Size: |
3700X2500X910mm |
| Mesa Flannelette: |
Domestic Black Fiber Felt |
| Deck Plate: |
High Density Fiberboard |
| Mandril: |
Horizontal Two, Vertical One |
| Type: |
Glass Loading Machine |
| Certification: |
CE |
| Control System: |
PLC |
Product Description

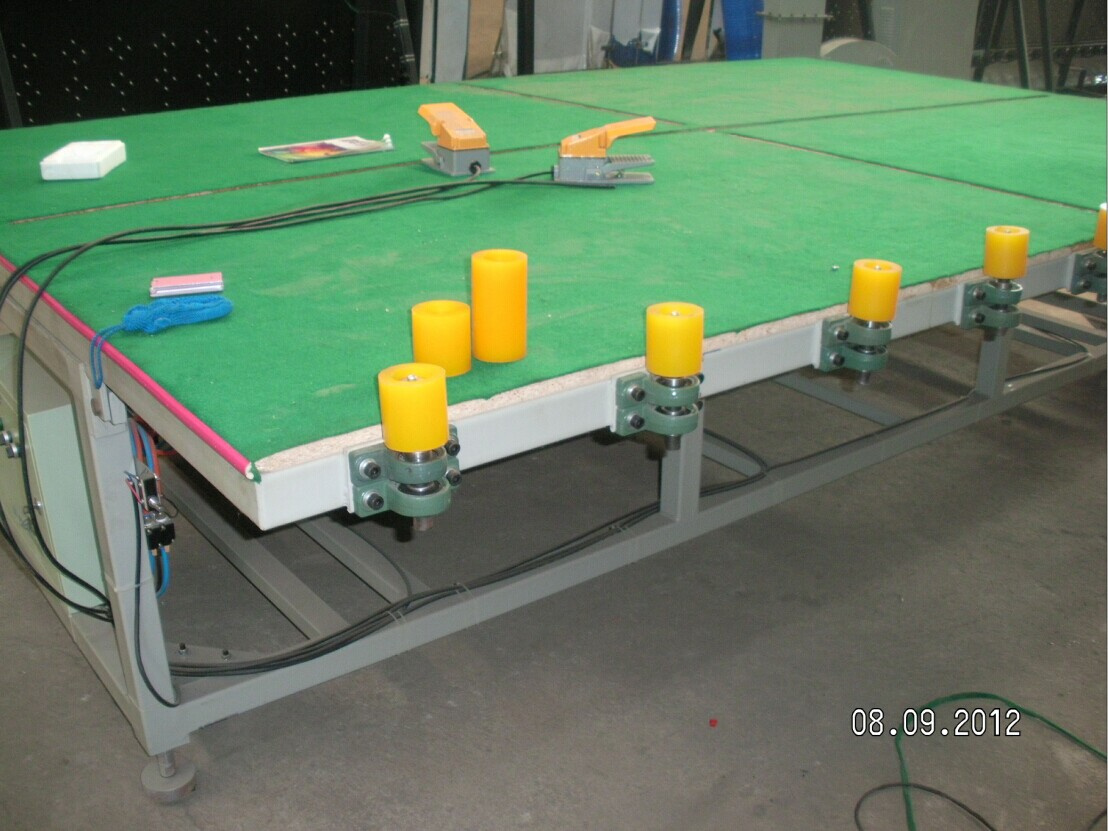

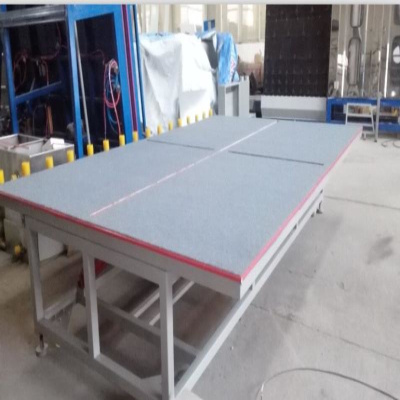

Glass Tilting Table with Broken Function:
1. Adopts the air-cushion type work table. It has pneumatic tilting function for unloading glass. The air-cushion makes it easily to move glass on the table.
2. The table has overturn function, so it can tilt glboth tiltass from vertical to horizontal, can it controlled by foot switch, very simple and convenient to operate.
3. There is bars to guarantee the glass do not fall down and break.
4. The good carpet coated on the table, so it can not scratch the surface of glass.
5. The size is changeable according to customers' request.
Technical Data:
Voltage : 380V/50HZ,3P or customised
Glass size: 3600 X 2440mm or Customised
Glass thickness: 3-19mm
Air Blower: 2PCS
Foot switch: 2PCS
Hydraulic Pressure station: 1PC
Packing: Seaworthy packing
3. Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.
Package: Each PC in wooden cases.
Port of Loading: Qingdao, China
Delivery Time: During 20 days after we receive your first payment
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms. Sailing He
Office tel: 0086 531 66683798
Mobile: +86 18005318120
Since established the company, relying on its mighty real development strenght, advanced management mode, and excellent officers and workers, becomes gradually the professional enterprise with the produces, profession management, sale and after-sales services in a whole. Now our equipments has been exported to many foreign countries. New generation alumi doors and windows that company develops and research concentrates on the industrial development in building materials in Chinese chemistry, can produce the every kind of products with such good functions as elegant appearance, varied colors, soundproof, watertightness and etc. And it can satisfy aluminum and pve doors and windows and insulating glass machine's building requests, improved the Chinese living environment.
