Suzhou Yuanda Commercial Products Co., Ltd. >> General Store Items Gondola Shelf Supermarket Display Rack Shelf

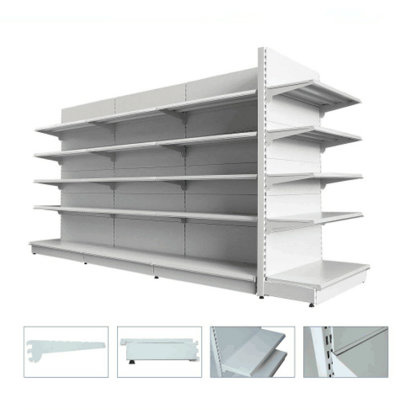

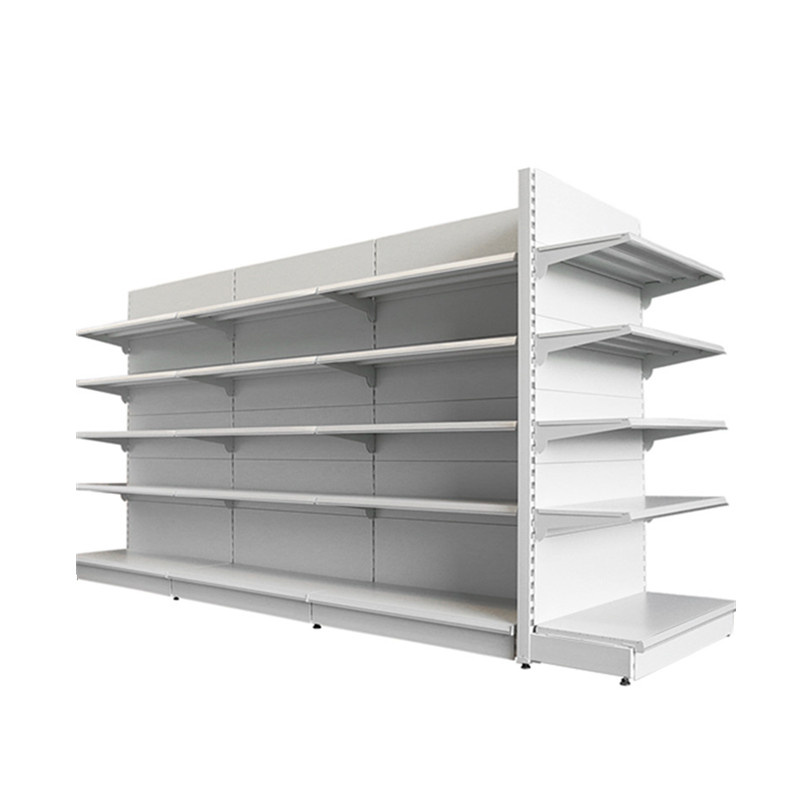

General Store Items Gondola Shelf Supermarket Display Rack Shelf

General Store Items Gondola Shelf Supermarket Display Rack Shelf
Price: US $ 42-86/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: YD-S002A
Capacity: 80-120kg/Layer
Layer: 1-7 Layers
MOQ: 10 PCS
OEM/ODM: Available
Finish: Powder Coated
Function: Shop Display
Color: White/Black/Yellow/Any Color
Sample: Available
Port: Shanghai
Delivery Time: 10-15 Days
Material: Steel
Style: Backplane Style
Side Number: Double Sided
Weight: Middle Weight
Rotary: Fixed
Usage: Convenient Store
Customized: Customized

Product Description

General store items gondola shelf supermarket display rack shelf
Product Description

1). Usual size: L1000 X W1000 X H2000mm, double side, 4 layers
              L1000 X W500 X H2400mm, single side, 5 layers

2). Layers for each unit: 3-7 layers are choiceable

3). Weight capability: 50--180kg/layer just according to material choice

4). Each layers are adjustable freely

5). Easy to assemble & dismantle

6). Packing: Upright with bubble foam wrapped, others with carton

7). Different dimension, thickness, color, type are available for us

8). OEM service can be offered


Contect Us:
Sales : April
phone number: +86-18255643822


Euro style:
Basic shelving componentsSizeoptions(mm)
UprightSection size/30x60/ 30x80/
Lenght/1410/1510/1610/1710/1810/1910/2010/2110/2210/2310/2410/

2510/2610/2710/2810/2910/3010
Thickness/2.0/ 2.5
Base legLength200/250/300/370/470/570/670/770
Height60/110/160/260
ShelfWidth665/800/1000/1250/1330
Depth200/250/300/370/470/570/670/770
Thickness0.7/0.8
Wire shelfWidth665/1000/1250/1330
Depth370/470/570
Dia2.8
Preforated backpanelWidth665/800/1000/1250/1330
Height400/500
Thickness1.0/1.2
Back panelWidth665/800/1000/1250/1330
Height100/200/300/400/500
Thickness0.6/0.7
BracketHook number 2/3/4
Length200/250/300/ 370/470/570/670/770
Thickness2.5/3

American style:
Basic shelving componentsSizeoptions
Uprightheight 30'' thru 120''  in 6'' (152 mm) incremnets
Kicker plateLength2' to 4' in 6'' increments
Top/bottom spannerWidth3' or 4'
Hardboard Backsheight 6", 12", 18", 24", 30", 36", 42", 48", 54", 60", 66", 72"

(Pegboard and Marteck)Length2' to 4' in 6'' increments
ShelfWidth2' to 4' in 6'' increments
Depth7''-31''
Angular adjustmentflat, 17° or 30° downslope positions
Base ShelfWidth2' to 4' in 6'' increments
Depth7''-31''
Wire shelfWidth2' to 4' in 6'' increments
Depth7''-31''
Angular adjustmentflat, 17° or 30° downslope positions

Australian style:
Basic shelving componentsSizeoptions(mm)
Upright(single side)Depth200/250/300/320/350/400/450/500
Height/1200/1500/1800/2100/2400
Thickness/1.5/ 2.0
ShelfWidth600/630/900/930/1200/1230
Depth200/250/300/320/350/400/450/500
Thickness0.5/0.6/0.7/0.8/0.9/1.0
Wire shelfWidth600/630/900/930/1200/1230
Depth335/405
Dia2.7
Preforated backpanelWidth600/630/900/930/1200/1230
Height100/300
Thickness0.7/0.8/0.9/1.0/1.2
Back panelWidth600/630/900/930/1200/1230
Height100/300
Thickness0.6/0.7/0.8/0.9
Volcano back panelWidth600/630/900/930/1200/1230
Height100/300
Thickness0.8/0.9/1.0
Mesh backHeight1200/1500/1800/2100/2400
Width600/630/900/930/1200/1230
BracketHook number 2/3/
Length250/300/ 320/350/400/450/500
Thickness2.0/2.5/3
Rear/ front beamLength600/630/900/930/1200/1230
Wire fenceLength600/630/900/930/1200/1230

Asia style:
Basic shelving componentsSizeoptions
UprightSection30*60*2.0mm; 30*80*2.0mm;
height 1350;1550;1850;2150;2550mm
Kicker plateLength500; 650;700;800;900;1000;1100;1200;1300mm
Flat back panelheight 300mm; 150mm
Length500; 650;700;800;900;1000;1100;1200;1300mm
Pegboard panelheight300mm; 150mm
Length500; 650;700;800;900;1000;1100;1200;1300mm
Thickness0.5; 1.2mm
ShelfWidth500; 650;700;800;900;1000;1100;1200;1300mm
Depth200; 300;350;400;450;500;550;600mm
Angular adjustmentflat, 17° or 30° downslope positions
Base ShelfWidth2' to 4' in 6'' increments
Depth7''-31''
BracketLength200; 300;350;400;450;500;550;600mm
Thickness2.5; 3mm
Company Information
Suzhou Yuanda Commercial Products Co., Ltd

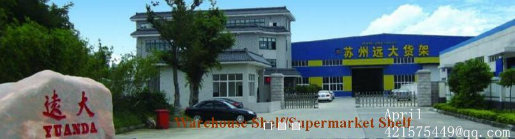

Factory:

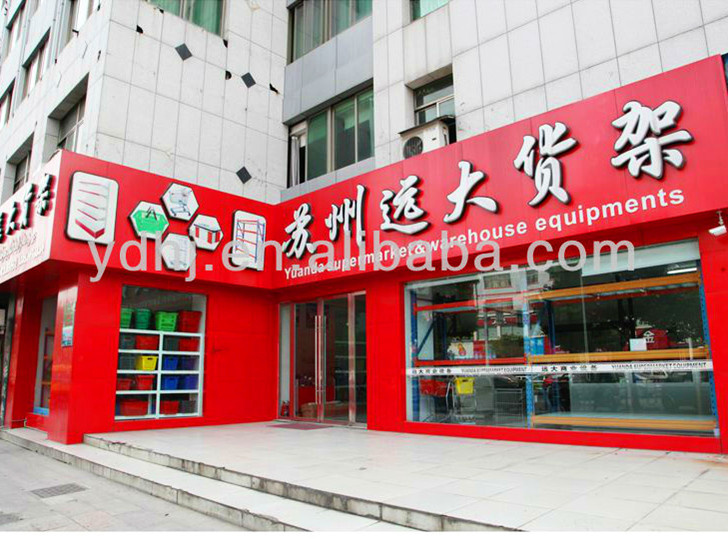

Sale store and 1000 square meter showroom:

Our team:



Suzhou Yuanda Business Equipment Co., Ltd. Specializes in the design and production of supermarkets goods shelves, luxurious back board type shelves, heavy warehousing shelves, handcarts, cash counters, PAR value counters, flowing vehicles, storage cages, bookshelves, shoe shelves and other commercial equipment.

Our company use computerization management mode and we introduced advanced assembly lines of spurts model. Our company has a complete set of production equipment and we also have strong technological strength. We combine rich experiences in designing and production of commercial equipment that we have accumulated for many years. To make any progress, we are overcoming our own weak points by learning from strongpoint. We sincerely repay all of our friends for your kindness and supports through our down-to-earth work manner.

We all pay attention to the quality of our products. We not only serve our customers with safe, flexible and high efficiency goods shelves, but also develop our service fields. We setup advanced service contents. For example, we can design new shelves according to customers' Different needs. We can produce various kinds of goods shelves of special specifications. We can also provide whole layout for various kinds of marketplaces.

We will create newer, better, stronger goods shelves, and we also will serve for business circles and make progress with you hand in hand. We are looking forward to establishing long-term business relationships with all clients based on mutual services.
