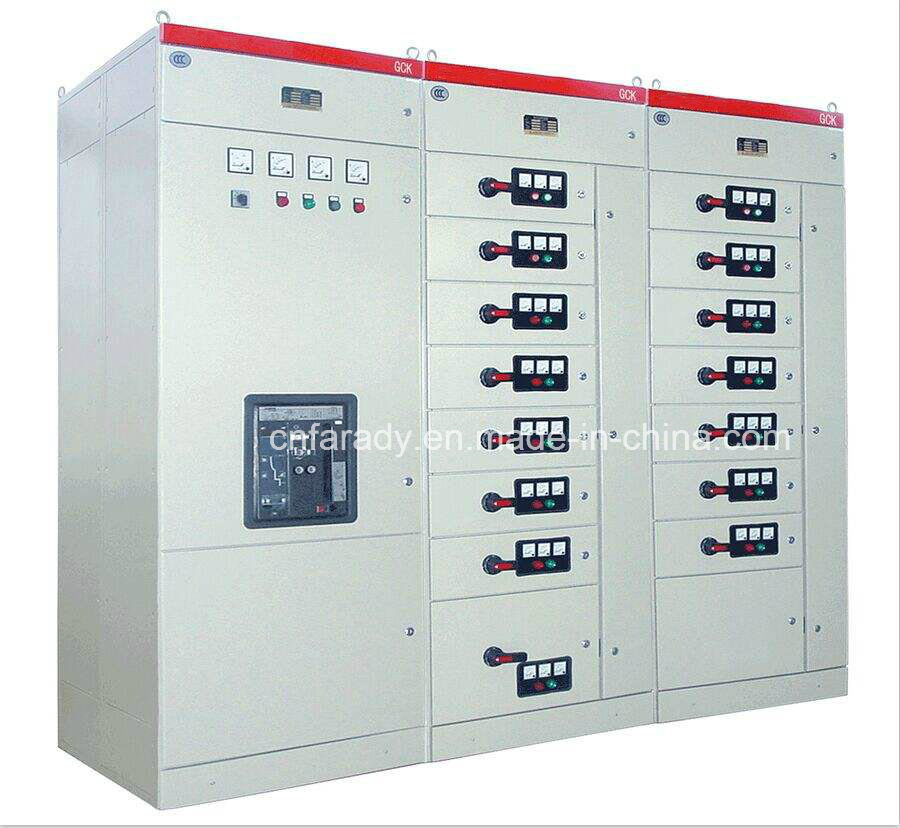

Gck Series Metal Low Power Distribution Box/Voltage Switch Cabinet

Gck Series Metal Low Power Distribution Box/Voltage Switch Cabinet
Price: US $ 600-11000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: GCK
Type: Distribution Metering Box
Structure: Protection
Brand: Farady

Product Description



General
GCK(L) LV withdrawable switchgear cabinetis applicable to the low voltage distribution system with AC50Hz, rated working voltage 380V. It contains power center (PC) and motor control center (MCC) functions. Each technical parameter all reaches national standards. With characteristics of advanced structure, beautiful appearance, high electric performance, high protection grade, reliable and safe and easy to maintain. It is the ideal distribution device for low voltage power supply system in metallurgy, petroleum, chemical, power, machinery and light weaving industries etc. The product accords with standards IEC-439, GB7251.1. 1.

Characteristics

GCK(L)1 and GCJ1 are assemble type combined structure. The basic skeleton is assembled by adopting special bar steel.

2. Cabinet skeleton, component dimension and starter size change according to basic modulus E=25mm.

3. In MCC project, parts in cabinet are divided into five zones (compartment): horizontal bus bar zone, vertical bus bar zone, function unit zone, cable compartment, and neutral earthing bus bar zone. Each zone is separated mutually for circuit's normal running and effectively preventing fault expansion.

4. As all structures of framework are connected and firmed by bolts, so it avoids the welding distortion and stress, and upgrades the precision.

5. Strong general performance, well applicability and high standardization degree for components.

6. Draw-out and insert of function unit (drawer) is lever operation, which is easy and reliable with rolling bearing.

Service environment

1. Altitude above sea level should not exceed 2000M.

2. Ambient air temperature: -5ºC~+40ºC and the average temperature should not exceed +35ºC in 24h.

3. Air condition: With clean air. Relative humidity should not exceed 50% at +40ºC. Higher relative humidity is allowed at lower temperature. Ex. 90% at +20ºC.

4. Places without fire, explosive danger, serious pollution, chemical corrosion and fierce vibration.

5. Installation gradient not exceed 5ºC.

6. Control center is suitable to the transportation and store with following temperature:-25ºC ~+55ºC, in short time (within 24h) it should not exceed +70ºC.

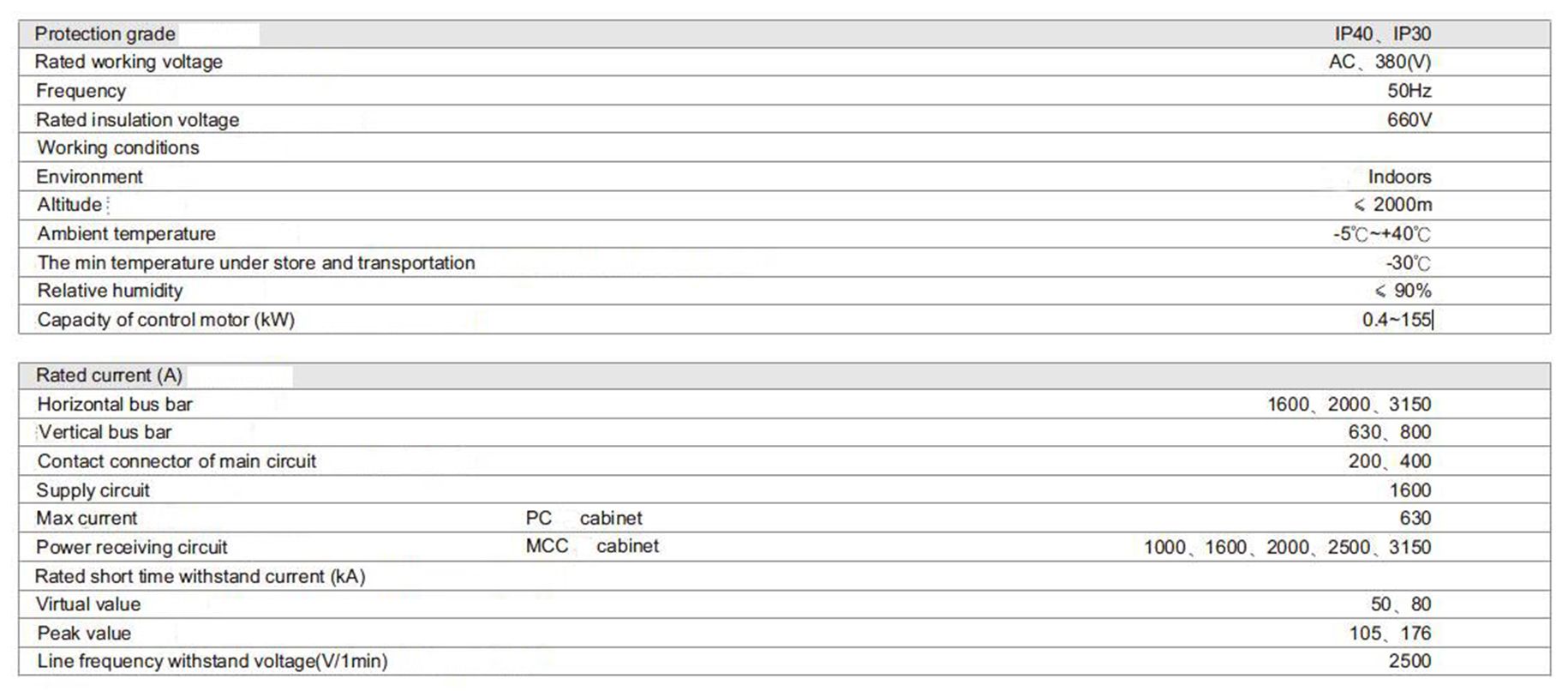

Main technical specifications

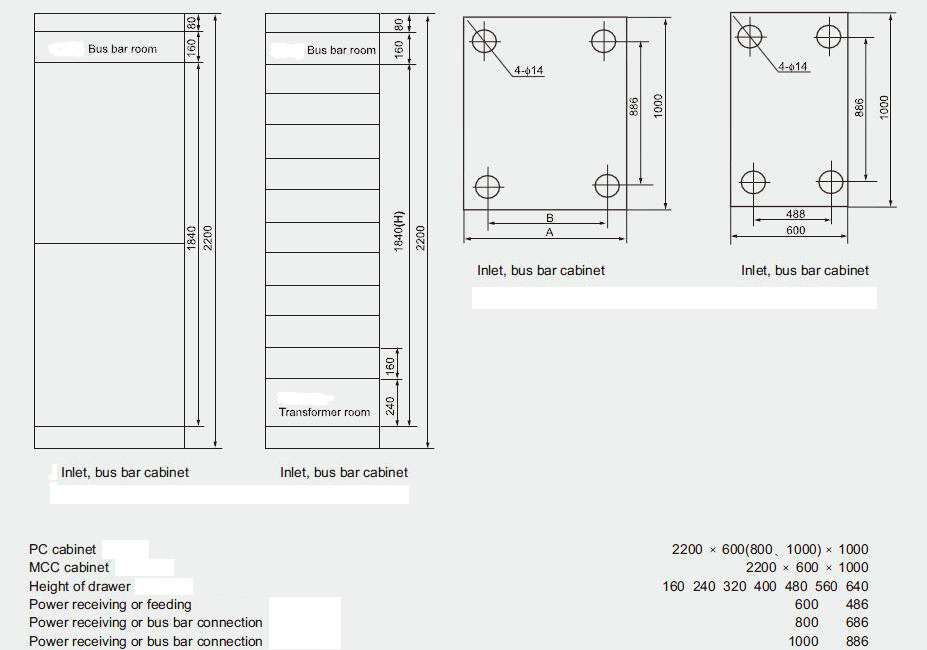

Interior structure

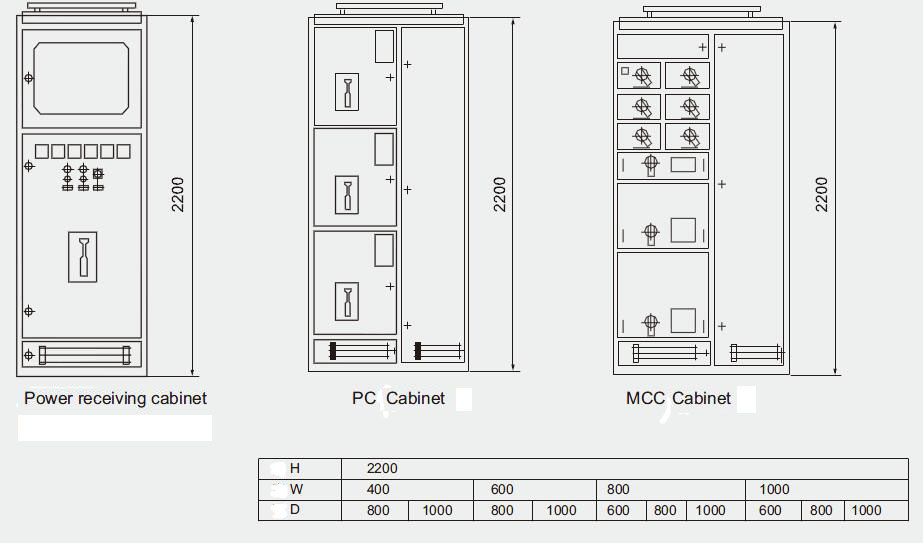

Structure Features

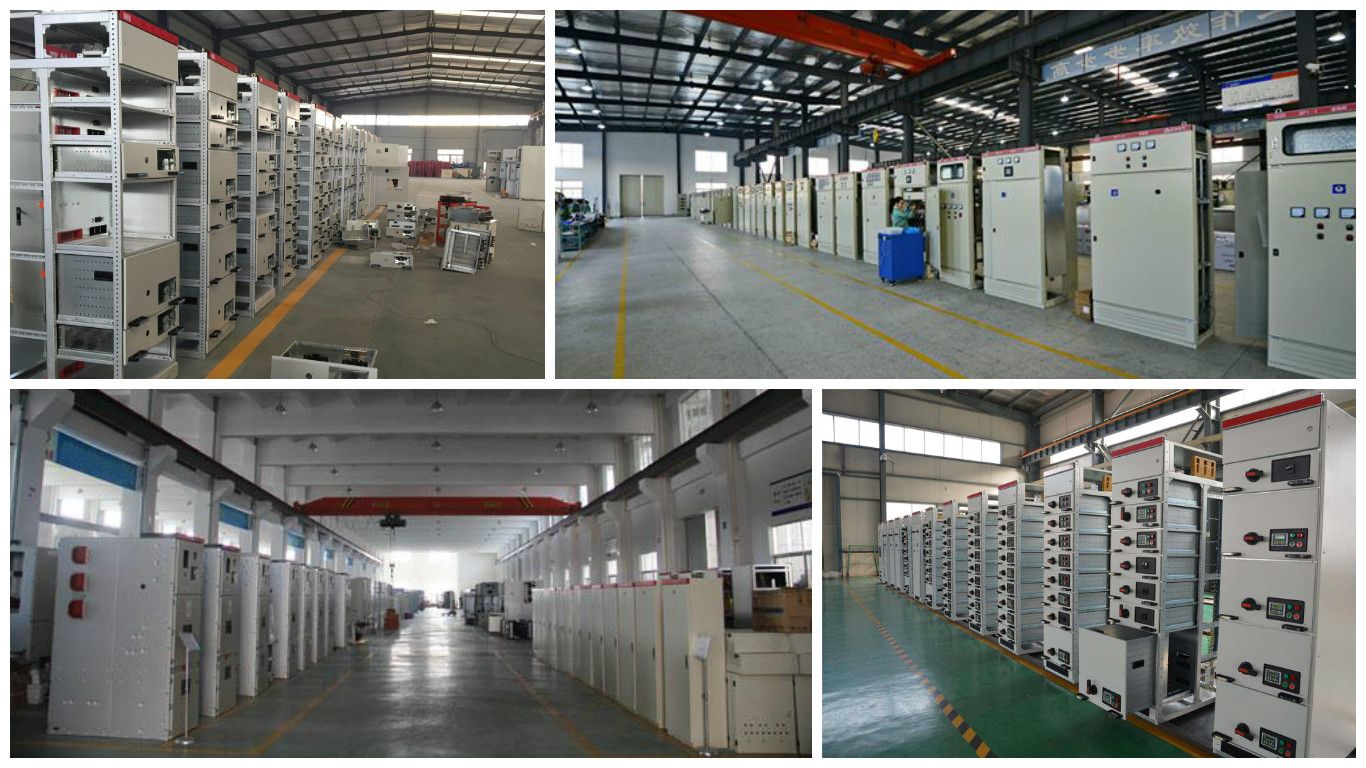

Company information
Farady is located in Liushi of Yueqing, a costal city, which is often referred as the Electric Products Capital in China. Boardered by the State road, highway, and high-speed railway, close to
SHANGHAI/NINGBO/WENZHOU sea ports, and the Yongqiang International airport in Wenzhou, we enjoy a great advantage in transportation which thus can guarantee our clients the fast shipping.
All the products of ours have passed the national laboratory type test, which also wins the STATE GRID of China as one of our contractors.
The company is equipped with the state-of-the-art technology, sophisticated facilities, ISO9001 quality management system certification and ISO14001 environment certification approval.
We also enjoy the Certification of New Hi-tech Enterprises, National Spark Program, and own more than 70 item transformer patents, with which our products are not only popular in the domestic market but also exported to Southeast Asia, South America, Africa and the middle east.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the biggest name in China, and contributes its share to the transformation from the Made in China into the Invented in China.

Our services

1,Quick response in before sales period help you got order

2,Excellent service in production time let you know each step we made

3,Reliable quality solve you aftersale headache

4,Long quality waranty ensure you can buy without hesitate

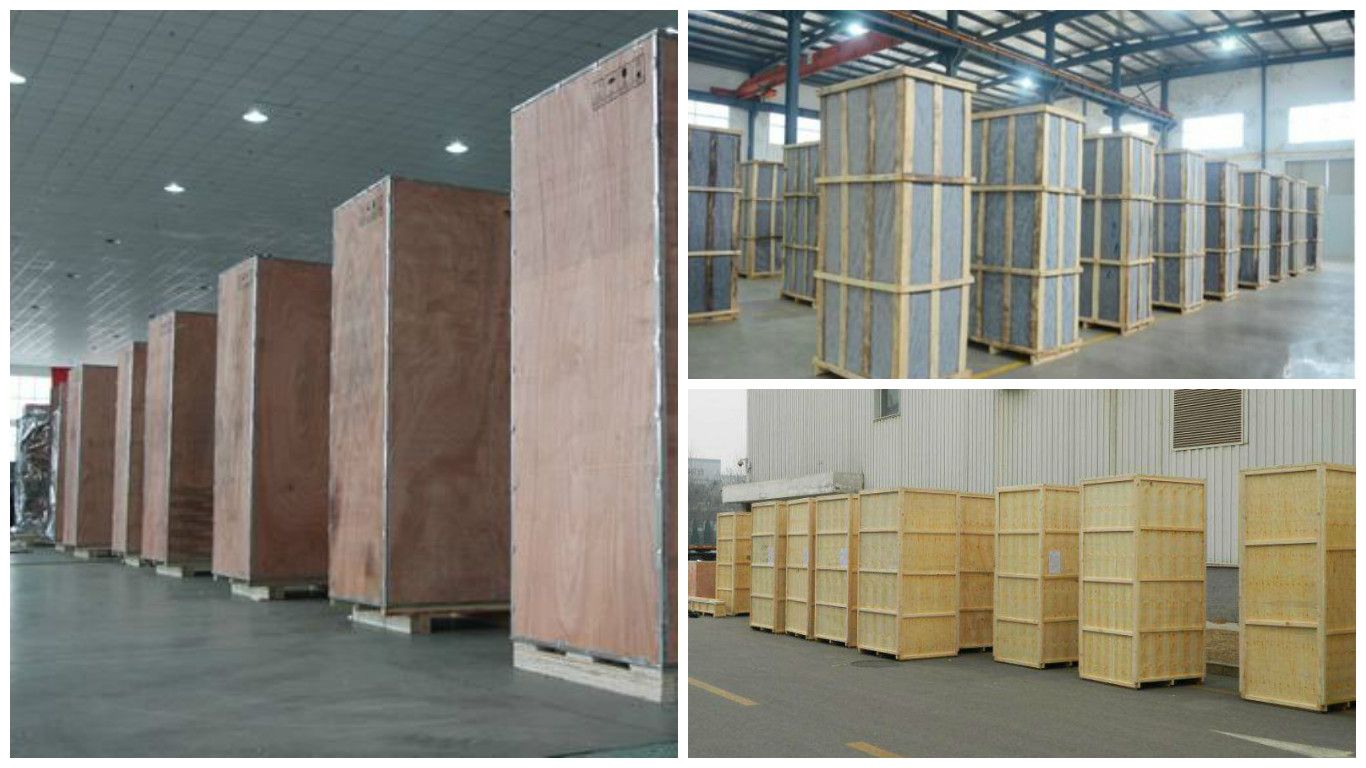

Packaging

FAQ

1,Why I buy Farady switchgear

After compare quality,delivery and price you will find out answer

2,How is your farady electrical switchgear waranty

12+12month after manufacture date,you total got 2 year waranty

3,Is that possible to be one of distributor of Farady Electric in my country

Yes,once you action is fast enough

4,More question......

Feel free to contact you you will get immediately reply

Founded in 1996, with a registered capital of 10 million USD, Zhejiang Farady Electric enjoys about 20 years' experience in MV transmission and distribution electrical equipment manufacture.

We are National Hi-tech enterprise, National Spark plan Program, State Hi-tech enterprise, State Innovation R&D center, Patent demonstrate company.

Farady is located in Liushi of Yueqing, Zhejiang, China, main products include: Transformer/RMU/switchgear/AVR/ACR and MV indoor and outdoor switch. All the products of ours have passed the national and international laboratory type test, Farady Electric was qualified supplier of China State Grid and China southern Grid

With ISO9001/14001/18001, we are strike for create value for our partner and customer

There is more than 20 distributors and agents worldwide already trust us and distribute Farady product there, we are not only export product, but also provide whole technology solution to help partner to establish local factory in our business line.

Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the top name in the international business from China, and contributes its share to the transformation from the Made in China into the Invented in China.
