| Prod Model: |
MNS/GCK/GGD/GCS |

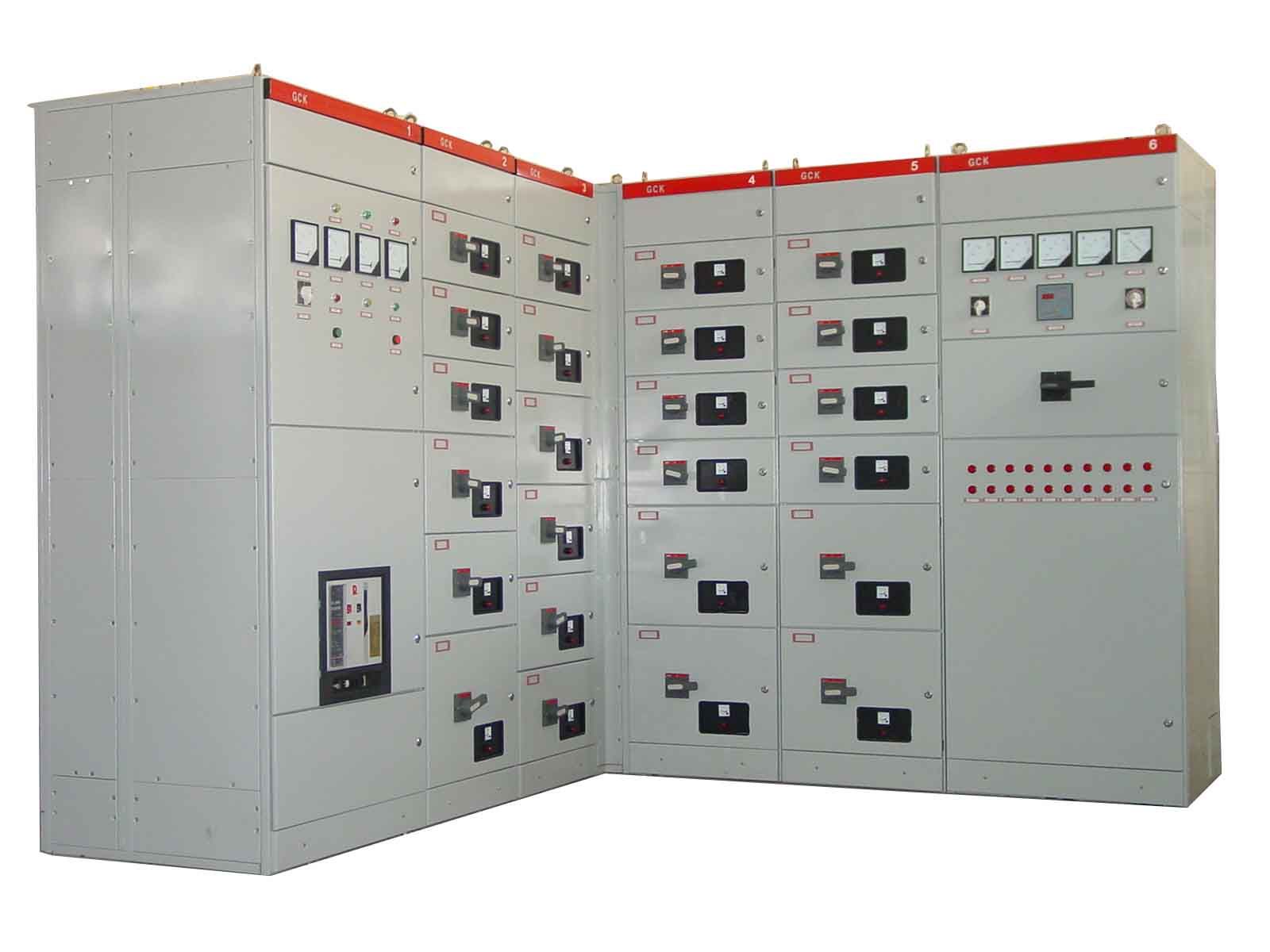

| Indoor Metal-Clad Enclosed Switchgear: |
Metal Clad Switchgear |
| Low Voltage Switchgear: |
IP31or IP54 |
| Material: |
Steel |
| Type: |
Resistance Box, Meter Box |
| Structure: |
Rack |
Product Description
ZDMGB digital soft starter is the new hi-tech products especially designed by this company for the users. The structure is simple, easy operation, full function, small operation power, small size, energy-saving, and long life. It overcomes the defects caused by the operation of auto-transformer and resistance buck. And it also overcomes the defects of big size, complex line, and high energy-consuming, high rates maintenance. And it is the ideal product to replace the traditional starter.
Main Characteristics
1. The starting loop current is less than 1.5 times of the rated current of motor
2. Voltage drop of power system can be set from 5% to 12% when starting;
3. Low request for grid capacity can reduce the installation capacity of Transformer, and reduce investment of equipment;
4. High starting torque, can meets the demands of different loads;
5. Can start continuously, high repetitive precision, no over-voltage during switch operation;
6. No harmonics, has very little influence on power quality, has low voltage drop, and no additional active power loss;
7. All sealed,no environmental restriction,safe & reliable,long life,exempt from maintenance;
8. Small volume, convenient installation and use.
| Model | Power(KW) | Rated current(A) | External dimension (mm) | Installation dimension(mm) | weight(kg) |
| A | B | C | D | E | F |
| ZDMGB-15~30 | 15,17,22,30 | 32,37,54,75 | 1000 | 500 | 350 | 35 | 250 | 440 | |
| ZDMGB-37~75 | 37,45,55,75 | 86,97,130,155 | 1400 | 600 | 430 | 35 | 345 | 390 | |
| ZDGB-90 | 90 | 180 | 1600 | 660 | 530 | 35 | 440 | 500 | 90 |
| ZDGB-110 | 110 | 220 | 1600 | 660 | 530 | 35 | 440 | 500 | 90 |
| ZDGB-132 | 132 | 260 | 1600 | 660 | 530 | 35 | 440 | 500 | 120 |
| ZDGB-160 | 160 | 318 | 1600 | 660 | 530 | 35 | 440 | 500 | 120 |
| ZDGB-225 | 225 | 460 | 1600 | 660 | 530 | 35 | 440 | 500 | 145 |
| ZDGB-250 | 250 | 490 | 1800 | 660 | 530 | 35 | 500 | 450 | 145 |
| YKGB-320 | 320 | 630 | 1800 | 660 | 530 | 35 | 500 | 450 | 170 |
| YKGB-400 | 400 | 790 | 2000 | 800 | 600 | 35 | 400 | 610 | 200 |
| YKGB-500 | 500 | 980 | 2000 | 800 | 600 | 35 | 400 | 610 | 200 |
| YKGB-600 | 600 | 1100 | 2000 | 800 | 600 | 35 | 400 | 610 | 200 |
| YKGB-810 | 810 | 1400 | 2000 | 800 | 600 | 35 | 400 | 610 | 200 |
This is Rachel who is from Shanghai Zhenda Complete Sets of Electric Equipment Co,.Ltd.we are professional in busbar trunking,cable tray and switchgear,if need please contact us
Contacts:
Phone: 0086-18702128806
Tel: 0086-21-63812968-8035
Web:www.zhenda.hk
Established in the middle of 90's, Shanghai Zhenda group has a dozens of subsidiary companies. The group mainly engaged in transmission and distribution equipment, metallurgical industry, green energy, real estate and energy efficient electrical products.
Shanghai Zhenda Complete sets of Electrical Co., Ltd which is managed and holded by the group mainly manufacture busway, cable bridge and complete sets of HV/LV switchgear. As producing designated enterprise of HV/LV complete sets of equipment of departments of national machinery and power supply industry, Shanghai Zhenda Complete sets of Electrical Co., Ltd has two production bases in Taizhou city named Jiangsu Zhongyuan Electrical Limited Company and Jiangsu Aiqing cable bridge and busway equipment Company. The factories cover an area of 35, 000 square meters with the building area of 20, 000 square meters. The company has international advanced production equipment including 3 flexible production lines, stored energy spot, welding machine, CNC bus machine, CNC punching machine and more than 20 sets of large equipment and so on. All of the employees is more than 150 people, including over 20 professional engineers. Based in the center of the international metropolis Shanghai, with the support of the Group's production scale, manufacturing standards and R&D capabilities, Zhenda has become one of the largest scale and most competitive manufacturer of transmission and distribution equipment company.
Shanghai Zhenda Complete sets of Electrical Co., Ltd takes the lead to pass the authentication of ISO9001-2000 and CCC National Compulsory authentication and makes a number of product patents in particular ZDMC series busway (Patent Number: ZL-2008.2013538.8) that has reach international first-class level.
The company has modern enterprise management, complete quality inspection system, strict testing standards and good after-sales service, which make us get into the market evaluation to be the best. Company is evaluated as "China star enterprise", "A level honor enterprise" and "contract and credit enterprise" and so on.
Adhering to the innovation development double win business philosophy, Group is growing at an annual rate of more than 30% expansion and establish long term cooperation with many well-known domestic and foreign electrical automation companies.
