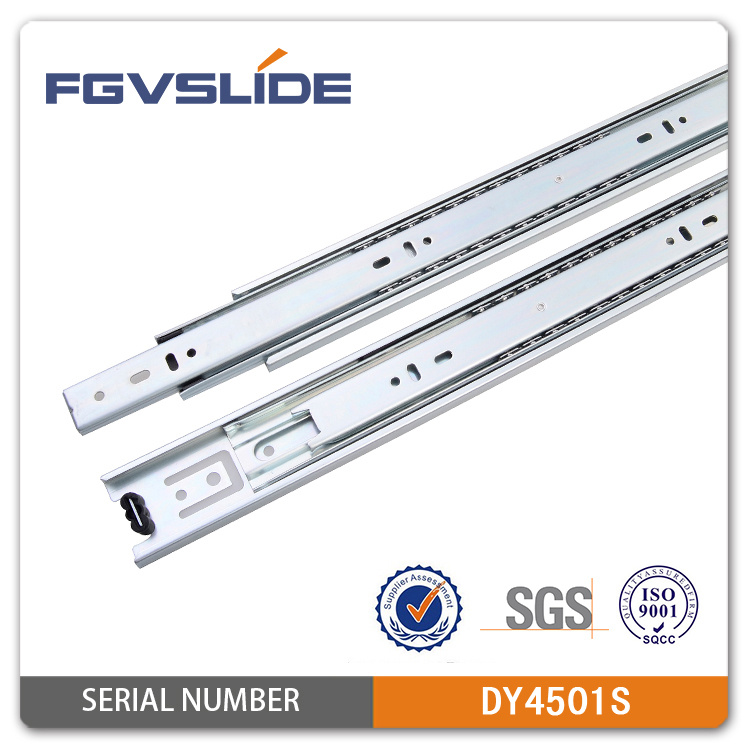

Full Extension Ball Bearing Wooden Furniture Drawer Slide Telescopes Channel

Prod Model:	DY4501S
Load Rate:	35kgs(18")
Product Mount Method:	Side Mounting
Width:	45mm
Test:	SGS
Finish:	Electro-Zinc Plated with Clear, Yellow or Black
Features:	Low Profile,Drawer Disconnect with Trigger Release
Thickness Of Material:	1.0*1.0*1.2mm/1.2*1.2*1.5mm
Gap:	Gap of Every Side Is 12.7+_0.2mm
Rail:	Linear
Structure:	Two Knots
Slide Type:	Steel Ball Type
Material:	Cold Rolled Steel

Product Description



ITEM NAME	full extension ball bearing telescopic channel drawer slide	Item No.	DY4501S
MATERIAL	Cold rolled steel	FINISH	Zinc Plated
WIDTH	45mm	LENGTH	10 to 24 inches
THICKNESS	1.0*1.0*1.2 / 1.2*1.2*1.5 mm	HOLE PATTERN	Standard
COLOR	Clear or Black	LOAD RATING	35 KGs / 45 KGs
BALLS	2 Balls / 3 Balls	EDGE	Oral / Squ

full extension three ball bearing metal filing cabinet runners Detail:
Thickness(O/M/I):1.0*1.0*1.2 mm/ 1.2*1.2*1.5 mm
Load capacity: 35kg/45kg(18")
Length: 250-600 mm (10"-24")
Material: Work hardened cold rolled steel
Finish: Zinc-plated
Length: 250-600 mm (10"-24")
Material: Work hardened cold rolled steel
Finish: Zinc-plated
Width: 45mm
Gap: 12.7±0.2mm
Installation: Side installation
Certification: ISO9001
Test: SGS test, 48 hours salt spray test,
Extension: Full extension
Brand name: FGVSLIDE
MOQ: 1000 pairs
Supply ability:100000 pairs per week

Our Services
1. Prompt and flexible quotation
2. Customized package
3. Considerate after-sale service
4. Well-known global market
5. Reliable quality

Test

	SGS TEST
	Passed over 50,000 open-close
	Passed 48 hours salt spray test
	Passed 45 pounds load test
Sample	Sample free and small order can be accepted
Features	Strengthened adjustable screw can widen the adjustable ranges and longer using life.
	thickness : 1.5*1.5*1.5mm
	longer life time,smaller volume

Package


Thickness(mm)	Length(mm)	N.W.(kg)/box	G.W.(kg)/box	CTN SIZE(mm)	pairs/ctn
1.0*1.0*1.2	250	10.95	11.45	270*200*100	15
1.0*1.0*1.2	300	13.14	13.64	320*200*100	15
1.0*1.0*1.2	350	15.33	15.83	370*200*100	15
1.0*1.0*1.2	400	17.52	18.02	420*200*100	15
1.0*1.0*1.2	450	19.71	20.21	470*200*100	15
1.0*1.0*1.2	500	21.9	22.4	520*200*100	15
1.0*1.0*1.2	550	24.09	24.59	570*200*100	15
1.0*1.0*1.2	600	26.28	26.78	620*200*100	15

Company Profile

1.Foshan Shunde Dongyue Metal & Plastic Products Co.,Ltd.(FGVSLIDE Enterprise Limited) is founded in 2002.W an experienced sales team w 13 years in this field.

2.Specialized in procucing different widths high quality slides:53mm/45mm/35mm in full extension and 35mm/27mm/17mm in single extension.

3.Our products are sold to European,USA,Germany,UK,Denmark,Brazil,Iran,Sweden and Japan.

4.Several international famous brands cooperated with us, for example: HAFFLE,WURTH,HAILO,EBCO,EUROFIT etc.

5.Registered own brand FGVSLIDE,some countries w agent already. We are interested in collaborating with importers of furniture hardware, who must be motivated, responsible, and have an established sales network.

6.Our products have SGS test. Including 48 hours salt fog test, extension test (75,000 times of the basic one and 50,000 times of the one with function).

7.Import POM material, using the best electroplating technology from Taiwan.

FQA:
1. What's the MOQ for the first time purchasing?
If make logo and brand package, MOQ is 20 feet container. If there is no need for brand logo and
package, MOQ is 500 pairs per size.
2. Before purchasing, how can we get to know the quality?
We can send sample to you to check. Also customer can appoint some agent to inspect the mass
production quality in our factory to make sure the quality.
3. What will be the loading capacity for 20ft container?
Max loading capacity is 27 tons, but exact loading capacity depends on the slide model you choose
and the country you are from, for further information, please consult from our sales.
4. What will be the delivery time?
Normally is 25-30 days after order confirmed by both parties.
5. What are the payment terms?
TT or Cash or LC,30% deposit, against B/L
6. What should we do if goods are received with some quality problems?
All goods have been inspected during the assembling and packing, the chance to get defective slide is
very rare. If there are some quality problems, such as finish problem.
-------------------------------------------------------------------------------------------------
