Full Automatic Book Case Making Machine
Price: |
US $ 300000/Set |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Product Description

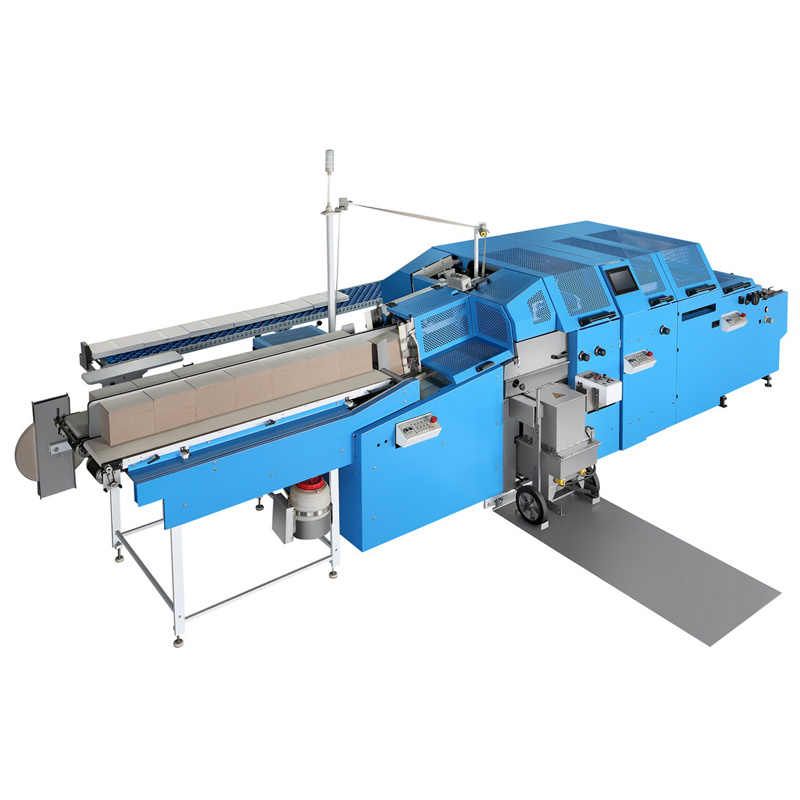

HCM390 Automatic high speed casemaker
Usage:
It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, files etc.
Main Technical Parameters:

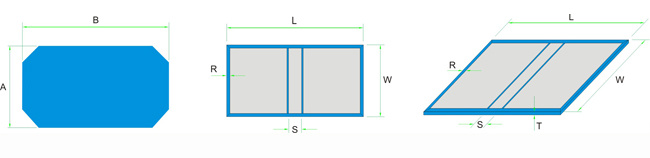

| Model | HCM390 |
1 | Case size(A×B) | MIN: 140×205mm MAX: 390×670mm |
2 | Paper size (W×L) | MIN: 130×220mm MAX: 428×728mm |
3 | Paper thickness | 100~200g/m2 |
4 | Cardboard thickness (T) | 1~4mm |
5 | Spine size (S) | 8-90mm |
6 | Spine thickness | >200g&1-4mm |
7 | Folded paper size(R) | 8~15mm |
8 | Max. quantity of cardboard | 3pieces |
9 | Precision | ±0.50mm |
10 | Production speed | <=65sheets/min |
11 | Power | 8kw/380v 3phase |
12 | Air supply | 280L/min 0.6Mpa |
13 | Machine weight | 5800kg |
14 | Machine dimension (L×W×H) | L6200×W3000×H2450mm |
Remark:
1. The Max. and Min. sizes of cases are subjected to the size and the quality of the paper.
2. The speed depends on the size of cases
3. We don't provide air compressor.
Wenzhou Zhengrun Machinery Co., Ltd. Established in 1997. The plant has 22, 000 square meters modernized workshop, more than 200 employees. Zhengrun has been introduced the international advanced CNC Machining Centers and NC Lathes which has become the unique manufacturer of rigid box and hardcover machinery in the industry who's equipped with many advanced processing equipment in China. We have rights of self-managed import and export. Our company has been admitted to ISO9001 Quality Management System Certificate. The products have been admitted to Europe CE Certificate. Our products are spreading to over 70 countries and regions, such as Europe, America, Africa, Oceania, etc. The sale network can be found all over the world.
For many years' development, our company is devoted itself to developing and researching new products and offering quality products to customers from home and abroad. It always abides by the enterprise idea " Quality Builds Zhengrun Brand". We will strive for manufacturing quality products, prospering the enterprise and creating the international brand ZHENGRUN.
Enterprise's History
--Established on Aug. 6, 1997, Ruian Fuda Printing Machinery Factory is specialized in manufacturing manual die cutting machine.
--In May 2000, the name " Ruian Fuda Printing Machinery Factory" Was changed into Ruian Fuda Printing Machinery Co., Ltd.
--In 2003, the company was admitted to autonomous import and export license.
--In Sept. 2003, our products were reconstructed from the single Diecutting machine into multi-purpose machineries. In the same year, we started to produce semi-automatic gift box maker and semi-automatic case maker
--On May 19, 2005 the enterprise has been admitted to ISO9001: 2000 Quality Management System Certificate.
--In May 2005, the semi-automatic gift box maker ware rewarded the title of " New Product New Technology in Zhejiang Province".
--In Jun. 2005, we started to research and develop the automatic case maker.
--In Jun. 2006, we researched and developed the automatic case maker with success. In the same year, it appeared in the Shanghai International Printing Machinery Show. They won the praise of the customers at home and abroad. Orders rushed to us.
--In Aug. 2006, the automatic case maker was patented by the state patent administration.
--In Sept. 2006, the products have been admitted to CE Certificate.
--In Oct. 2006, the automatic case maker was rewarded the title of " New Product with New Technology of Zhejiang Province".
--In Aug. 2007, the name " Ruian Fuda Printing Machinery Co., Ltd. " Was changed into Zhejiang Zhengrun Machinery Co., Ltd at a provincial level.
--In Oct. 2007, we moved the new address at Ruian Economic Development Zone, Zhejiang Province, China.
--In Nov. 2007, Hong Kong Fuda Machinery Co., Ltd. And we invested and established " Wenzhou Zhengrun Machinery Co., Ltd. "
--In Sept. 2007, we bought 16 acres plant at Zhenglou Industrial Area, Pingyang County, Zhejiang Province.
--In May. 2010, Wenzhou Zhengrun Machinery Co., Ltd. Plant was completed and put into use.
--In 2011, we started to research and develop CM390 High-speed Case Maker.
--In Jul. 2012, we successfully researched and developed CX420 Box wrapper.
--In Oct. 2012, Zhengrun Company was awarded the title of " High Technology Enterprise".
--In Apr. 2013, we successfully researched and developed new machine CM540A Automatic case maker.
--In May. 2013, ZHONGDE Group with all subsidiary company including HuaWei, HuaYue, JinBao, ZhengRun, TianCen hold 10th Anniversary celebration in Beijing.
--In Jul. 2013, we researched and developed NEW automatic rigid box maker RB420 with success.
--In DEC. 2013, we bought 50 acres plant at Xinxing Industrial Area, Pingyang County, Zhejiang Province.
