| Prod Model: |
FBC1000 |
| Clean Level: |
Class 100 @ 209e or ISO Level 5 |
| Number Of Colonies: |
≤0.5 Cells / Dish (φ90mm Culture) |
| Noise: |
≤65dB(a) |
| Power Supply: |
AC, Single Phase 220V / 50Hz |
| Maximum Power Consumption: |
≤1kw |
| Weight: |
300kg |
| Work Area Size (W × D × H)mm: |
1400W*750d*750h |
| Specifications And Quantity Of High Effi: |
980×520×50×1 |
| Efficient Exhaust Filter Specifications: |
690×610×50×1 |
| UV Lamp Specifications And Quantity: |
21W×2 |
| Type: |

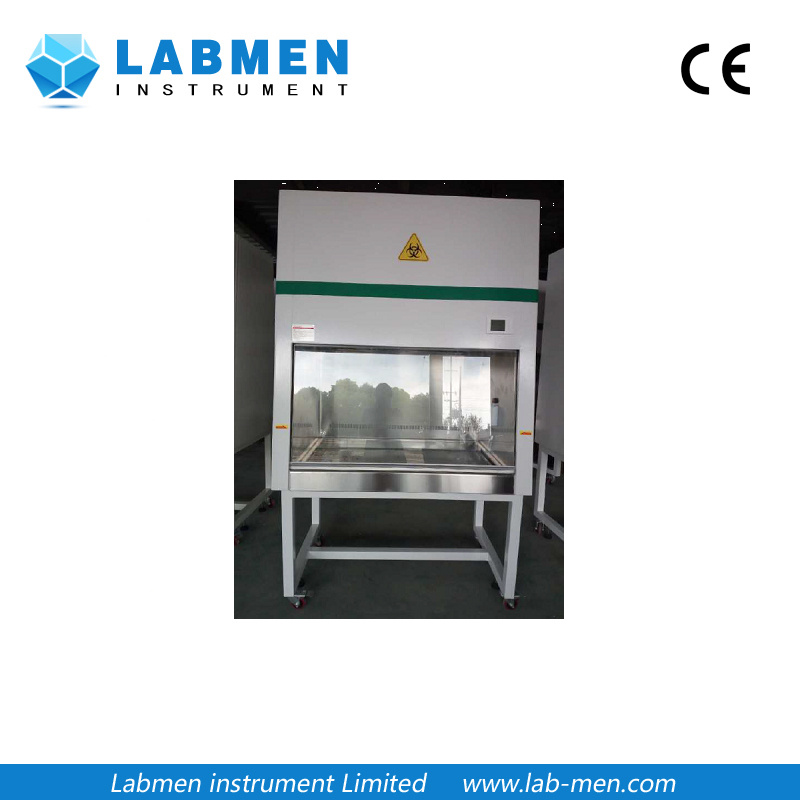

Biological Safety Cabinet |
Product Description
Product Features
1. biological safety cabinet with four negative pressure, namely: the entire device on the left and right sides, rear, bottom wall are negative pressure air duct, so that the work area and the external environment to form air curtain and box double isolation, while working The area is surrounded by negative pressure to ensure that the sample does not leak.
2. the cabinet part of the 1.5mm thick cold-rolled steel plate to enhance the structural strength, electrostatic spraying the surface of the box, the whole device is more stable, the actual vibration half-peak ≤ 4um.
3. the control panel with touch switch, user-friendly design, the machine looks beautiful, easy to operate.
4. the work area of the table and the inside of the device for high-quality 304 # stainless steel, beautiful decay.
5. ultra-efficient filter for the air filter particles, smoke and micro-organisms. Various types of biological safety cabinets, the use of imported ultra-efficient filter (ULPA) filtration efficiency of more than 99.995% (0.1-0.2μmDOP), so that the work space cleanliness of 100. Equipped with dual-channel digital pressure monitoring and electronic alarm system, real-time dynamic monitoring of exhaust and air filter pressure loss, the operating area of the down flow and flow into the air flow rate, two-way detection, when the descending airflow velocity and flow rate When the fluctuation exceeds 20% of its nominal value, the audible and visual alarm will indicate the descending airflow velocity and fluctuation. Front replacement, maintenance filters and fans.
6. safety cabinet window opening height exceeds the provisions of the front window operation mouth height, sound and light alarm, interlock system starts. When the opening height falls back to the specified opening height, the alarm interlock system is automatically released.
7. the glass window with steel coated glass, no light, explosion-proof, broken not splash, anti-ultraviolet. No matter how long, always bright as new.
Technical Parameters:
| Model | FBC1000 | FBC1300 | FBC1600 |
| Clean level | Class 100 @ 209E or ISO Level 5 |
| Number of colonies | ≤0.5 cells / dish (φ90mm culture) |
| Average wind | Inside the door: 0.38±0.025m/s |
| Middle: 0.26±0.025m/s |
| Inside: 0.48±0.025m/s |
| Front inhalation wind speed | 0.48±0.025m/s |
| Gas density | ≤10% (half an hour under 500Pa pressure) |
| noise | ≤65dB(A) |
| Vibration half-peak | ≤4μm |
| Power supply | AC, single phase 220V / 50HZ |
| Exhaust composition | 100% outside the exhaust treatment |
| Maximum power consumption | ≤1KW |
| Weight | 300kg | 350kg | 450kg |
| Work area size (W × D × H)mm | 1000W*700D*600H | 1300W×700D×600H | 1600W×700D×600H |
Outline dimensions of the device
(W × D × H)mm | 1200W*800D*2120H(Up and down split) | 1500 W×800D×2120H
(Up and down split) | 1800W×800D×2120Hmm(Up and down split) |
| Specifications and Quantity of High Efficiency Air Filter | 980×520×50×1 | 1280×520×50×1 | 1580×520×50×1 |
| Efficient exhaust filter specifications and quantity | 690×610×50×1 | 650×610×50×1 | 650×610×50×1 |
| Fluorescent lamp specification and quantity | 21W×2 | 28W×2 | 14W×2 |
| UV lamp specifications and quantity | 21W×1 | 21W×1 | 14W×2 |
