| Prod Model: |
Outdoor 32 Port Fiber Optical Distribution Box |
| Protection Level: |
IP65 |
| Applications: |
FTTH, Telecommunication Network |
| Cable Ports: |
2 Holes |
| Max Capacity Of Splice Tray: |
24 ( Single Fiber ) |
| Max Quantity Of Splice Tray: |
2 |
| Max Capacity Of Main Backbone Cable: |
12 Single Fiber |
| Type: |
Optical Fiber Distribution Box |
| Wiring Devices: |
ODF |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

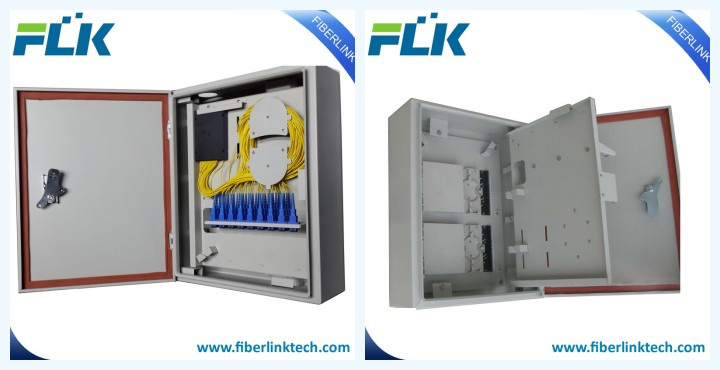

Outdoor 32 Port Fiber Optic Distribution Box Cabinets IP65
Description :
This products is appicable to use in FTTH projext which is used afger fiber optic cable to he buliding , installing in the corridor , basement , room and buliding's outer walls . It may distribute cables after
installed splitters . It also may draw out room fiber optic cables by direct or cross-connections. It is with the functions of mechanical splice fusion splice , light splitting ,wring distributions.
Featurers:
1.High quality cold rolled steel body,electrostatic spraying with water proof powder
2.High quality water proof lock,wall mounted cabinet
3. Operating temperature:-30°C~+55°C,storage temperature: -40°C~+60°C
4. With access to 2 pcs of 12 cores fiber optic cables and up to 32 pcs of customer cables
5.Suitable for multi fiber optic cable access as well
6. Suitable for 36 pcs of SC,FC,ST adapters, easy to installation and maintenance
7.Support branch connection styles
| Item | FDB-0132B |
| Dimension(W*H*Dmm) | 350*450*150 |
| Cable Diameter(mm) | Ф10~Ф14 |
| Cable Ports | 2 Holes |
Max capacity of splice tray | 24 ( Single fiber ) |
Max quantity of splice tray | 2 |
Max capacity of main backbone cable | 12 Single fiber |

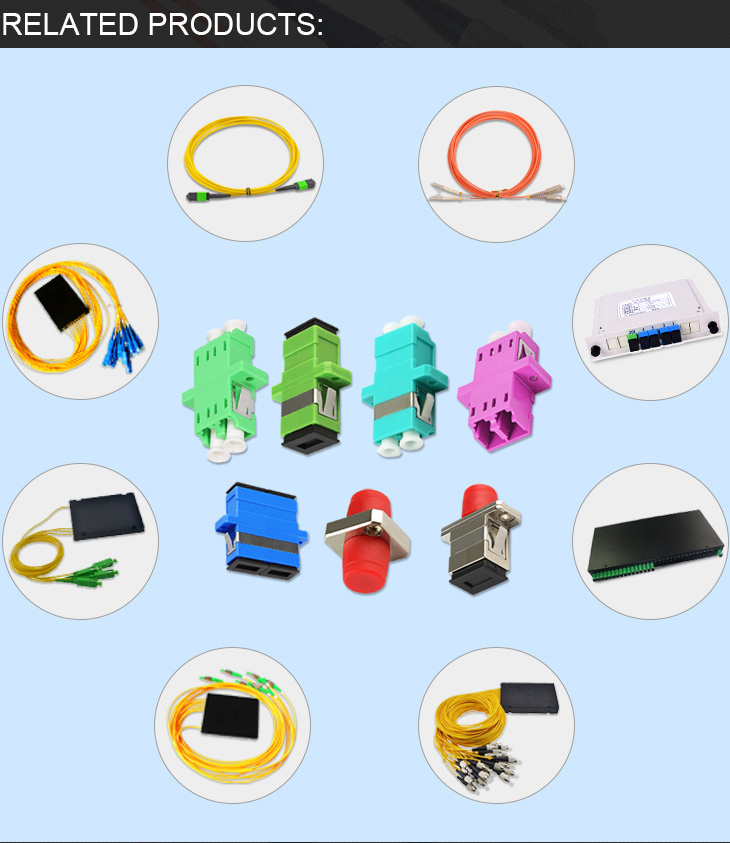

Related products

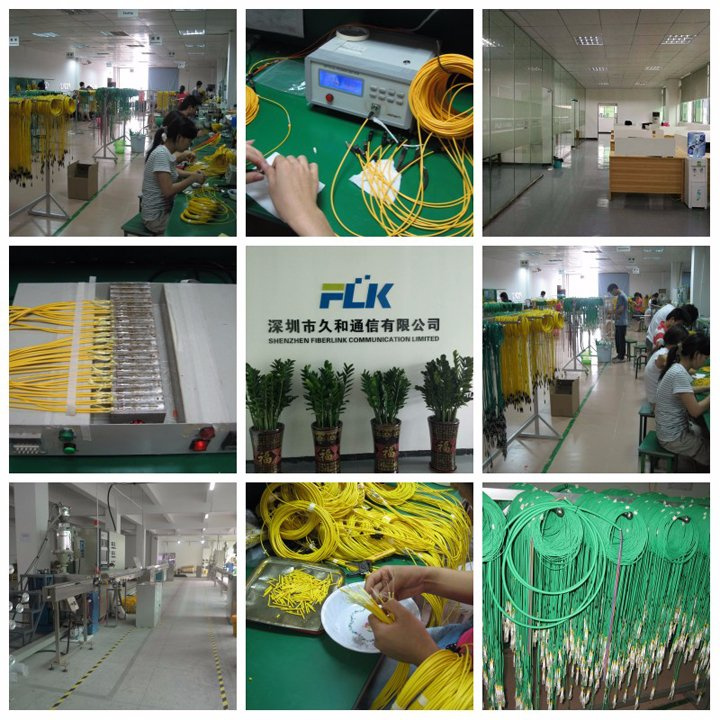

Our fiber patch cord production line:

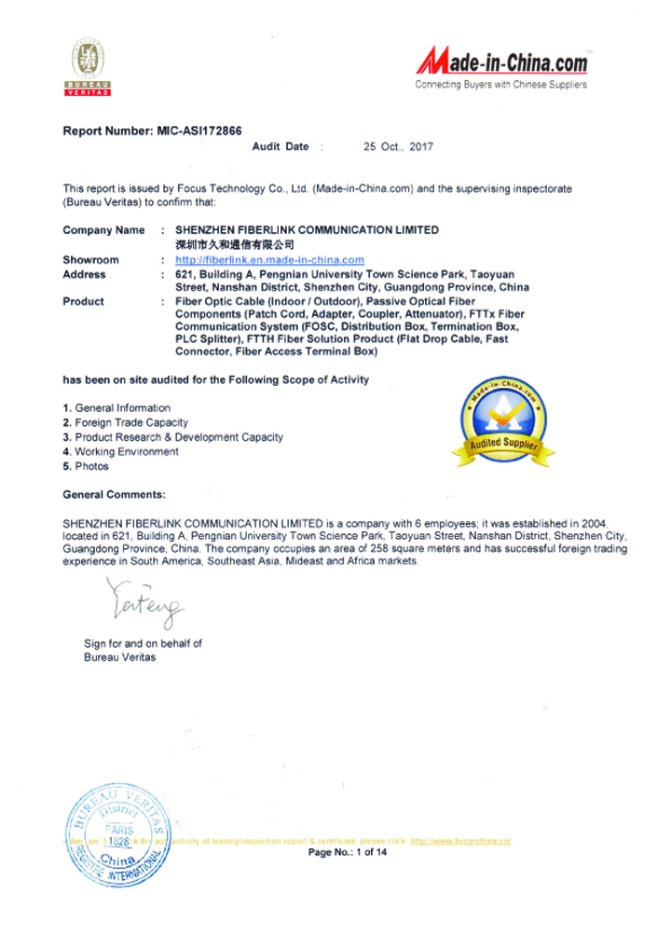

Certifications
