| Prod Model: |
TN-006B-S |
| Color: |
Ral7035, Ral9004, etc |
| Logo Type: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Shipping: |
Sea, Air, Train, Truck |
| Packing Style: |
Assembled or Dis-Assembled |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
Ce. RoHS. SGS |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
RoHS |
| Condition: |
Used |
| Fan Number: |
One or Two |
| Capacity: |
From 6u~ 27u |
Product Description

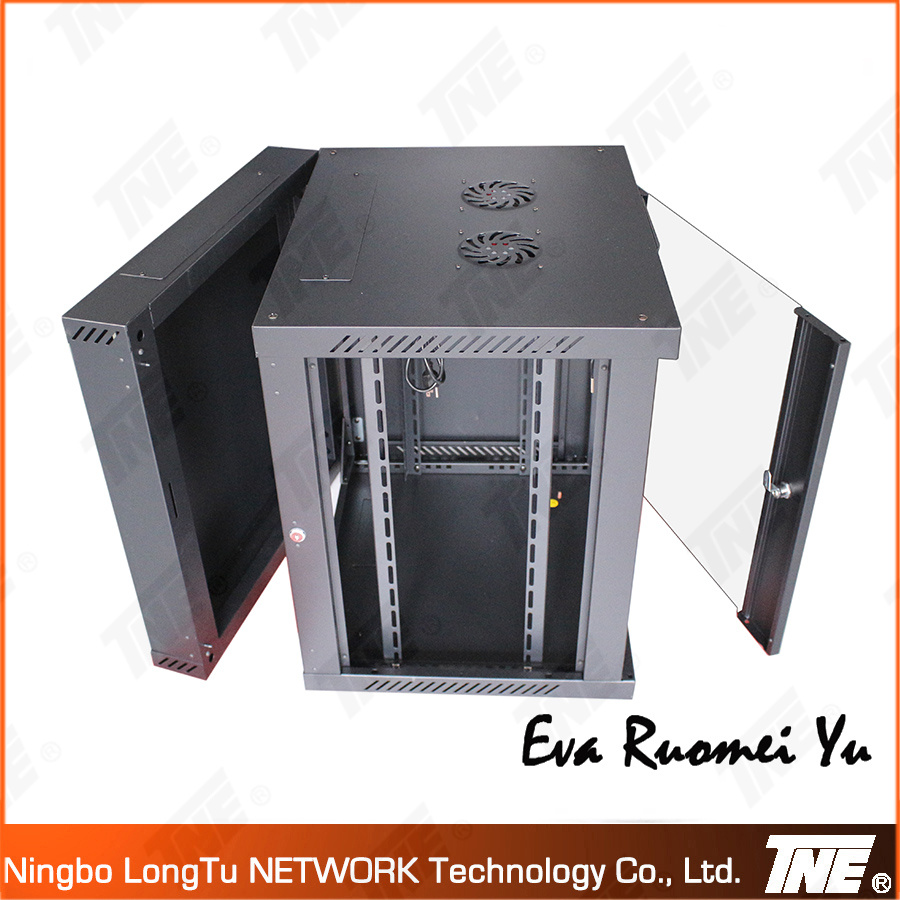

Front and Rear Door Both Can Be Open Wall Mount Cabinet
Descriptions

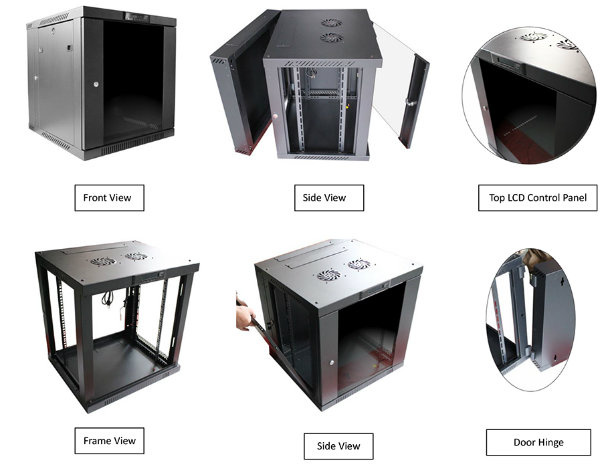

> Two Section/ Double Section Wall Mount Cabinet
> Top with LCD Control Panel (Thermostat Display)
> Can be Disassembled, Flat Packing, Save the Shipping Cost.
> Standing or wall mounting installation
> Adjustable feet and heavy duty castors are optional
> Easy mounting installation
> Removable side panels, side locks optional
> Cable entry on both of top cover and bottom panel
> 120mm fan available (220V or 110V)
> Turning angle of front door is over 180 degrees.
Standard
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 1.50mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Size Form| Model No. | Size |
| | W (MM) | D (mm) | H(mm) |
| TN-006B-S-6506 | 600 | 550 | 368 |
| TN-006B-S-6606 | 600 | 600 | 368 |
| TN-006B-S-6509 | 600 | 550 | 501 |
| TN-006B-S-6609 | 600 | 600 | 501 |
| TN-006B-S-6512 | 600 | 550 | 636 |
| TN-006B-S-6612 | 600 | 600 | 636 |
| TN-006B-S-6515 | 600 | 550 | 769 |
| TN-006B-S-6615 | 600 | 600 | 769 |
| TN-006B-S-6518 | 600 | 550 | 901 |
| TN-006B-S-6618 | 600 | 600 | 901 |
Optional Accessory
> Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
> 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
> 1U, 2U support board
> Vertical Cable manager
> 19'' Power distribution unit(PDU)
> 19'' Blanking plate 1U, 2U, 4U
> Heavy duty castor, Heavy duty castor with braker
> Optional lock for side panels
> Earth kit
And so on...
FAQ
1) What is your Payment term?
---TNE accept T/T, L/C, Western Union.
2) What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.- Year 2003 TNE Founded
- Year 2006 TNE gains Export and Import Right
- Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
- Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
- TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.

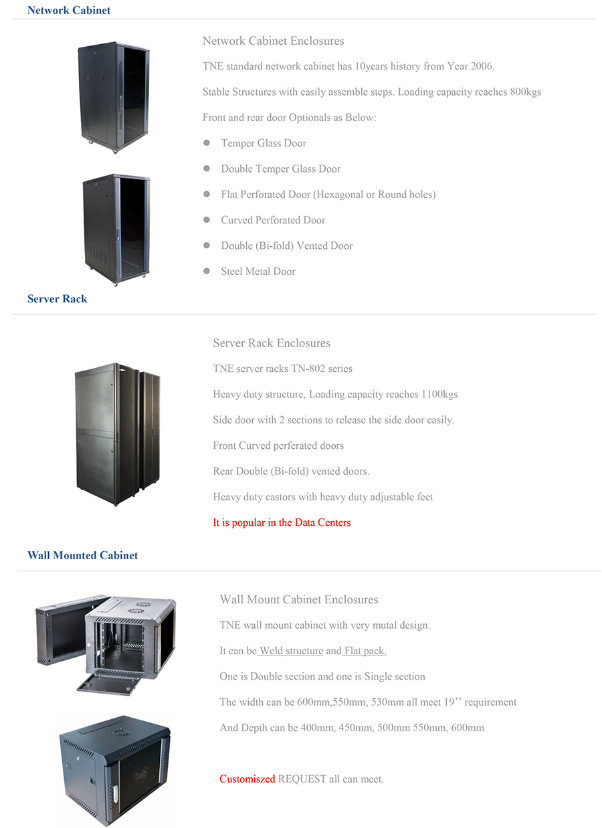

TNE mainly Products as below:- Network cabinet
