| Prod Model: |
1325, 1212, 1224, 1530, AND customized |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Manual |
| Working Area: |
1300*2500mm |
| Table Size: |
1440mm*3000mm |
| Max. Working Speed: |
15m/Min |
| Type: |
Engraving Router, Woodworking Engraving Machine |
| Color: |
Customized |
| Z Working Area: |
200mm |
Product Description
Product Description

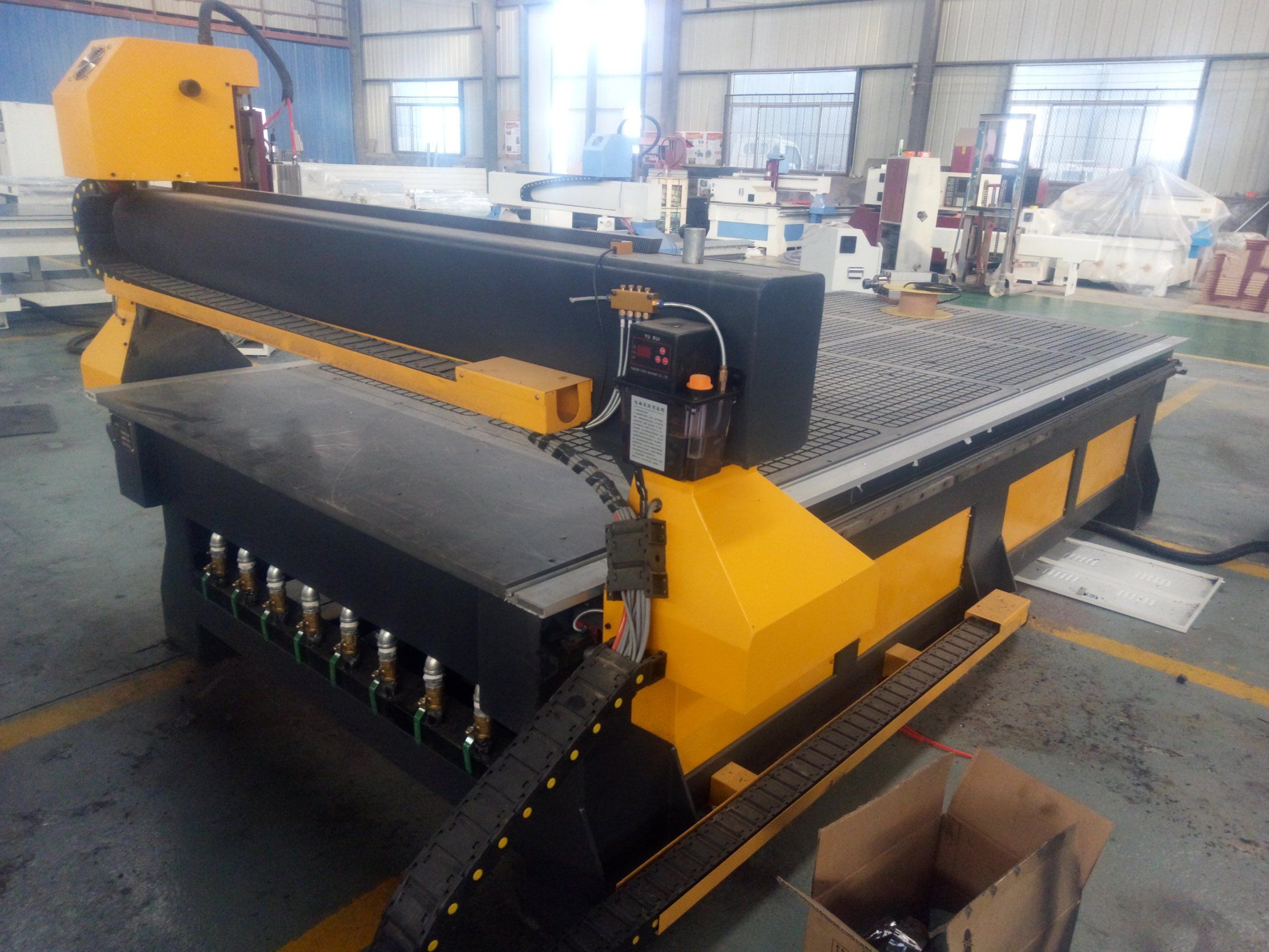

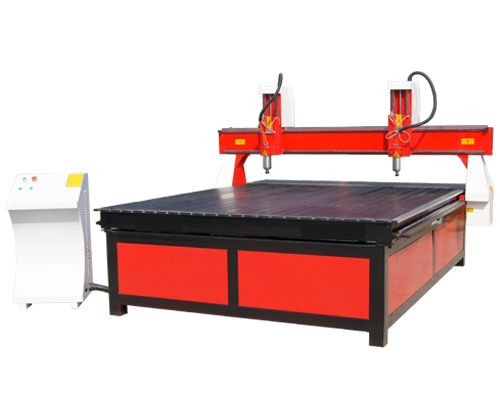

Multi spindle CNC router machine AC-1325
Our Company is a professional manufacturer for CNC Routers, mainly used for advertisement, woodworking, stones, furnitures, etc.
in the past 10 years , we only did OEM business for my local city (JINAN) companies and factorise
we can accept special type cnc router order.Characteristic:
Axis under the control of software, high automation;
High speed and efficiency, max. Speed over 14m/m;
The Antique Furnture Woodworking Machine is with high power spindle and good rigidity;
Two motors and unique two rack driving, No deformation and vibration after a long-time work at high speed.
The main application field of industry:
1, Woodworking: Three-dimensional wave plate processing, cupboard doors, wooden doors, wooden doors process, doors, screens, process window processing, video game cabinets and panels, computer table and plate Auxiliary furniture products processing.
2, advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, plastic sheeting, PVC pipe a variety of materials advertising the production of decorative products.
3, metal industry: A sculpture of copper, aluminum, iron and other metal molds,
4. Stone Granite, marble, Qingshi, sandstone, and other stone carvings
5, other industries: A variety of large-scale relief sculpture, video carving, widely used in process industries

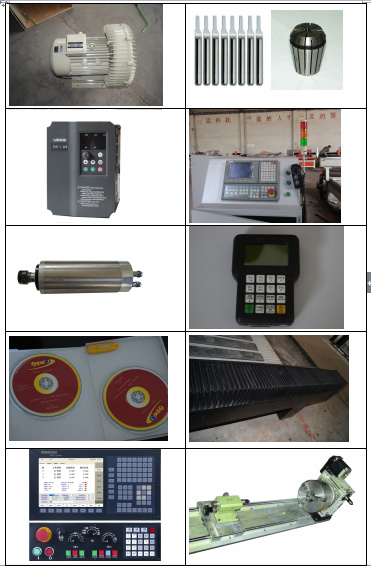

Standard Configurations
Lathe Bed with aluminum cast table
Three axis with imported round guides and double ball screw nuts
NCSTUDIO system
1.5KW water-cooling transducer motor
Leadshine driver.
Model
Technical specifications :

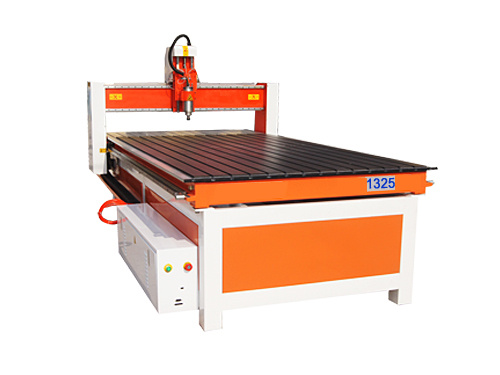

Model | AC-1325 | optional |
Working area (X*Y*Z,mm) | 1300*2500*100/1300*2500*200 | customization is available |
Machine structure | steel structure lathe bed and T-slot of sectional material | Square tube lathe bed ,vacuum system |
Working holding | By clamps | by vacuum |
Overall dimension | 3100*1810*1750/3100*2060*1850 | |
Precision(mm) | 0.07 | |
Position accuracy(mm) | 0.02 | |
Repeatability(mm) | 0.02 | |
Lding speed (mm/min) | 15,000 | |
Working speed(mm/min) | 10,000 | |
Spindle | 2.2kw/3kw,water-coolin(0-24000rpm) | air-cooling(0-18000rpm),multi-head,specified power |
Available tools(mm) | φ3.175~φ12.7 | Automatic tool changer |
Drive system | Stepper motors | Servo motors |
Working voltage | AC220V±30V,50HZ | AC380V±30V,50HZ for 2.2kw spindle |
Command code | G Code(*.nc,*.mmg,*.u00,etc),*.eng | |
Control system | NcStudio/DSP Hand-held | DSP |
Compatible software | Window98/XP/7 G code | |
P.S.
All the parts of machine can do some changes to meet your requirements ,

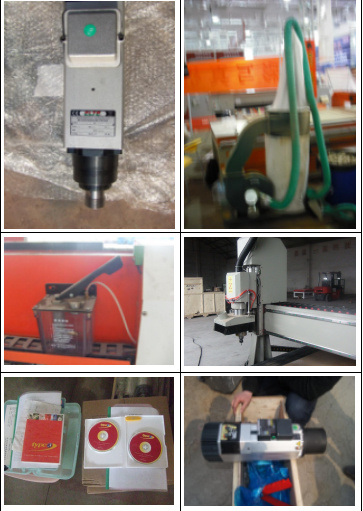

such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can
be customized and so on .
Guarantee&Aftersales Service
1.Guarantee for two year
2.24-hour technical support by email or phone
3.User-friendly English manual and video CD for machine using and maintaining
4 .Providing free operation training service in our factory.
FAQ
1)This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype and whatsapp.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping
b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
Why choose us?
<1>. Adhere to the service tenet of customer first, the product quality as our life, the customer's source is the enterprise's wealth.
<2>. Excellent machine with high ratio of price, quality and performance, which could bring continuous profit to your business.
<3>. Credit and professional manufacturer with over 10 years history, mature advanced technology and humanization management.
<4>. Rigorous and strict quality control and inspection, to make sure each machine in best working condition before delivery.
<5>. Quick and convenient One-stop services, which will save the clients' trouble.
<6>. Perfect after-sales service system:
>>The engineers are available for being dispatched overseas for installation, commissioning or even after sales service.
>>Remote professional technical support is available around the clock, by phone or online instant messenger softwares, such as skype, MSN, whatsApp etc..
>>Free training is available in our factory, to teach you how to properly use the machine or even the software.
>>Spare parts could be supplied in the whole life of the machine, which is free in warranty time.
Guarantee&Aftersales Service
1) Free training ;
2) 24 months for machine,long life spare parts ;
3) 24 hours technical support ;
4) Door-to-door service supported ;
5) English software, user manual and operation CD router cnc
Look forward to your enquiry on our all kinds machines you can choose.
JINAN SAICHENG MACHINERY CO., LTD
(jinan acrossin imp&exp trading co., ltd)
+86 18615216576 +86 531 67811996
http://acrossin.en.made-in-china.com/
www.scygjx.com
Our company manufacture CNC machinery.
High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
We are belong to JINAN ACROSSIN IMP&EXP TRADING Co., Ltd,
We are a subsidiary corporation of it.

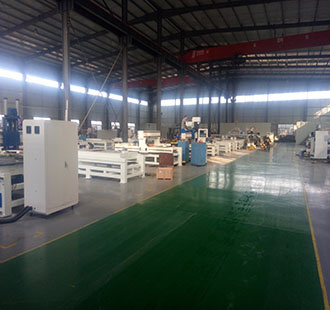

JINAN SAICHENG MACHINERY Co., Ltd is established in 2007, and be good at CNC router field in Chinese market, and get good feedback, Perfect quality and best Aftersale. Our products include woodworking CNC router, stone CNC router, laser machine, plasma machine, we can Produce many kinds of CNC router following client requirement.
JINAN ACROSSIN IMP&EXP TRADING Co., Ltd is a group company, it is established in 2006, scope of business include Machinery parts, building hoist, tower crane, and ball screw, and CNC machinery.
The continuously improving performance of our machines wins great trust of our customers. Our products are not only sold in Chinese maekrt, but also exported to Europe, north and south America, central and west Asia and other regions.
Of cause, we can produce every kind of CNC router, and We accept orders according to our customers' requirements.
