| Prod Model: |
WL3826 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Light Blue |
| Automatic: |
Semi-Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Driving Force: |
Motor |
| Type: |
Glass Cutting Machine |
| Certification: |
ISO |
Product Description

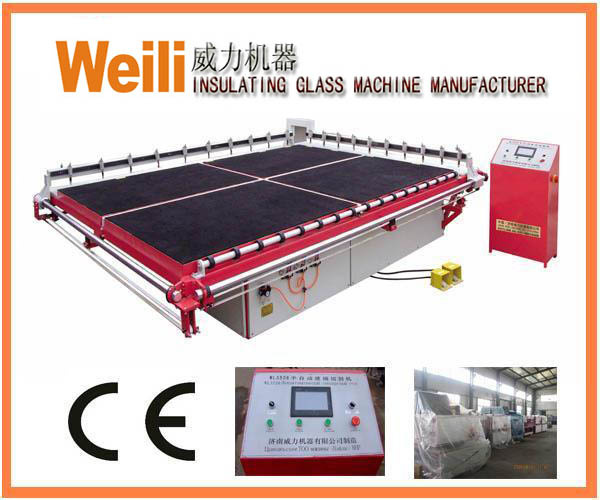

Glass cutting machine---WL-3826 Semi-auto Glass Cutting Machine
Features:
1. Double mechanical movement bridge system, automatically driving by motor.
2. Multi cutters can be equipped on the bridge for bulk cutting.
3. PLC control system for easy setting of cutting speed and size.
4. Imported plastic table surface, bearing and rail is more reliable and endurable.
5. Air float cutting table make it easy loading and unloading glass sheet.
6. Auto breaking system is optional
7. Auto glass transportation system is optional
8. Digital measurement display system is optional
9. Buyer's special specifications are available.
Main technical parameter
Product Name
| Type
| Max Cutting Size(mm)
| Dimension
(L*W*Hmm)
| Total
Weight
(KG)
| Cutting Accuracy
(mm/m)
| Cutting Speed
(m/min)
| Power (KW )
| Cutting thickness
| Power
Supply
|
Semi-auto
Glass Cutting Machine
| WL3826
| 3660*2440
| 4700*3200*900
| 2800
|
±0.2
|
0-120
|
≤ 8
|
1.5-19
|
380V 3-p
50Hz
|
WL3526
| 3300*2440
| 3608*2500*1350
| 2300
|
WL2621
| 2440*1830
| 3100*2500*1350
|
1800
|
Jinan Weili Machine Co., Ltd is the member of China Glass Machinery Equipment Committee and the National Insulated Glass Committee. The company is in the service of construction glass and glass-use industries. It is mainly specialized in producing door-window of energy and conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to the countries in Europe, America and Southeast Asia.
Jinan Weili Machine Co., Ltd is wildly accepted by customers from home and abroad.
New Century/ New Image/ New Weili.
Strong market competition consciousness.
Makes us always ahead of the advanced technology.
Honor acquirement, quality affirmation.
The most sincere service and the superior quality will offer to you.
Weili, in new image
Develop with you hand in hand to create the future.
Do business with whole heart, and treat others with great sincerity.
We regard honesty as the basis of the business, and sharing as the soul.
While we try our best to make each product perfect, We make efforts to become the giant of service. We respect the customers, understand them and communicate with them friendly. We regard the customers as our partner, and provide them with amazing service. To offer high-quality products and satisfying service is also to accomplish ourselves. We promise sincere service consent 100 years.
We believe when we deal in our products, we are dealing in trustworthy at the same time.
So be Weili, do business with whole heart, and treat others with great sincerity.
