| Prod Model: |
CW-A0005B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specific Use: |
Hospital Bed, Patient Bed |
| Material.: |
Metal |
| Metal Type: |
Iron |
| Headboard/Footboard: |
ABS Headboard/Footboard |
| Handrails: |
Four Pieces of Detachable ABS Handrails |
| Size.: |
2150X1050X450/700mm |
| Wheels: |
Four Silent Wheels with Central-Controlled Braking |
| Packing.: |
Wooden Box |
| OEM&Design: |
Available |
| Warranty: |
12 Months |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Folded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO13485 |
Product Description

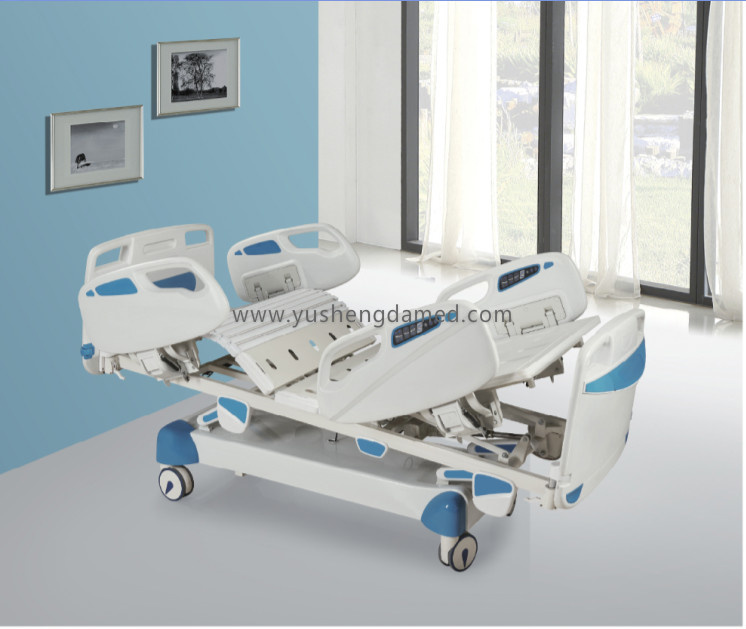

5 Functions foldable Electric ICU Hospital Bed CW-A0005B
Specifications:
| Overall size | 2160x1040x440-680mm |
| Headboard/footboard | ABS head &footboard can be removable. |
| Bed surface | Made of cold-rolled steel plate |
| Handrails | Four pieces of detachable ABS handrails |
| Wheels | Four silent wheels with central-controlled braking system, φ125mm |
| Motor | Quiet and robust electric actuators provide reliable operation. Remote handset control of all electrically operated functions and movements. |
| Weight load | Fully tested sturdy construction capable of taking a maximum user weight of up to 250kg |
Function:
Backrest max upward angle
| 75° |
Footrest max upward angle
| 45° |
Height adjustment
| 450-750mm |
Trendelenburg
| 30° |
Anti-trendelenburg
| 30° |
| Specifications |
| Product Name | Medical Bed(electric) |
| Model Number | CW-A0005B |
| Dimension | 2160*1040*440-680mm |
| Mateiral |
| Bed board | cold rolling steel |
| Bed head/foot board | ABS |
| Bed side rails | ABS |
| safety |
| Certificate | CE, ISO13485 & ISO9001 |
| Guarantee | One year |
| Function |
| Back angle | 0~70°±5° |
| Leg angle | 0~40°±5° |
| Up and down | 450~720mm |
| Forhead | ≥ 12° |
| Inclined | 0-12°
|
The Detailed Information :
* High quality ABS engineerlng plastic for bed head and foot boards, ABS four pieces of barriers; nice appearance and easy to equipped;
* Bed plates are made of punch formed cold rolling steel plates. Bed frames and bed legs are made of high quality pipe steel. Surface processed by secondary acid pickling, phosphating, static plastic spraying, then baking in constant temperature, so the surface layers are coated brightly and firmly, and meet the national standard
* Equipped with 150mm diameter central control caster with high stability, the bed can be rotated flexibly and braked reliably;
* Fold angle 0~70 ° ± 5 ° on the back, leg fold angle 0~40 ° ± 5 °, total lift 450~720mm, the bed can be inclined 0~12 ° forwards and backwards;
* Linear motor, with UL, CE/EMC+LVD and many other safety certifications;
Why choose us:
we got production and business certification from Chengdu food and Drug Administration
we got business license from Chengdu City Administration of industry and commerce
we got products certificate of registration and have checked in the website of SFDA
we have accepted the onsite check from SFDA every quarter
we finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of "Support Healthy Life", and our company spirits are quality, service,trust,thanksgiving;
Chengdu Yushengda Technology Co., Ltd. Is a hi-tech limited company engaged in developing, producing and selling medical ultrasonic diagnosis apparatus. The company has high-qualified professional stuffs in researching, producing, marketing and management. There's a brand-new manufacturing plant and advanced suit of equipment for producing and inspecting the products. It Can produce 5, 000 sets of ultrasound scamner and more than 10000 hospital bed per year.
The YSD series of B-mode ultrasonic diagnosis devices adopt super-scale integrated electro circuit and new SMT technic. The quality of products is stable and credible. It has passed the medical ultrasonic quality monitor and inspection center. The technical and safe standards are all conformed to the GB10152-1997. Since 2003, it was awarded "high-quality, keeping regulation, good faith" honored enterprise of Sichuan.
The spirit of the company is"unity, sincerity, factualness, innovation". We all try our best for"true feelings to customer, diligent permanently for innovation, improving continuously for quality, creating brand by sureness", which makes more satisfaction to customers. The company has been carried out the quality managing system of YY/T0287-2003, won the certificate of medical device quality managing system. The products are sold to domestic markets and overseas markets, such as Europe, Africa. The products are becoming more and more popular.
We'll stick to our policy and work harder all the time in order that we can provide more and better products, and making contributions to the development of national medical devices and people's health!
