First-Class Disabled Accessible Wheelchair Vertical Lifting Table
| Price: |
US $ 2050-5060/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HTVL |
| Platform Size: |
1.0*1.5m and as Per Your Requirement |
| Material: |
Spraying Plastics or Stainless Steel |
| Platform Height: |
600-10000mm |
| Carrying Capacity: |
Weight Level |
| Driven Type: |
Hydraulic |
| Running Mode: |
Moving |
| Feature: |
Safe, Anti-Skid, Anti-Drop |
| Application: |
Wheelchair Lifting Table |
Product Description

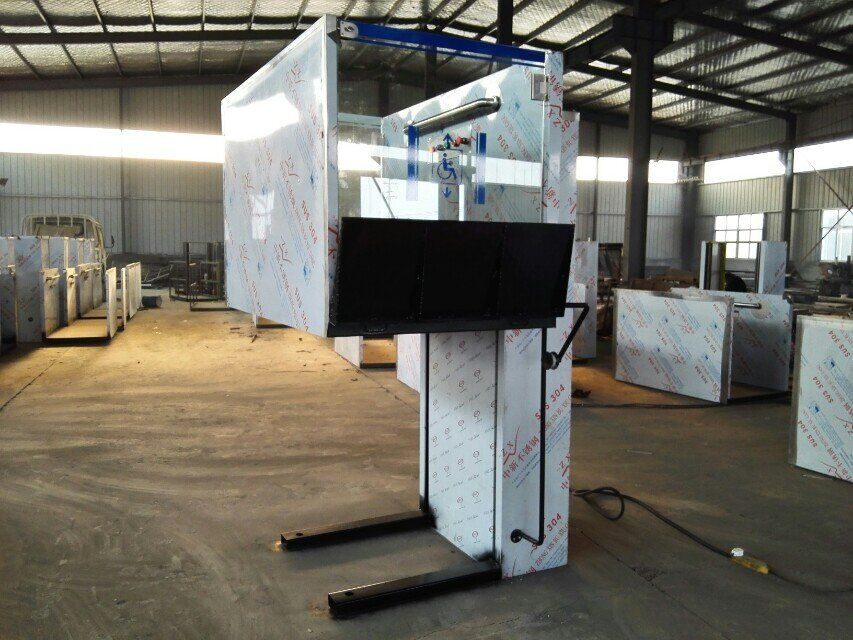

the disabled accessible wheelchair vertical lifting table
product decriptionOne of the most common challenges faced by wheelchair users is going through steps in public or private areas.If you are considering an alternative to your current method of going up and down stairs,
a wheelchair lift might be your best choice. Ourdisabled accessible wheelchair vertical lifting table is a short rise vertical elevating system. This durable and easy to use vertical lift is suitable forIndoor or outdoor applications requiring vertical transportation up to 6 meters. specification | Model | Platform size(mm) |
Load(kg)
| Lifting height(m) | Package size(mm) |
| HTVL0.25-1.0 | 1200*1000 | 250 | 1.0 | 1600x1300x1550 |
| HTVL0.25-1.5 | 1200*1000 | 250 | 1.5 | 2100x1300x1550 |
| HTVL0.25-2.0 | 1200*1000 | 250 | 2.0 | 2800x1300x1550 |
| HTVL0.25-2.5 | 1200*1000 | 250 | 2.5 | 3300x1300x1550 |
| HTVL0.25-3.0 | 1200*1000 | 250 | 3.0 | 4000x1300x1550 |
| HTVL0.25-3.5 | 1200*1000 | 250 | 3.5 | 4500x1300x1550 |
| HTVL0.25-4.0 | 1200*1000 | 250 | 4.0 | 5000x1300x1550 |
the disabled accessible wheelchair vertical lifting table can be customized as you required product show
Product detailsControl system

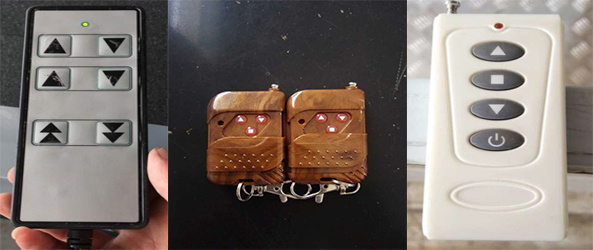

You can control the wheelchair lift by control panel, remote controller or control button on ground, it is very
convenient.

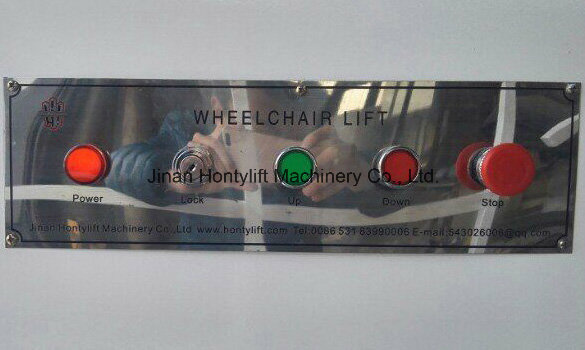

A: Control panel
B:Manual valve and emergency stop they can make the machinary go down safetly in case of no power or something urgent
C: control bottonsthey can be inclined or remote controlling the machinary for your convenience

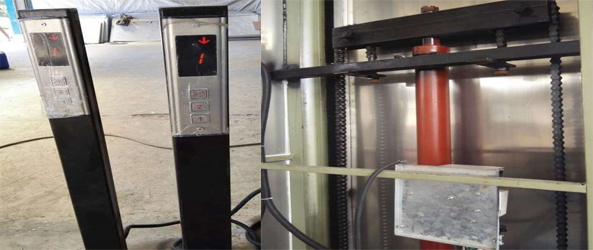

D: Post switch, it can link with the lift to control it up down, for people call the lift.
- we provide two for one lift.

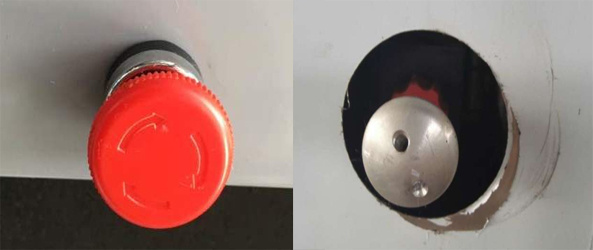

Safety protection device1) Emergency Stop: The lifting and lowering process can be stopped immediately
By pressing the emergency button.
2) Safety device:
Safety Interlock: Lock the platform when it is out of control.
3) Safety Sensor: The operation must be stopped immediately the safety edge meets obstacles during operation.
4) Emergency lowering: The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
5)Auto-flap: Turn up after lifting . Application

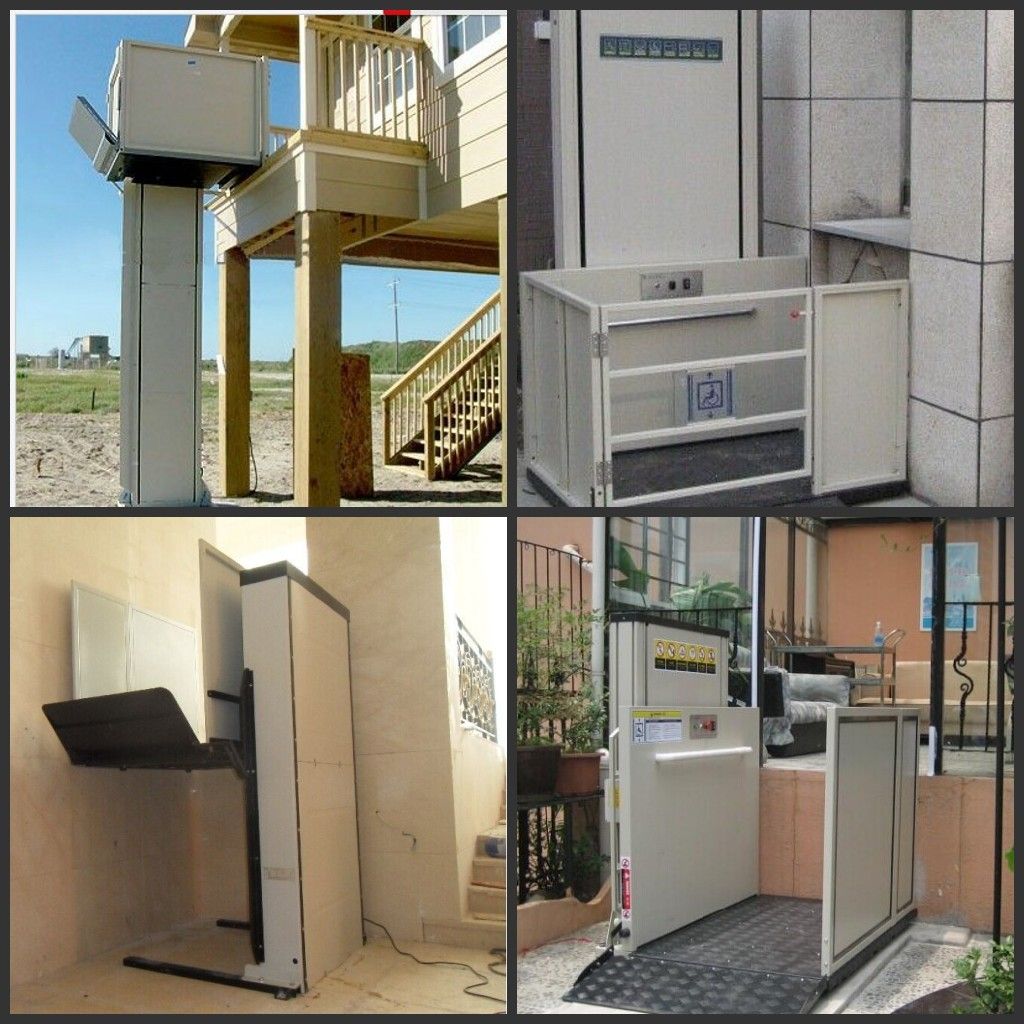

The disabled accessible wheelchair vertical lifting table is widely used in residential areas, hotels, administrative offices buildings, subways, banks, stadiums, hospitals and other public places. For the aged and disabled people.
Our company InformationHONTYIIFT MACHINARYco.ltd has devoted itself to the research and development, design and manufacture, salesand service of scissor lift, cargo lift and other hydraulic equipment. As a more than 8 years
export experience supplier of hydraulic equipments supplier, Sinicmech machinery has
more than 20000 square meters producing shop and assembly shop.
That we have many advanced production equipment for cutting steel structure, machine
parts, including scissor structure, platform, hinge pin, beams, articulated boom and other
small parts. which made the precise scissor lift structure and boom lift, beams, and even
the small needed parts, this is a great improve for our products quality and user's safety. Our services
1. Presale service:
Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2. In sale service:
We provide free guidance of installation and debugging and free training of operation, care and maintenance.
3. After-sale service:
One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's maintenance and reparations.
4. Quick responses:
we have a complete service network, hotline(86-531-88890369) services for 24hours and assist you to solve the problem in a short time.
5. Parts supply:
we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
If you are interested in the disabled accessible wheelchair vertical lifting table ,please contact us .
