| Prod Model: |
FRD-II-4002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White Grey Ral9002 |
| Open Type: |
Push-Pulling |
| Usage: |
Office |
| Customized: |
Customized |
| Material: |
Galvanized Steel Sheet |
| Door: |
Drawers |
Product Description

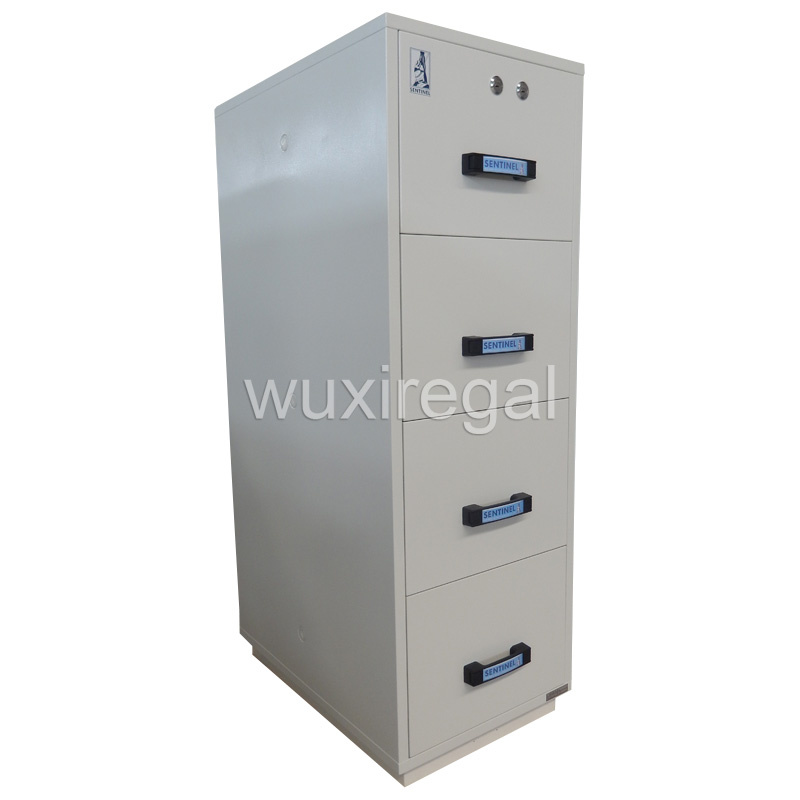

UL750FRD-II-4002
Depth: 750mm
Dimension: 1569(H)*551(W)*750(D)mm
62"(H)*22"(W)*30"(D)
Packing size:1718(H)*570(W)*800(D)mm
68"(H)*22"(W)*31"(D)
Inner size (Paper drawer): 294(H)*388(W)*562(D)mm
12"(H)*15"(W)*22"(D)
N.W.: 392KGS G.W.: 406KGS
Locking:Two turn key locks at top drawer giving control to all drawers
Thickness:
Body: 50mm
Front of drawer:72mm
Packing:
Each cabinet to be wrapped all over with PE airmat, then protected with foam material sheet in the front and at the top of the cabinet and covered a corrugated carton on the pallet.(wooden crate is available with extra charge)
Model No.
|
External Dims
HXWXD(mm)
|
Packing Dims
HXWXD(mm)
|
Weight(KG) |
Loading for 20'
container
(units)
|
Loading for 40'
container
(units)
|
|
Net |
Gross |
|
FRD-II-4002 |
1569x551x750 |
1718x570x800 |
392 |
406 |
28 ~34 |
58~63 |

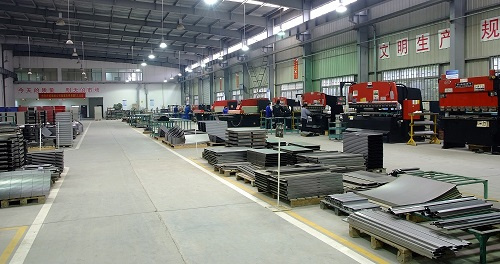

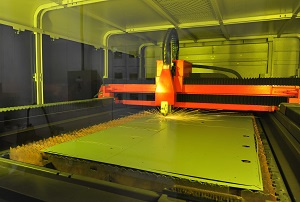

Wuxi Regal Security Technology Co., Ltd., a wholly Malaysian-owned manufacturing company, is located at Wuxi, Jiangsu province near Shanghai. With a high-tech production team and advanced digital-control steel processing equipment, our company is the leading maker of fire-resistant filing cabinets (or FRDs), anti-magnetic cabinets and industrial safety cabinets in Asia. Its three established brands-Regal, Techbird and Sentinel, have gained wide acceptance at home and abroad.
Our newest cabinet series, namely FRD-II, has been rigorously tested in October of 2007 by American Underwriters Laboratories ( UL), one of the world's top independent testing institutions. One 4-drawer sample has been tested and passed UL's 2-hour fire endurance and the explosion test, for fire protection of paper-based documents. With this success, the FRD-II series have complied to the requirements of UL Standard 72 Class 350 for fire protection.
The fire-resistant cabinets have the options of 2, 3 and 4 drawers, with provision for a customer-specified choice of various locking systems (of key, mechanical, etc. )
Welcome to your inquiry!
