| Prod Model: |
PSG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contain: |
Fire Hydrant, Foam Tank, Fire Hose, Hose Reel |
| Inlet Size: |
Dn65 |
| Size: |
500*330*1200 |
| Working Pressrue: |
0.6~0.8MPa |
| Installation: |
Ming-Mounted |
| Material: |
Steel Framed Glass Type |
| Resettlement: |
Hang-Mounted |
| Door Type: |
Double-Door Style |
Product Description

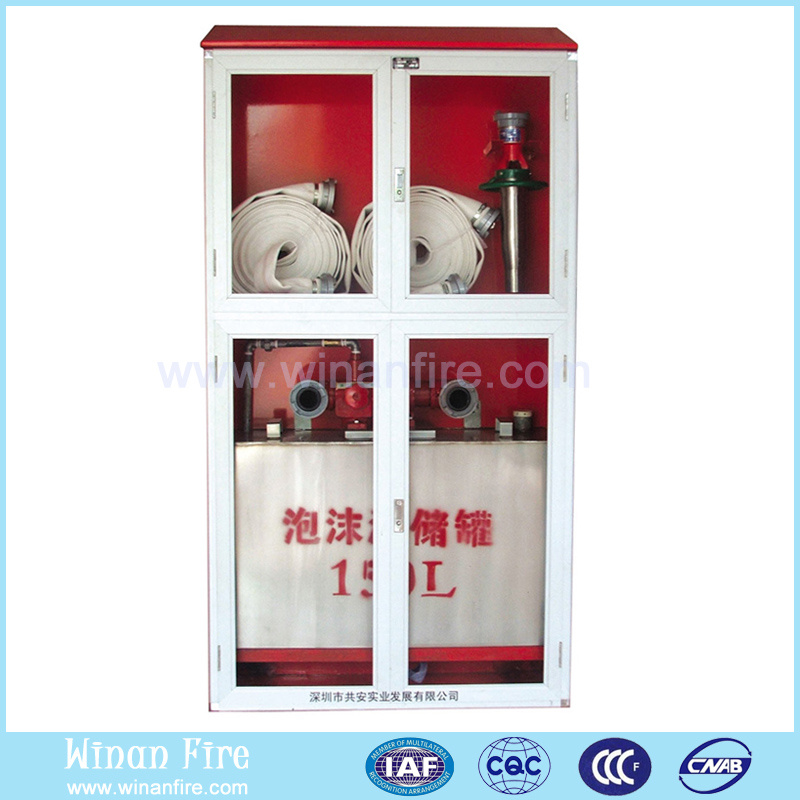

The PSG series Outside foam hydrant cabinet is mainly consist of cabinet, fire hose reel, foam concentrate tank, proportioner, foam gun and dry powder extinguisher. It can either apply in foam extinguishing system or water spray extinguishing system. Close the foam valve and put out the fire with water when applied as water spray extinguishing system.
This device is easy to use that it can operate as long as there is pressure water. It can also used with hydrant system that to connect the outlet of the hydrant. The foam extinguishing system is used to the liquid combustibles fire and insoluble and uncharged solid combustibles fire, for the charged solid and gas combustibles fire, there are dry powder extinguisher available in this system.
Range of Application:
1. Highway tunnel, railway tunnel.
2. Chemical factory workshop, storeroom, garage, hangar.
3. Marine, wharf
4. Other crowded entertainment venues and public place.
Technical parameters:
| Model | Foam Tank
Capacity (L) | Flow Range
(L/S) | Spray DIST
(m) | Inlet Size | Working Pressure
Range (MPa) | Expansion
Ration |
| PSG 30 | 30 | 0.56~0.68 | ≥6 | DN25 | 0.6~0.8 | ≥4 |
| PSG 50 | 50 |
Notes: we make available customized design for our clients
The Shenzhen Winan Industrial Development Co., Ltd. Was set up in 1995 with registered capital of 13, 680, 000RMB. We specialized in manufacturing fire-fighting Equipment for 20 years and we devote to provide clients with high quality & reliable products.
The company now has a large area of industrial workshops of more than 10000 square meters. We possess all kinds of advanced producing equipments, sophisticated manufacturing process and modernized testing center. Our products contain foam system, sprinkler system, fire monitors, fire hydrant, water mist system and valves.
Winan fire-fighting passed the ISO9001: 2000 Quality Management System Certification in 2001 and we also passed the CCCF Product Quality Certification of Ministry of Public Security fire products in 2004. Products manufactured by Winan fire-fighting were assessed as the "Chinese high-quality brand-name products" by Chinese Quality Management Juries. The company was assessed as the "AAA" honest enterprise by Ministry of Commerce Economic Academy and it is the member of Chinese Fire Protection Association.
Products made by Winan fire-fighting had won a number of national patents after decades of innovation and we believe that we can do better in our industry!
