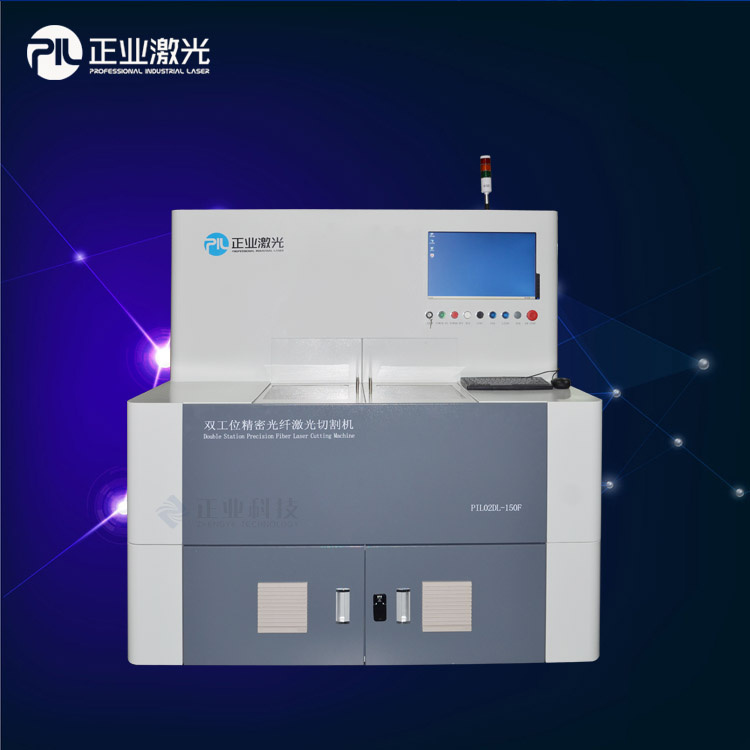

Fiber Laser Cutting Machine, Double-Table, Higher Efficiency

Fiber Laser Cutting Machine, Double-Table, Higher Efficiency
Price: US $ 90000-100000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: PIL02DL
Application: Metal Cutting for All Industries
Material: Metal Materials
Power: 150W,500W

Product Description

USAGE
The machine is equipped with imported fiber laser, natural granite base, imported linear motor, double workstation, and stationary gantry structure. It is widely used for IT, automobile, LED, jewelry, precision machinery industry, etc.

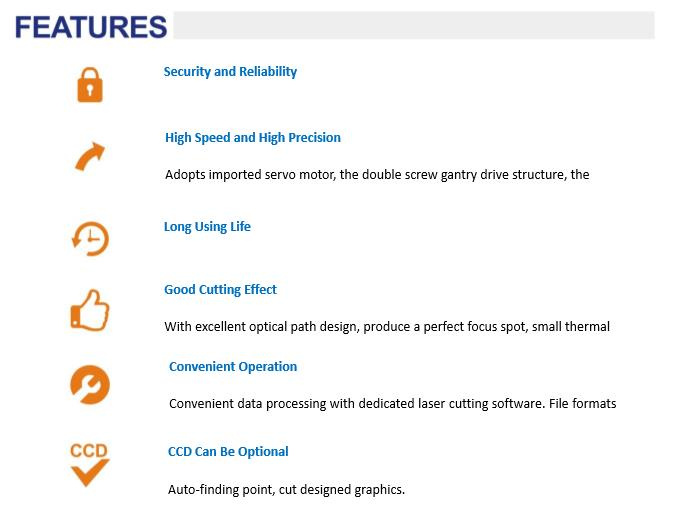

ADVANTAGE
1.Security and reliability:High security and reliability of marble base as well as fully enclosed design.
2.High speed and high precision:Adopts imported servo motor, the imported guide rail, stationary gantry structure, imported NC system. The machine has good performance with high cutting speed, smooth corner and high stability.
3.Long using Life:The machine is with long life using the imported fiber laser. High efficiency photoelectric conversion,
4.Good cutting quality:Adopts imported cutting head, small slit width, smooth cutting edge, low heat-affected.
5.High production efficiency:With double work station design, high production efficiency.
6.Convenient Operation:Convenient data processing with dedicated laser cutting software. File formats include DXF, PLT, etc. Interface is simple and friendly, easy operation.
7.CCD can be optional:Auto-finding mark point, work base on the designed graphics and position.

APPLICATION

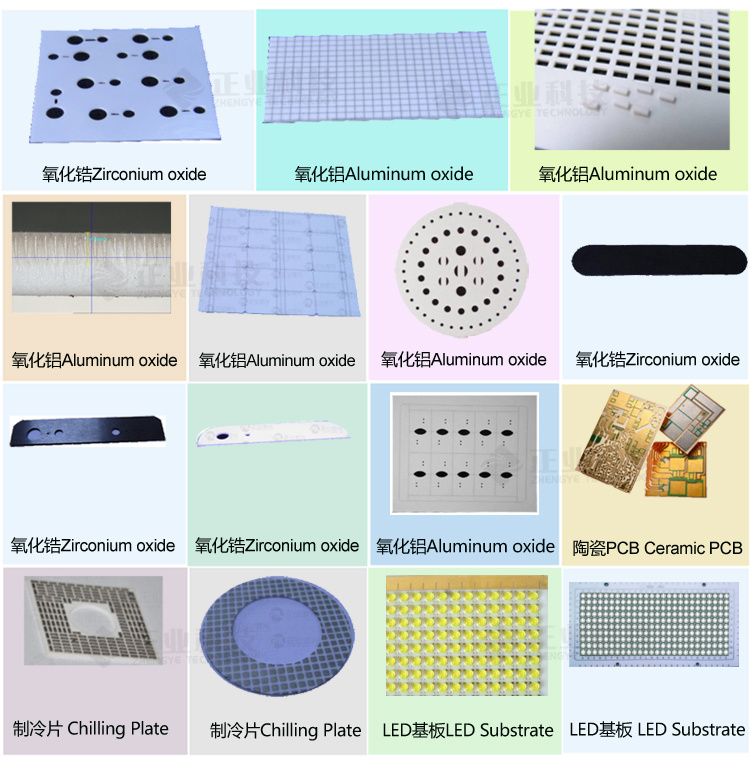

Applied to high precision laser cutting of metals, sapphire, ceramic and other sheet metal materials. It is widely used for IT, automobile, LED, jewelry, precision machinery industry, etc.


Ceramic cutting mchine,adopts CO2 laser,30W,60W,100W,different options.
Working table size :800*600mm,





TECHNICAL PARAMETER
Specifications of Double Stations of Fiber Laser Cutting Machine
ModelPIL02DL-150FPIL02DL-500F
LaserImported Fiber Laser
Laser power 150W500W
Maximum Processing Size250mm×250mm
Speed≤800mm/s
accelerated speed≤10000 mm/s2
positioning accuracy±0.003mm
repetitive positioning accuracy±0.001mm
Comprehensive processing precision±0.03mm
Smallest linewidth0.06mm0.08mm
Portable Document Formatdxf,pltdxf,plt
Electric Power SupplyThree-phase Five-wire System,AC380V50Hz/4.5kWThree-phase Five-wire SystemAC380V50Hz/6.5kW
Dimensions(L x W x H)1680mm×1300mm×1500mm
Weight1400kg
Environmental Temperature10ºC-35ºC
Environmental Humidity10%-85%RH, non-condensing
Ground Amplitude<5μm
Ground Pressure60×103kgf/m2
Control SystemImported NC System
Optional FunctionCCD automatic positioning
