| Prod Model: |
FY018C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item No.: |
Fy018c |
| Voltage: |
12VDC or 24VDC |
| Load Capacity: |
6000n |
| Speed: |
4-30mm/S |
| Stroke: |
Option |
| Type Of Duty: |
S2-10min |
| Limit Switches: |
Inner |
| Operation Temperature: |
-26-65degree |
| Protection Class: |
IP20 |
| Application: |
Table or Desk |
| Usage: |
Desk |
Product Description

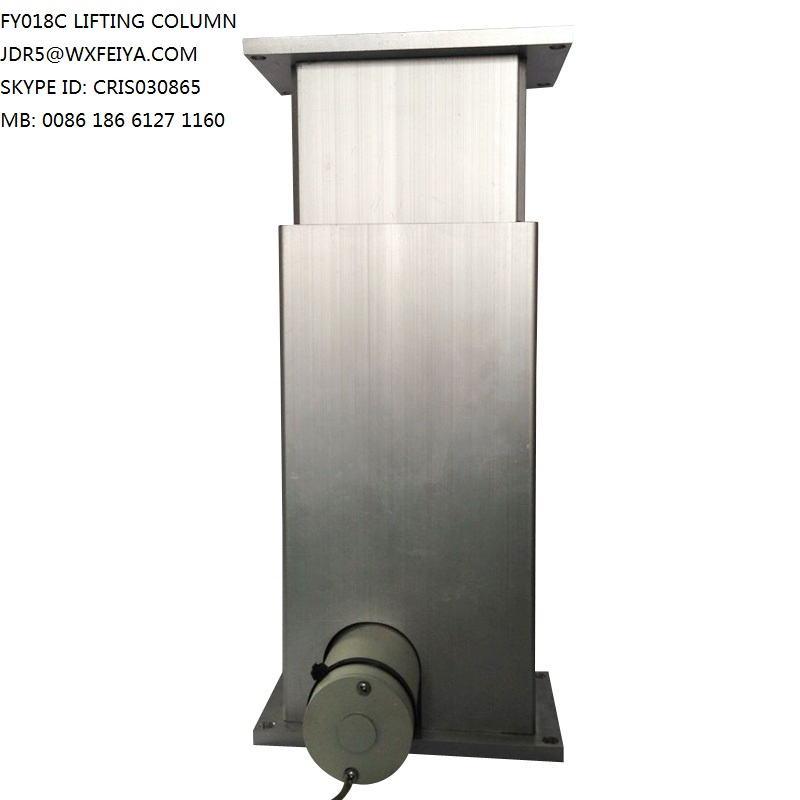

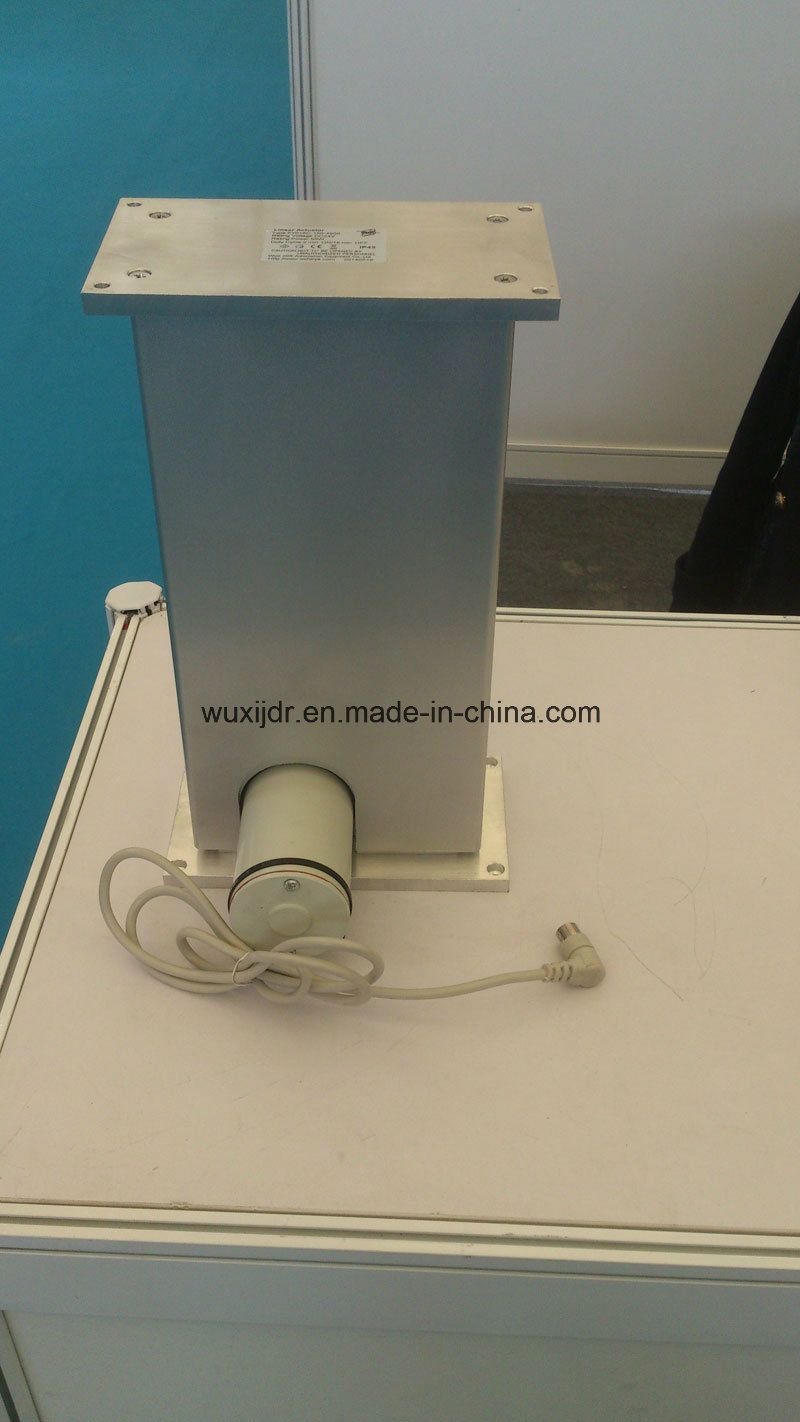

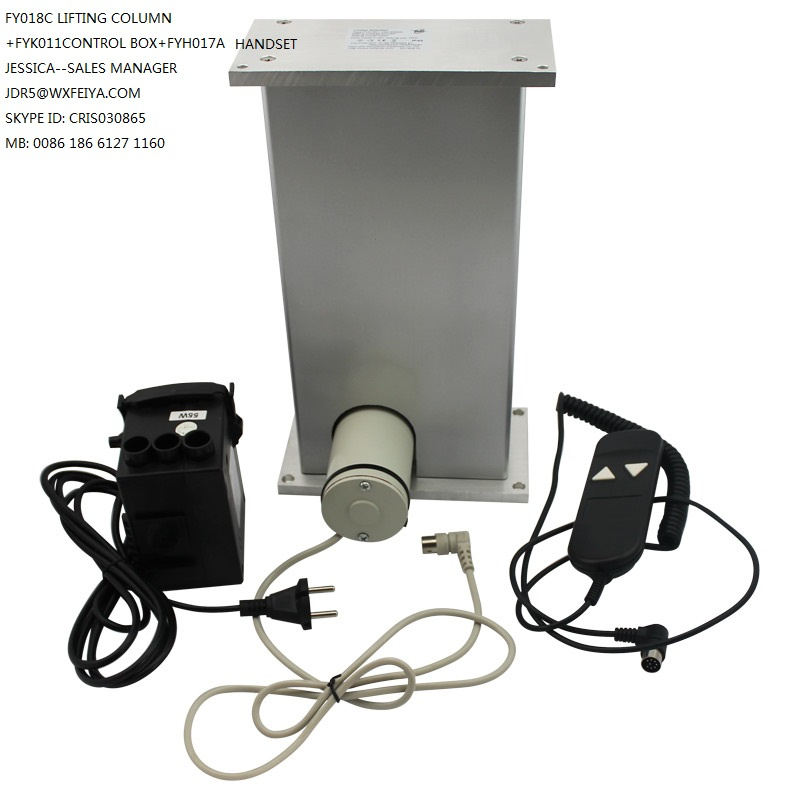

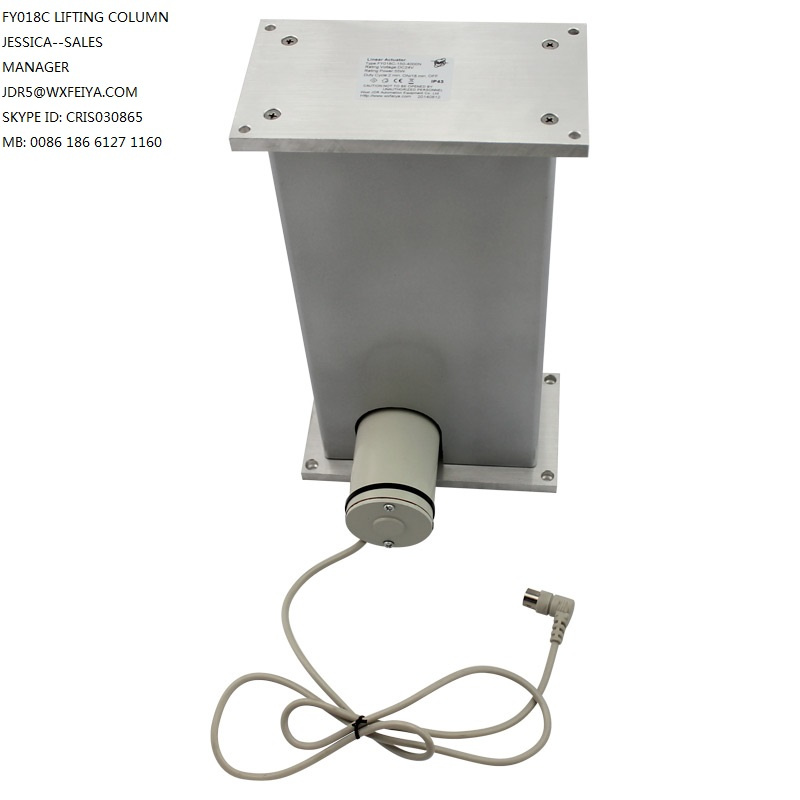

FY018-C Lifting Column for Desk, Table
Features:
1) Offers a wide range of lifting and lower workbench, office, furniture, with big stroke, small retracted length, move steady
2) Can realize synchronized movement with control bx
3) Input Voltage: DC24V
4) Load capacity: Up to 6000N
5) Speed: 4-30mm/s
6) Standard stroke: 100-400mm (option)
7) Min. Install dimensions: Stroke /(n-1)+200n mm ( option )
8) Limit switches: Built-in
9) Type of duty: 10%, 2 minuts-on, 18 minutes-off
10) Operation temperature: -26 - 65° C
11) IP degree: IP20
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
| Voltage | Load capacity | Speed | Stroke | Type of duty | Limit switches | Operation Temperature | Protection Class |
| 12VDC/24VDC | 6000N | 4-30mm/s | Option | S2-10min | Inner | -26-65degree | IP20 |
Wuxi JDR Automation Equipment Co., Ltd, established in 2008, . Is a professional manufacturer and trading unit integrating the research, production and marketing of DC linear actuator. JDR's predecessor is Wuxi Feiya Electronical Equipment Co., Ltd, which was established in 2004.
Our company owns several automatic production lines and enough experience in the production and research of linear actuators and controllers. Our products are popularized in many occasions when need to be implemented with rectilinear motion such as electrical nursing beds, operational beds, traction beds, massage chairs, dental chairs, electrical sofas and show-cases. These products can adjust heights, move between front and behind, as well as angle change, which take the place of gas springs as well as AC decelerators.
Dreams drive science, technology creates life. Based on domestic market and aiming at overseas market, JDR has gradually started to establish perfect marketing net both at home and abroad.
"Quality First, Customer Paramount" is our established guidelines. "Based on honesty, providing high quality products and innovative service, striving after perfection" is our management concept.
With over 80 people's efforts, JDR is becoming better and better. We have sound management system and very low stuff turnover, and every department cooperate greatly.
Now, we have successful foreign trading experience in South Europe, West Europe, North Europe, North America, South America, Middle East and Southeast Asia.
We, Wuxi JDR, sincerely welcome your advices, suggestions and inquiries.
