Product Description

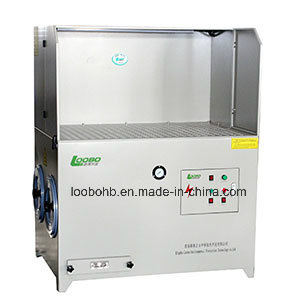

Factory direct sale downdraft table for grinding dust collection/wood dust extraction downdraft table
Variety of welding, polishing, deburring, polishing and plasma cutting, and etc.
We can provide a variety of models according to different working conditions and dust controlling.
**Products Advantage:
1)Unique desktop design is very perfect, baffles are removable, built-in dust removal system, no need pipe connection, reduced energy costs
2) Compact structure, it occupies a limited area.
3) The exhaust inlets set the guide plate, to prevent the dust hit the filter directly, so as to prolong the service life of filter core.
4)adopts high efficient centrifugal fan, with high efficiency, stable operation function. At the same time, use the noise reduction processing for the fun to reduce noise.
5)workbench and dust removal function integration design, directly to remove the dust from the source
6) Pulsing back-flushing automatic dust-removal system, can guarantee the equipment in good working condition.
7) Draw-out type dust box, convenient cleaning
Operating Principle:
Under the device's high negative pressure, the fume and dust through suction pipe into the purifier, with the Martian dust before enter the purifying cavity were blocked and separated by fire sand . the remaining dust flow is blocked and uniform distribution by flow plate inside the purifying cavity, in order to better purified by cartridge filter.
Larger particles of dust under the action of gravity sinking into the collection of ash hopper, while small particles of dust under the action of suction generated by the eddy current is suspended in internal to purify by cartridge filter.
Small particles of dust on the surface of the filter cartridge, after the effect of gathered adsorption and combined, sinking into the ash hopper. After purification, the air flow out, offer a healthy working environment for workers.
Products Advantage:
1) The exhaust inlets set the guide plate, to prevent the dust hit the filter directly, so as to prolong the service life of filter core.
2) There are exhaust inset around the worktable, can effectively control the dust flying.
3)adopts high efficient centrifugal fan, with high efficiency, stable operation function. At the same time, use the noise reduction processing for the fun to reduce noise.
4)workbench and dust removal function integration design, directly to remove the dust from the source
5) Compact structure, it occupies a limited area.
6) Pulsing back-flushing automatic dust-removal system, can guarantee the equipment in good working
LB-DJ Grinding Dust Removal Worktable
**Technical Parameter:
| Number | 1 | 2 |
| Model | LB-DJ3000 | LB-DJ3600 |
| Airflow(m³/h) | 2400 | 3600 |
| Power(KW) | 2.2 | 3.0 |
| Specification of filter cartridge(mm) | Ø325*500 | Ø325*380 |
| Q'ty of filter cartridge(pcs) | 2 | 2 |
| Dimension(mm) | 1000*1200*1600 | 1000*1200*1600
|
LB-DC Grinding Dust Removal Worktable
*Application Place:
Variety of welding, polishing, deburring, polishing and plasma cutting, etc. and etc.
**Technical Parameter:
| Number | Model | Airflow(m3/h) | Power (kw) | Filter Cartridge(mm) | Q'ty of Filter cartridge(pcs) | Dimension(mm) |
| 1 | LB-DC2400 | 2400 | 2.2 | Φ325*1023 | 2 | 2000*900*1200 |
| 2 | 2400 | 2.2 | Φ325*1223 | 2 | 2200*1100*1200 |
| 3 | LB-DC3000 | 3000 | 3.0 | Φ325*1023 | 2 | 2000*900*1200 |
| 4 | 3000 | 3.0 | Φ325*1223 | 2 | 2200*1100*1200 |
LB-DM Grinding Dust Removal Worktable
*Application Place:
Variety of welding, polishing, deburring, polishing and plasma cutting, etc. and etc.
**Technical Parameter:
| Number | Model | Airflow(m3/h) | Power (kw) | Filter Cartridge(mm) | Q'ty of Filter cartridge(pcs) | Dimension(mm) |
| 1 | LB-DM2400 | 2400 | 2.2 | Φ325*1023 | 2 | 2000*1000*800 |
| 2 | 2400 | 2.2 | Φ325*1223 | 2 | 2200*1200*800 |
| 3 | LB-DM3000 | 3000 | 3.0 | Φ325*1023 | 2 | 2000*1000*800 |
| 4 | 3000 | 3.0 | Φ325*1223 | 2 | 2200*1200*800 |
LB-DMS Grinding Dust Removal Worktable
*Application Place:
Variety of welding, polishing, debarring, polishing and plasma cutting and etc.
**Technical Parameter:
| Number | Model | Airflow(m3/h) | Power (kw) | Filter Cartridge(mm) | Q'ty of Filter cartridge(pcs) | Dimension(mm) |
| 1 | LB-DMS1500 | 1500 | 0.75 | Φ325*1023 | 1 | 800*550*1000 |
LB-DG Grinding Dust Removal Worktable
*Application Place:
Variety of welding, polishing, debarring, polishing and plasma cutting and etc.
**Technical Parameter:
| Number | Model | Airflow(m3/h) | Power (kw) | Filter Cartridge(mm) | Q'ty of Filter cartridge(pcs) | Dimension(mm) |
| 1 | LB-DG3000 | 3000 | 3.0 | Φ325*465 | 2 | 1200*800*1470 |
LB-DH Grinding Dust Removal Worktable
*Application Place:
Variety of welding, polishing, debarring, polishing and plasma cutting and etc.
**Technical Parameter:
| Number | Model | Airflow(m3/h) | Power (kw) | Filter Cartridge(mm) | Q'ty of Filter cartridge(pcs) | Dimension(mm) |
| 1 | LB-DH3000 | 5000 | 5.5 | Φ325*1263 | 2 | 2200*900*1550 |
LB-DF Grinding Dust Removal Worktable
*Application Place:
Variety of welding, polishing, debarring, polishing and plasma cutting and etc.
**Technical Parameter:
| Number | Model | Airflow(m3/h) | Power (kw) | Filter Cartridge(mm) | Q'ty of Filter cartridge(pcs) | Dimension(mm) |
| 1 | LB-DF2400 | 2400 | 2.2 | Φ325*651 | 2 | 1000*1050*1600 |
Company information:
Qingdao Loobo Environmental Protection Technology Co.,Ltd is one of the biggest enviromental protection products manufacturer, located in Qingdao city of china,specialized in alll kinds of portable fume extractor, downdraft benches(grinding dust removal worktable), central fume purification system, flexible suction arm,etc.
We have more than ten years export experience ,all of our products with the ISO9001 and CE certification, the quality can be guaranteed.
We have our own R&D department , have a variety of style range to meet any of your requirments and had established the economies of scale, so can dilivery fast and provide can beat your competitor's price.
