| Prod Model: |
YPA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ironing Scope: |
1.5m to 3.3m |
| Heat: |
Steam, Electric |
| Pressure: |
0.4-0.6MPa |
| Used For: |
Sheets Ironing |
| Cylinder: |
Stainless Steel |
| Roller: |
One, Two, Three, Four, Five |
| Installation: |
Free-Standing |
| Operation: |
Easy |
| Warranty: |
12 Months |
| Name: |
Bed Sheet Folding Machine |
| Type: |
Bedsheet, Tableclothes |
Product Description

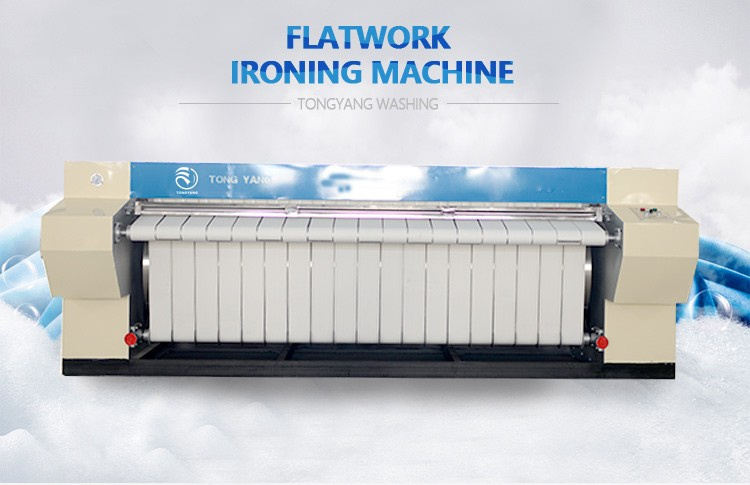

1. Automatic ironing machine, horizontal structure, easy to operate and high-quality ironing effect.
2. Steam or electrical heating.
3. Ironing for various of bed sheets, towel, tablecloth, curtain or liens which are usually used in hotel, restaurant, school, hospital, counterpane factory and laundry house, etc.
4. According to the fabric width, the roller length of industrial ironing machine can be 1800mm, 2500mm, 2800mm and 3000mm, also we can make the length less than 1800mm as per your requirements. And the roller can be single, double and three. Surely, the ironing speed of double rollers and three rollers ironing machine is quicker than that of single roller ironing machine
5. The precise structure of double chests, springs and heating proof felt ensure the rollers to keep enough electricity and spring cushion, which creates the surface well-touched. Unique lever balance pressure device and the cylinder pressure adjust system on both sides. Unique whirl steam flow heating system for the connecting plate improves the ironing result.
6. Reliable and safe operation system
With a finger guard, once operator touches the plate the machine will stop immediately.
Anti-curliness device can prevent the fabrics curling in the chests.
With steam and compressed air control system, once the pressure is too low the system will alarm.
Many emergency stop button fixed on the ironer. Any buttoned pressed, the ironer will stop to run.
The pneumatic system can raise and lock up the rollers to prevent the fabrics and the proof felt damaged when the machine stops running in case of no power.
A big touch screen controller with interactive interface on the machine is easy for operator to program according to different requirements.
7. High efficiency and Low energy consumption
The chests have a large angle heating surface, which can improve the heating efficiency.
The ironer adopts a single drive motor which can save energy. The frequency converter system can adjust the ironing speed from 8~40 m/min with the change of temperature, type of fabrics, moisture, etc.
The chests adopt a unique heating chamber recycle system with many strips on double sides. Steam can flow in the chamber with high efficiency. In addition, the chests are covered by thermal insulators to reduce heat losses.
8. With CE and ISO9001 certificates.
| model | ironing speed | steam pressure | power | Electrical heating power (kw) | Roller | overall dimensions | weight |
| (m/min) | (Map) | (kw) | Dimension(mm) | (mm) | (kg) |
|
|
| YPAI-1800 | 0-7 | 0.4-0.6 | 0.75 | 18 | φ 800× 1800 | 2800*1550*1500 | 1000 |
| YPAI-2500 | 0-7 | 0.4-0.6 | 0.75 | 24 | φ 800× 2500 | 3500*1550*1500 | 1200 |
| YPAI-2800 | 0-7 | 0.4-0.6 | 0.75 | 30 | φ 800× 2800 | 3850*1550*1500 | 1500 |
| YPA II-2800 | 0-15 | 0.4-0.6 | 1.5 | | φ 800× 2800 | 3850*2500*1500 | 2300 |
| YPA II-3000 | 0-15 | 0.4-0.6 | 1.5 | | φ 800× 3000 | 4050*2500*1500 | 2460 |
| YPA III-3000 | 0-30 | 0.4-0.6 | 2.2 | | φ 800× 3000 | 4050*3430*1500 | 3460 |

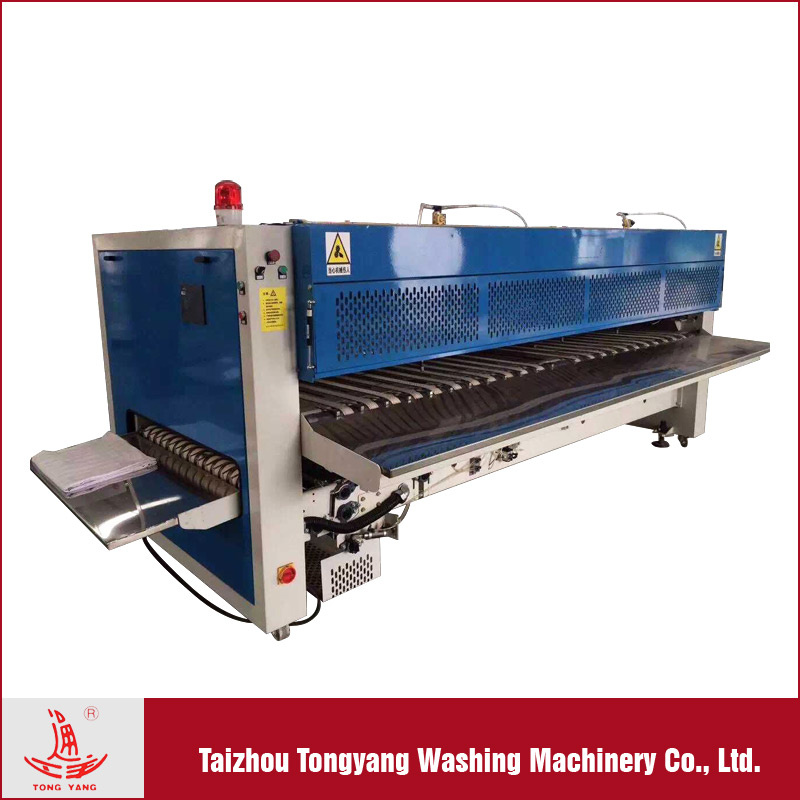

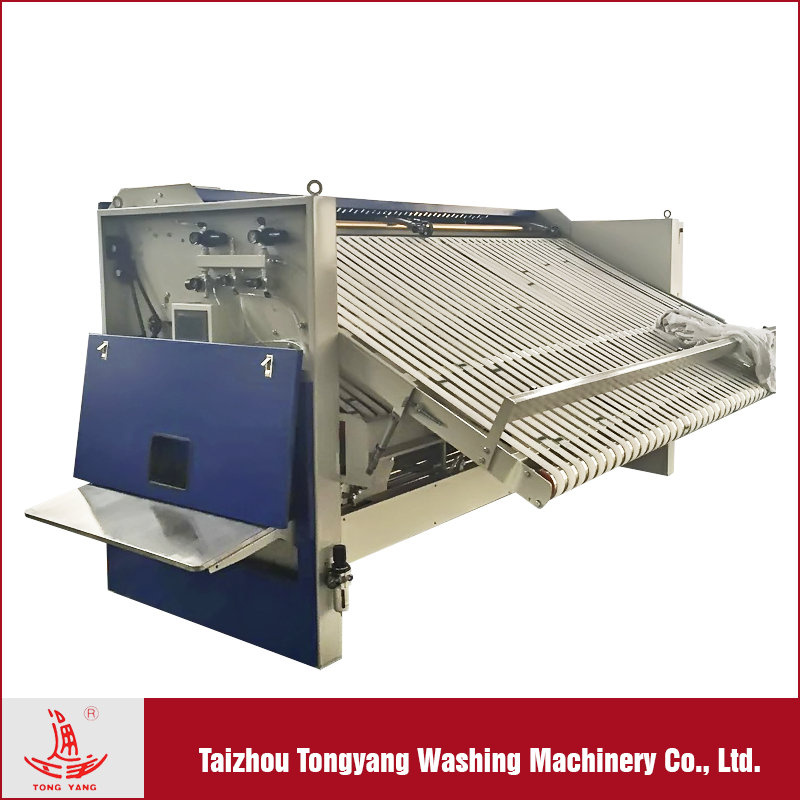

1,The sheet folding machine has following two horizontal three longitudinal five percent, the biggest fold function scope 3300mm.
2,Fold 3000 x Two sets of independent motor inverter control with folding of 50m/min speed in adjustable steplessly within the function, and various types of screed machine matching.
3,Adopting PLC programmable controller, strong anti-jamming. Highly intelligent LCD screen operation system, has the good human-machine interface.
4, Perfect the diagnosis function and safety protection system for daily use, and maintenance of machine of domestic initiative, anti-static function more increased machine working reliability and stability.
All information is subject to change without notice.
| Model | ZD3000-V | ZD3300-V |
| Max Folding LxW(mm) | 3000x3000 | 3300x3000 |
| Max Speed(m/min) | 50 | 50 |
| Layers(layer) | 5 | 5 |
| Air Pressure(Mpa) | 0.7 | 0.7 |
| Rated Input Power(kw) | 1.87 | 1.87 |
| Dimension(mm) | 3650x1600x1750 | 4000x2300x2000 |
| Total Weight(kg) | 1430 | 2200 |
Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
We can provide the professional proposal for you according to your situation.
Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
Company information:
1. Guangzhou Jinzhilai Washing Equipment Co.,Ltd was set up in 2006,we are a leading and professional laundry equipment manufacturer in China.
2. Our main products: Industrial washing machine, tumble dryer, ironing machine, folding machine,dry cleaning machine, etc.
3. Our products are popularly used in hotels,hospitals,restaurants,schools,laundries, etc.
FAQ
Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.
Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can prove that.
Q3. Our power supply is 415v, 3phase, 50hz, can you provide it?
A: Yes,We can customize the power supply for you.
Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.
Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
Taizhou Tongjiang Washing Machinery Factory, founded in 1996, is located in Taizhou Senbei Industrial Park. After twenty years of development, it has become the leading manufacturer in apparel industry of washing equipment in domestic. We have attained strict CE and ISO9001 Quality Management System Certification and own import and export license.
We have total factory space of approximately 26, 666 square meters with over 120 workers. We have complete processing devices including milling, shaping, boring, slotting, drilling, reaming and polishing, also possessing manufacturing procedures of flame cutting, hole piercing, cutting, pressing, bending and molding and large-scale spray painting equipment. All of these make Tongyang products rank the first class in regard of overall technology and manufacturing equipment.
In order to meet the needs of market expansion, we have focused on importance in technological innovation, upgrading and absorbing high quality experts with full efforts, so as to increasing R&D, and introduce new products which fill up domestic margin instead of importing.
Tongjiang Washing Machinery Factory mainly produces entire suspension type washing machine, industrial washer, hydro extractor, tumble dryer, flatwork ironer, washer extractor, folding machine, transport type carpet cleaning machine and finishing equipment and so on. The products are not only popular in hotels and restaurants, but also in hospitals, railways, troops, universities and colleges and some washing & dyeing industrials as well as in more than 30 countries in Southeast Asia, Americas, Europeans and South Africa. With beautiful features, durable performance and diverse varieties, our products has wined a leading status in the industry and received good reputation from oversea market,
Our factory has recently researched chlorine washing machine and foam washing machine, which filled up domestic spacing, instead of importing from America and Japanese. This settles the problems of importing in higher price and difficulty in finding spare parts for domestic latex products manufactures and printing factories.
"Technology innovation, works with realistic" is our manifesto, "Customer first and pursuing the best quality" is our pursuit. Tongjiang people are expecting all friends come and visit our factory.
Taizhou Tongyang Washing Machinery Co., Ltd. is specializing in producing industrial and commercial washing machines with various specifications available.
Our main products include fully-automatic washers and extractors, carpet washing machines, extracting machines, drying machines and ironing machines. These products are new in type and low in power consumption. They are widely used in various trades, such as textile, printing, dyeing, silk, garments and chemical industries, hotels, restaurants and hospitals.
Recently, our factory successfully developed a chlorine washing machine and a foam washing machine which filled up domestic blank. They can replace the ones we had always imported from the USA.
Our products have a ready market not only in China but also in Southeast Asia. We ensure superb quality and reasonable price. We take full responsibility of repair, replacement or refund if serious quality problems happen. All our products enjoy life-long service and all the spare parts for them are available.
You are welcome to visit our factory and order our products.
