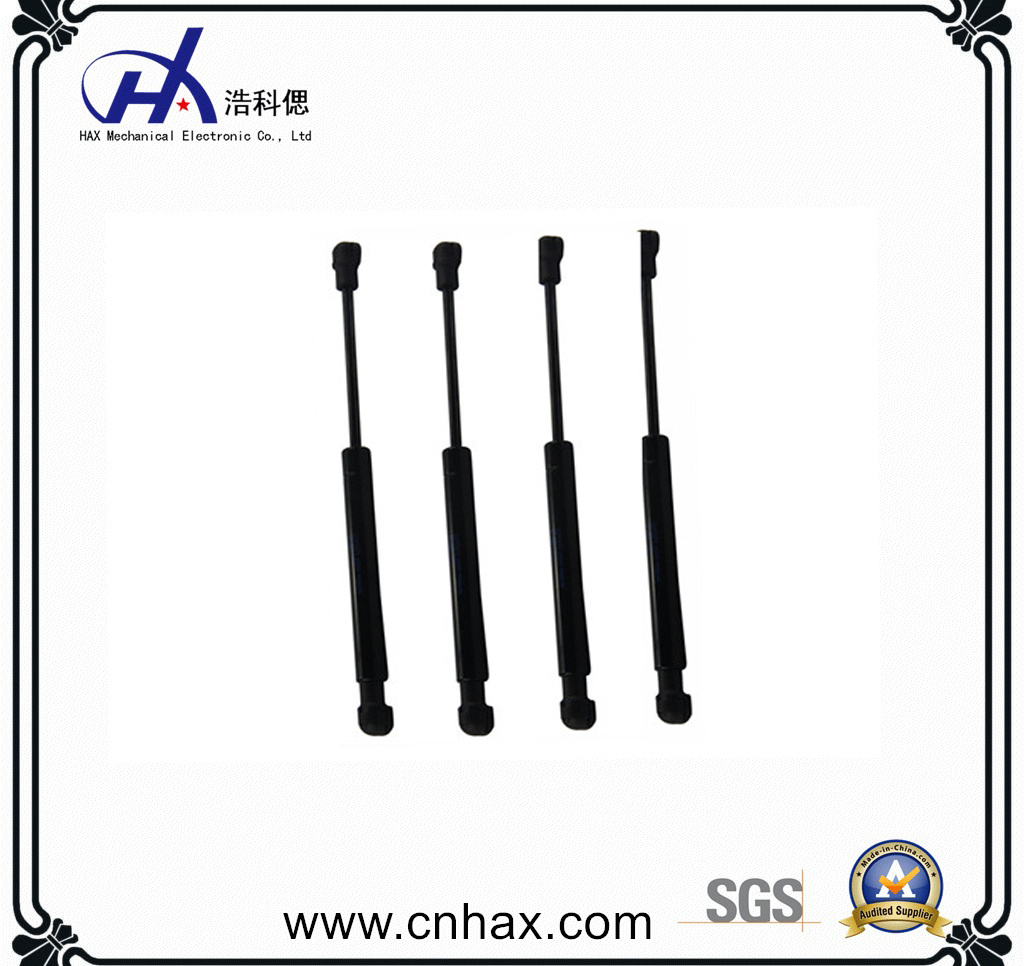

F350n Lift Gas Spring with Plastic Material for Toolbox

Prod Model:	YQL
Delivery Time:	3-5 Working Days After We Received The Payment
Samples:	Free Sample
Size:	Can Be Customized
Characteristic1:	Very Good Quality
Material:	Steel
Usage:	Boat
Load Type:	Compression
Shape:	Cylinder
Extension Spring Classification:	Lift Gas Spring
Compression Spring Shape:	Long
Diameter Coil Spring:	Can Customized According to The Customers Require
Production Process:	Produce

Product Description

Why choose us?
" QUALITY IS OUR CULTURE "
"WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE"
1.Competitive Advantage Products
2.Full REFUND in case of Bad quality OR Late Delivery
3.Payment By Paypal, Western Union, TT etc we all can accept.
4.Confidentiality Agreement " Business Secret CONTRACT "
5.Quality Assurance CONTRACT
6.Free Sample Offer & Small Order Welcomed




Name	Mini Lift gas spring for machine
Quality	1.80,000 times -passed SGS fatigue test
	2.ROHS certificated by SGS
	3.Passed ISO9001 and ISO/TS 16949 International Quality System Certification
Use	Automobile;Auto,car;Furniture;Machines,mechanical equipment; Boat,container,etc.
Material	steel/ss304/ss316
Color	silver/black/others
Connector	ball connector/metal eye/clevis and so on
Advantage	1.pass 80,000 times fatigue times
	2.we can supply samples for free
	3.Competivite price
	4.Fast delivery time:1000 pcs 3 days
The size could be made according the customer requirment.

Features
1. Gas: Nitrogen(99.999%).
2. Material: finishing rolling seamless steel tube for cylinder, steel for piston rod.
3. Surface: spray painting for cylinder, chrome plating for piston rod.
4. Color : black,or as your requirement.
5. Quality: 100,000 cycles; ISO/TS16949; ISO9001:2008.
6. Operating Temperature Range: -15~+80ºC(5~176ºF)as standard; -50~+80ºC(-58~+176ºF) or -15~200ºC(5~392ºF) available.

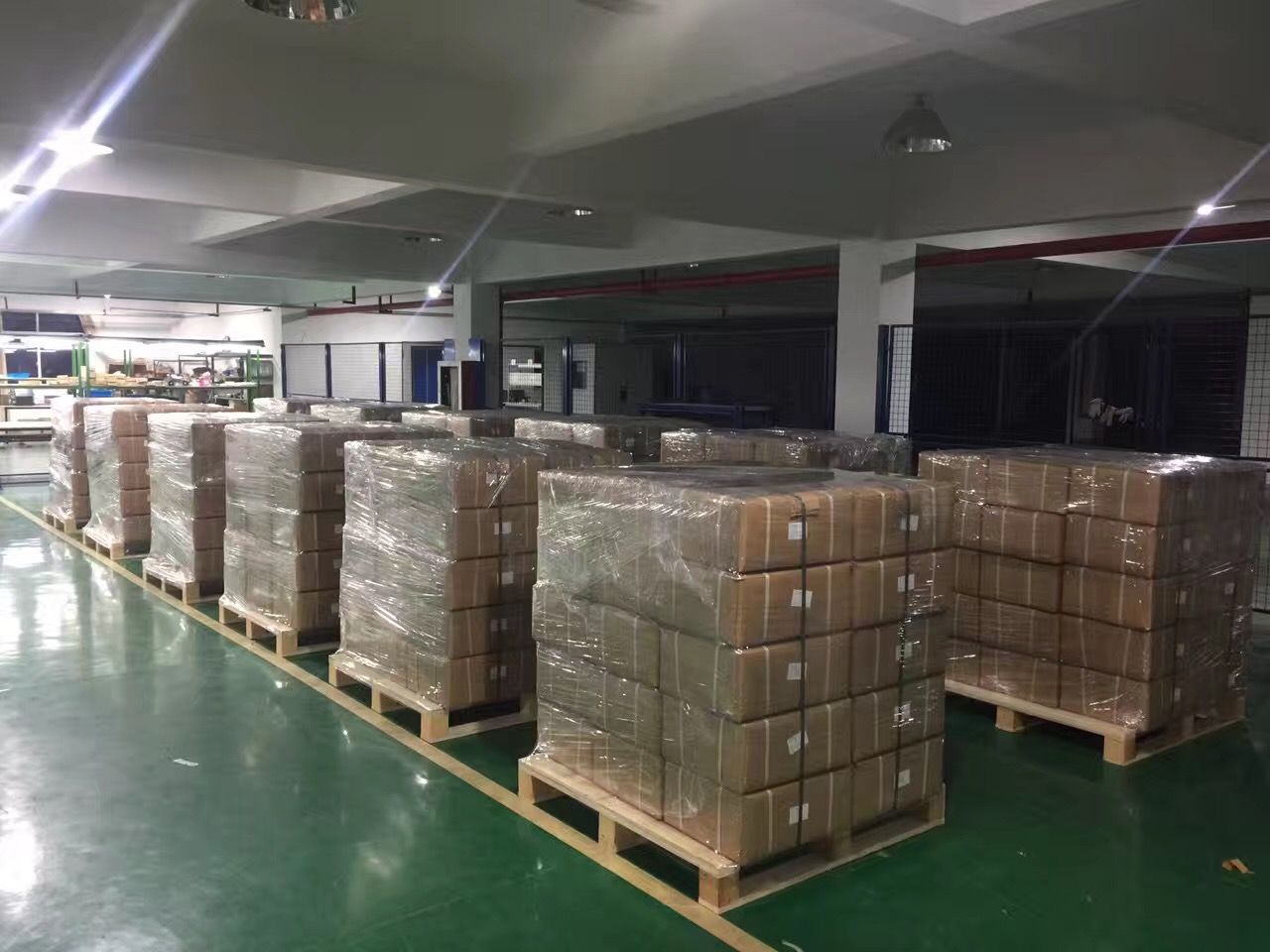

Packaging & Shipping
1. 1 piece in bubble pack or poly bag, 20pcs/carton or as your requirement.
2. Delivery time:3-5 working days after we received the deposit.
3. Delivery term: FOB & CIF & CFR & Exw.
4. Shipment: your appointed forwarder is acceptable or we send to your Chinese agent




Our Services
1. Customization and OEM are welcome.
2. Free samples are available.
3. Trade assurance orders are favored.
4. Other service which you need.

About Us:

Changzhou HAX Mechanical Electronic Co.,Ltd, establish in 2011, located in  Yangtze River Delta economic
zone, Changzhou City.
We are the factory which gathers production and sales of all kind gas springs and liner actuators. Our mainly
products are: lift gas springs, lockable gas springs, tension springs, dampers and all kinds of linear actuators.
 Our gas springs and liner actuators are mainly used for all kinds of cars, buses, furnitures, boats , medical equipment,
beauty chairs, aviation, many machines , agriculture machine equipment and so on.
HAX has strict quality control system, and full sets of advanced equipment. We have flexible mode of operation,
stable quality, complete catalog, excellent quality. HAX enjoys a good reputation in domestic and foreign market.
Our product exports to Europe, America, Southeast Asia, the Middle East, Russia, Africa and other countries.
HAX now is growing and expanding, we have customers throughout the world.
  We sincerely hope: Hand in hand, we together create a better future!



YQL Lift Gas Spring Catalogue

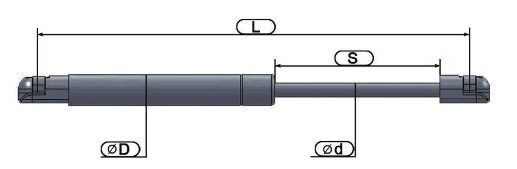

MODE	EXTENDED LENGTH /MM	STROKE /MM	CYLINDER DIA/MM	PISTON ROD DIA /MM	MIN FORCE/N
YQL001	113	30	12	4	35
YQL002	160	50	12	4	50
YQL003	219	80	12	6	40
YQL004	160	40	15	6	50
YQL004-1	195	65	15	6	100
YQL005	200	60	15	6	60
YQL006	220	65	15	6	75
YQL007	245	70	15	6	190
YQL008	250	90	15	6	50
YQL009	250	90	15	6	70
YQL010	250	90	15	6	80
YQL011	250	85	15	6	100
YQL012	280	100	15	6	90
YQL013	330	120	15	6	40
YQL014	380	140	15	6	100
YQL015	247	80	18	8	250
YQL016	280	100	18	8	150/250
YQL017	300	100	18	8	200
YQL017-1	315	115	18	8	150
YQL017-2	320	115	18	8	150
YQL018	350	130	18	8	150
YQL019	380	140	18	8	70
YQL020	400	150	18	8	150
YQL021	435	170	18	8	130
YQL022	450	180	18	8	340
YQL023	510	210	18	8	130/200
YQL024	550	220	18	8	300
YQL025	700	290	18	8	150/350
YQL026	200	40	22	10	500
YQL027	310	110	22	10	400
YQL028	350	130	22	10	200
YQL029	380	140	22	10	180
YQL030	450	170	22	10	700
YQL031	500	200	22	10	300
YQL032	600	240	22	10	400
YQL033	730	300	22	10	430
YQL034	280	100	25	12	900
YQL035	280	100	25	12	1350
YQL036	820	260	25	12	850
YQL037	640	260	28	14	1100
YQL038	1000	305	28	14	1500
YQL039	1500	600	28	14	1000
YQL040	2000	900	28	16	1600
YQL041	1200	500	40	20	4000
Please referance the lift gas spring parameters range
DIA			FORCE RANGE
12*4			10N-100N
15*6			10N-300N
18*8			50N-700N
22*10			100N-1500N
25*12			100N-1400N
28*14			100N-3000N
28*16			100N-3000N
40*20			300N-4000N
Note:the size and force  we can produce according to the customer's requirements.

The parameters we can customized for you only if you can provide the detail info to us.
If you are interested and want to get more info, please contact us freely.
