| Prod Model: |
IFC Indoor cabinet |
| Input Vol Range: |
85-300 VAC |
| Power (Maximum): |
2kw-21.4kw |
| Current (Maximum): |
37A-400A |
| Voltage (Default): |
48VDC |
| Voltage Sense, System Voltage Support: |
48-57.6VDC |
| Dimensions: |
2000 X 600 X 600mm |
| Weight: |
<50 Kg Excluding Rectifier |
| Task: |
Adjust |
| Structure: |
Combination |
| Mathematical Model: |
Non-Linear |
| Signal: |
Continuous |
| Condition: |
New |
| Customized: |
Non-Customized |
| Function: |
Provide 48VDC Output |
| Certification: |
UL, CSA, IEC60950-1 |
| Material: |
Metal, Electronic Components |
Product Description

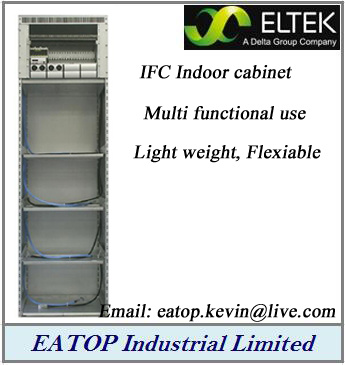

Eltek IFC Indoor cabinet 900241 power system
Eltek Valere Eltek Valere
IFC Indoor cabinet
Part No. : 900241ELTEK 900241 Indoor power system Brief:

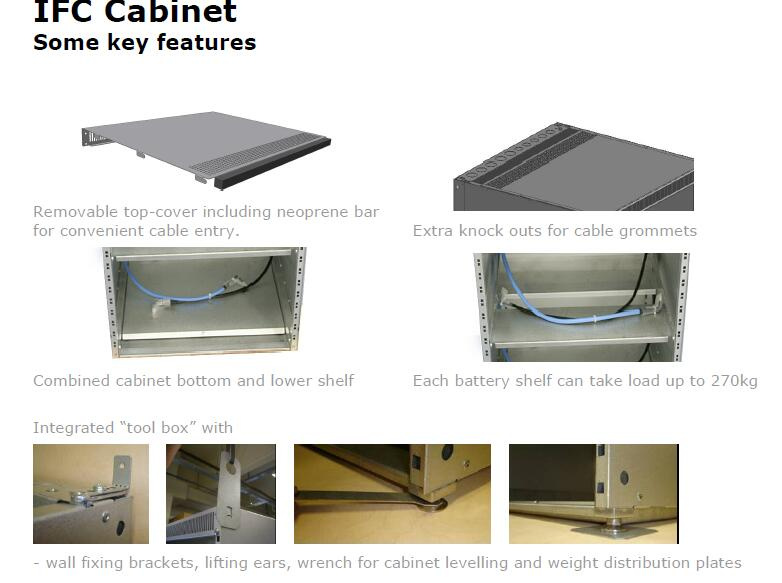

ELTEK IFC Indoor power system cabinet Features:1) Light weight (<50 kg)
2) Very flexible
3) Some few basic elements:
- side wall (identical left and right)
- top cover
- rear wall,
- bottom(including "toolbox")
- battery shelves
- adjustable legs
4) Steel finish
5) Shipment bulk parts to system assembly or Optionally flatpacked
shipment to site with assembly time of less than 20 minutes
Specifications: IFC Indoor cabinet power system
900241

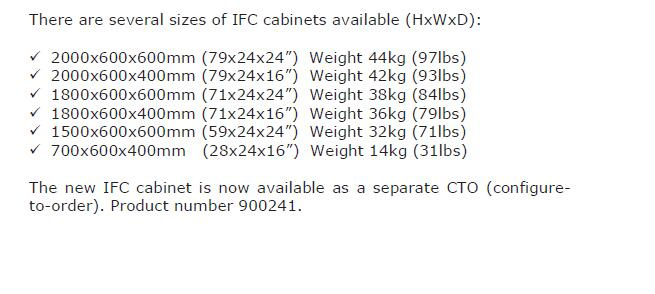

Dimensions: 2000x600x600mm (79x24x24")
Weight: 44kg (97lbs)
Part No.IFC Indoor cabinet 900241Eltek IFC Indoor cabinet 900241 power system

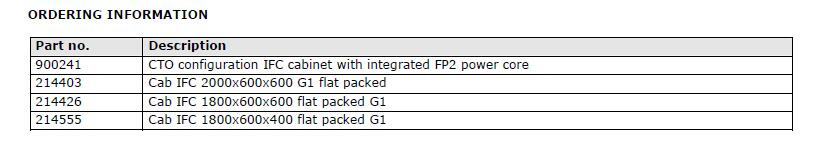

Part No. Description:
900241 CTO configuration IFC cabinet with integrated FP2 power core
214403 Cab IFC 2000x600x600 G1 flat packed
214426 Cab IFC 1800x600x600 flat packed G1
214555 Cab IFC 1800x600x400 flat packed G1
