Electrical Vertical Laboratory Vacuum Dryer Cabinet
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
DZF-LC |
| Control: |
Microprocessor Pid Control |
| Door: |
Double Glass Door |
| Vacuum Degree: |
Automatically Controlled |
| Apprication: |
Dry and Heat Samples |
Product Description

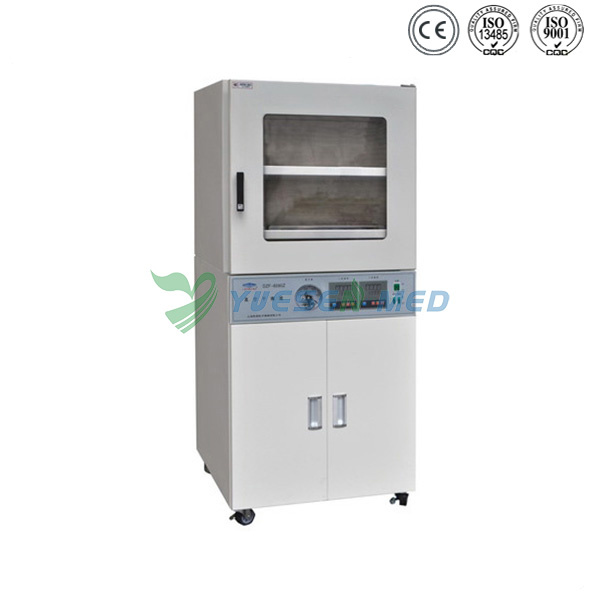

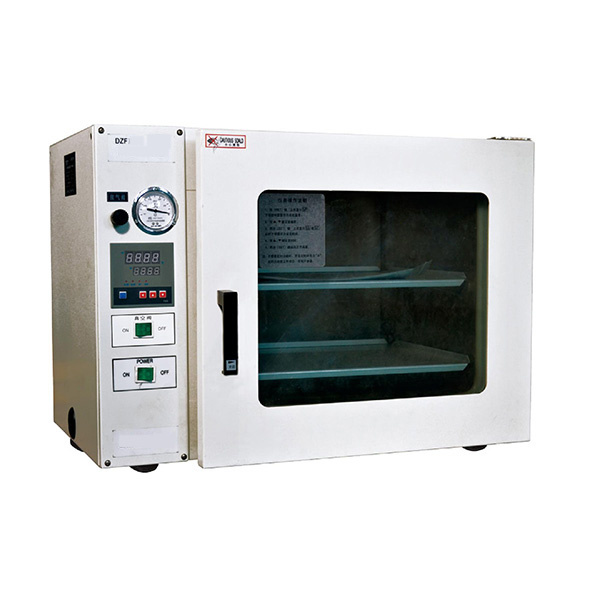

Electrical Vertical Laboratory Vacuum Dryer Cabinet
Vacuum drying oven is applied to dry and heat samples in the vacuum condition in the industrial and mining enterprises, medical institutions and research institutes.
Microprocessor PID control, accurate and stable.
Cuboid workroom for maximum volume. (DZF-0B, DZF-1B)
Vacuum degree is automatically controlled. (DZF-6090Z, DZF-6210Z)
The tightness of the door closing is adjustable and the door sealing is monolithic silicon ring which ensure the vacuum in the chamber.
Tempered double glass door make it easy to observe the samples.
| Model | DZF-0B | DZF-1B | DZF-6090Z | DZF-6210Z |
| Work room dimension(cm) | 30×30×28 | 42×35×37 | 45×45×45 | 56×60×64 |
| Outline dimension(cm) | 58×57×45 | 71×59×53 | 66×61×140 | 76×72×167 |
| Package dimension(cm) | 70×64×60 | 82×70×69 | 79×75×157 | 90×85×193 |
| Temperature range (°C) | 50~200 | 50~250 | 50~200 | 50~200 |
| Temperature fluctuation (°C) | ±1°C |
| Vacuum degree | <133 Pa |
| Rated power (KW) | 0.5 | 1.4 | 1.6 | 2.2 |
| Shelves | 1 (Aluminum) | 2 (Aluminum) | 2 (Electrothermal) | 3 (Electrothermal) |
| Power supply | AC 220V 50Hz |
| N.W./G.W. | 35/50 | 75/106 | 105/155 | 145/195 |
laboratory infrared drying cabinet:
This equipment adopts high efficiency and low energy consumption infrared technology which is suitable for dying samples quickly. It's applied widely in the industry, agriculture, medical institutions and laboratories.
·Composed of chamber, far infrared heating radiator, temperature controller, circuit control part, etc.
·Infrared therapy heating with high efficiency.
·Microprocessor intelligent temperature controller.
·Heating switch for different room temperature and heating speed requirement.
·Material of work room: iron for YHG-S, and polished stainless steel chamber for YHG-BS and YHG-BS-II.
·High quality cold-rolled plate with powder coating.
·Double door design, YHG-BS-II series is with observation window.
·Over-temperature protection and sensor open circuit/short circuit protection.
| Model | Outline dimension
(cm) | Work room dimension
(cm) | Package
dimension
(cm) | Shelves | Rated
Power
(W) | N.W./G.W.
(Kg) | Temperature range | Power supply |
YHG-300-S
YHG-300-BS | 64×47×64 | 30×30×35 | 77×60×81 | 2 | 1000 | 36/56 | 50~300°C | AC 220V 50Hz |
YHG-400-S
YHG-400-BS | 73×58×76 | 40×40×45 | 86×71×94 | 2 | 1200 | 51/81 |
YHG-500-S
YHG-500-BS | 83×67×85 | 50×50×55 | 96×80×102 | 3 | 1600 | 76/111 |
YHG-600-S
YHG-600-BS | 93×78×106 | 60×60×75 | 106×91×123 | 3 | 1900 | 111/151 |
| YHG-400-BS-II | 73×56×70 | 40×40×45 | 86×70×87 | 2 | 1200 | 51/81 | 50~250°C |
| YHG-500-BS-II | 83×67×81 | 50×50×55 | 96×80×98 | 3 | 1600 | 76/111 |
| YHG-600-BS-II | 93×77×91 | 60×60×75 | 106×90×108 | 3 | 1900 | 111/151 |
