| Prod Model: |
FY011+FYK012+FYH016 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Metal |
| Type Of Hospital Bed: |
Nursing Bed |
| Type: |
Medical Bed |
| Folded: |
Unfolded |
| Certification: |
RoHS |
| Using Ambient: |
Hospital or Home |
Product Description
Detailed Product Description

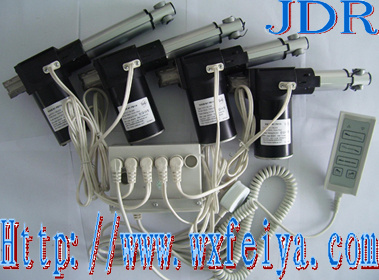

Beauty Bed use Linear Actuator 1) Used in electric Beauty Bed, hospital bed, etc. 2) 12V or 24V DC power 3) with CE, RoHS
Beauty Bed use Linear Actuator
Specifications of FY011 Linear Actuator for beauty bed use:
Name: Linear Actuator
Model: FY011
Input Voltage: 12V or 24V DC
Max Load Capacity: 6000N (600kgs)
Max Speed: 30mm/s
Standard Stroke: 0 - 1000mm
Limit Switches: Inner
Type of duty: S2-10min
Operation Temperature: -26 Centigrade ~ 65 Centigrade
Protection Class: IP43
Usage: Electric Beauty Bed, Electric sofa, leisure sofa, Massage chair, etc.
6000N Linear Track Actuator
12V or 24V Linear Actuator
The FY Seires linear actuators are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction bed, television movements counters, furniture and other movements.
Specifications of FY011 Linear Actuator:
Name: Linear Actuator
Model: FY011
Usage: Electric Bed, Electric Sofa, Massage Chair, Dental Chair, other Industrial use
Input Voltage: 12V or 24V DC
Load Capacity: 750N, 1500N, 4000N, 6000N
Free Load Speed: 30mm/s, 18mm/s, 8mm/s, 4mm/s
Standard Stroke: 50 mm --- 1000mm (Optional)
Installation Dimension: S + 175mm
Type of Duty: S2 -- 10 min (2 minutes work, 18 minutes rest)
Limit Switch: Builtin / Inner (can not be adjust after left factory)
Work Temp.: -26 to 65 centigrade
Protection Grade: IP43, IP54, IP65
Certificate: CE / EMC + LVD, RoHS
Control Box Used:
Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3
Control 4 Linear Actuators: FYK012-4, FYK016-4
Control 5 Linear Actuators: FYK012-5, FYK016-5
Control 6 Linear Actuators: FYK016-6
Handset Used: All FYH Series Handset, Pls contact us for detail pictures.
Wuxi JDR Automation Equipment Co., Ltd, established in 2008, . Is a professional manufacturer and trading unit integrating the research, production and marketing of DC linear actuator. JDR's predecessor is Wuxi Feiya Electronical Equipment Co., Ltd, which was established in 2004.
Our company owns several automatic production lines and enough experience in the production and research of linear actuators and controllers. Our products are popularized in many occasions when need to be implemented with rectilinear motion such as electrical nursing beds, operational beds, traction beds, massage chairs, dental chairs, electrical sofas and show-cases. These products can adjust heights, move between front and behind, as well as angle change, which take the place of gas springs as well as AC decelerators.
Dreams drive science, technology creates life. Based on domestic market and aiming at overseas market, JDR has gradually started to establish perfect marketing net both at home and abroad.
"Quality First, Customer Paramount" is our established guidelines. "Based on honesty, providing high quality products and innovative service, striving after perfection" is our management concept.
With over 80 people's efforts, JDR is becoming better and better. We have sound management system and very low stuff turnover, and every department cooperate greatly.
Now, we have successful foreign trading experience in South Europe, West Europe, North Europe, North America, South America, Middle East and Southeast Asia.
We, Wuxi JDR, sincerely welcome your advices, suggestions and inquiries.
