Prod Model: |

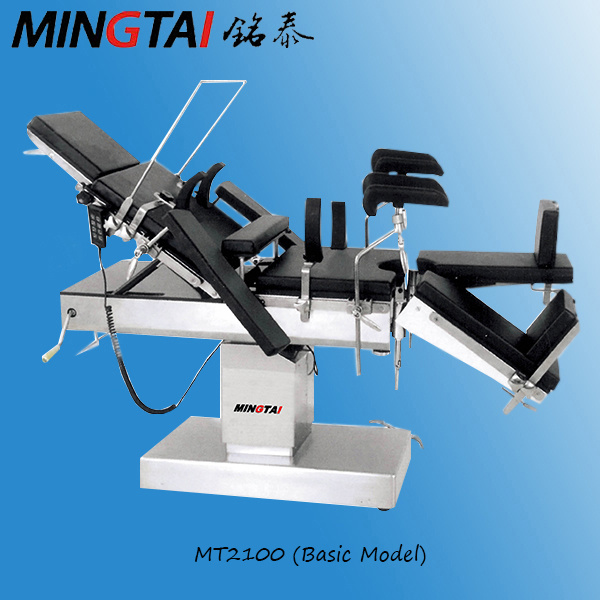

MT2100(Basic Model) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size:150×78×103cm: |
202 Stainless Steel Cover |
Waist Bridge Lift Up: |
100mm |
Certificate: |
CE,ISO9001,ISO13485 |
Type: |
Medical Table |
Material: |
Metal |
Folded: |
Unfolded |
Product Description
Main material:
1. Multi-function 5 electro-motor surgical table
2. Memory sponge mattress
3. Stainless steel cover
4. Longitudinal movement, table board can be transilluminated by X-ray
Main feature:
1. Concise design: Totally enclosed appearance, Ultra Thin table board, lifting column, base and flanks frames, provide much space for C-arm, load bearing is 160kg
2. Longitudinal movement: Longitudinal slide way can make the operation table longitudinal move, C-arm, X-ray and other imaging equipment can transilluminate the patient without moving them.
3.5 section operation table board: Head board, back board, kidney elevator, hip board and leg board.
4. X-ray transillumination: Table board made by polymer polymerization material, supporting taking photo by C-arm and X-ray. X-ray cassette can be loaded through X-ray cassette slideway.
5. Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable
6. Antiseptic surface: Base, lifting column sleeve is made by wiredrawing stainless steel, elegant
Appearance, antiseptic, antirust, easy for clean and disinfection.
7. Computer control: Using microcomputer hand control adjusts the relative operation position. Picture printed on the button indicates the function, easy to understand and has long life
8. The operation table has excellent function, elegant appearance, easy to operate. The memory mattress, thickness is 70mm, effectively relieve patients pressure point, prevent postoperative bedsore occurred
9. Machine design is in line with IEC60601-2-46, different accessories can be configured to suit the different needs of surgery
Parameters |
MT2100( Basic model ) |
Length |
2100±50mm |
Width |
500±20mm |
Lowest and highest table height |
(750-1000) ± 50mm |
Custom table height of up and down |
between 200-450mm |
forward and backward tilt |
≥28°/ ≥18° |
Table longitudinal scope |
400±50mm |
Left/right tilt |
≥18° |
Leg board down |
≥90° |
Leg evagination |
≥90° |
Back board up |
≥80° |
Head board up/down |
≥90° |
Waist bridge lift up |
≥100mm |
Power |
AC 220V ± 10%, 50Hz |
Input power |
500VA |
