| Prod Model: |
SXD8804 for electric operating table |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Length: |
2100mm |
| Max Height: |
1000mm |
| Width: |
480mm |
| Min Height: |
750mm |
| Supply: |
220V, 50Hz |
| Plus Material: |
Stainless Steel |
| Use For: |
Surgical Procedure |
| Use: |
X-ray Examination |
| Medical Device Supervision Type: |
2 |
| Medical Device Registration No: |
Su20132541504 |
| Type: |
Operating Table |
| Kind: |
Ophthalmology |
| Certification: |
ISO13485 |
| Group: |
Adult |
Product Description

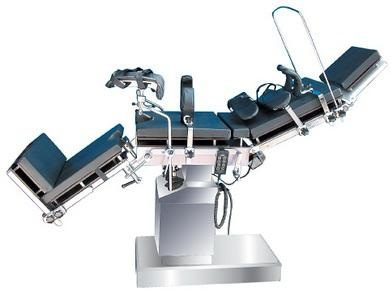

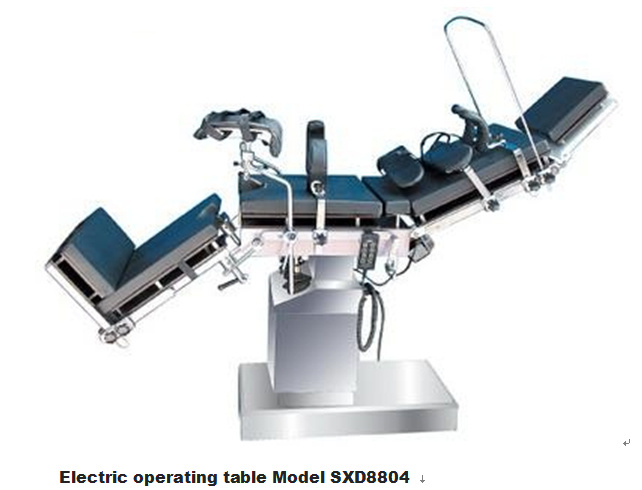

Electric operating table Model SXD8804
This bed is suitable for surgical procedures of the head, neck, thorax and abdomen, perineum and extremities as well as for gynaeclolgical, oto-rhino-laryngological and orthopaedics operation., The table top, made of double-decker plastic plate, X-ray examination may be carried out on it while the operation. It's raising, lowing, lateral tilt, reversed trendelenburg and trendelenburg movement, back section bending are all controlled by electrically. It's adjustment easy, performance is reliable.
Specifications
Length: 2100mm
Max Height: 1000mm
Width: 480mm
Min Height: 750mm
Main Function and date:
Reversed Trendelenburg ≥ 25°
Back Section Raised from the Horizontal ≥ 45°
Supply AC 220V± 10%, 50HZ
Back Section Lowered from the Horizontal ≥ 15°
Trendelenburg ≥ 25°
Leg section Lowered from the Horizontal ≥ 90°
Head Section Raised from the Horizontal ≥ 45°
Leg section Opened ≥ 90°
Head Section lowered from the Horizontal ≥ 90
Kidney Bridge Elevation ≥ 100mm
Lateral Tilt ≥ 15°
Taixing Suxing Co., Ltd. Is the leader manufactory of operating table, X ray film processor, X-ray machines and developer & fixer liquid in China. We main produce "SX" all kinds of operating table, delivery bed, medical-use X ray film processors and industral-used deep channel automatic X ray film processors and 100mA, 200mA, 300mA, high frequency X-ray machines. Most of them pass CE and ISO certificate with high quality.
In the past 20 years, we have already sold totally over 10000 sets of X Ray Film Processor and X-ray machines all over China and to overy 20countries and regions. Great attention is always paid to the product quality and after-sale service. The sales and after-sale services spread in various provinces make the customers greatly satisfied.
Through pains-taking working, our company have passed ISO90001: 2000 and CE quality system assessment.
Another we sell X-ray film cassettes with intensify screen, X-ray film viewer, bedsore mattress and lead protect products. They all have high quality and most with CE certificate.
Welcome to visit our website and choice our products.
