| Prod Model: |
Electric Operating Table ECOH25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Height: |
750mm~1000mm |
| Length And Width: |
2100mmx480mm |
| Reversed Trendelenburg/Trendelenburg: |
20o |
| Lateral Tilt (Left/Right): |
15o |
| Head Rest(up/Down): |
45o/90o |
| Kidney Bridge Elevated: |
100mm |
| Leg Section Lowered From The Horizontal: |
90o |
| Safe Working Load: |
135kg |
| Type: |
Operating Table |
| Certification: |
ISO13485 |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
| Kind: |
Electric Operating Table |
Product Description

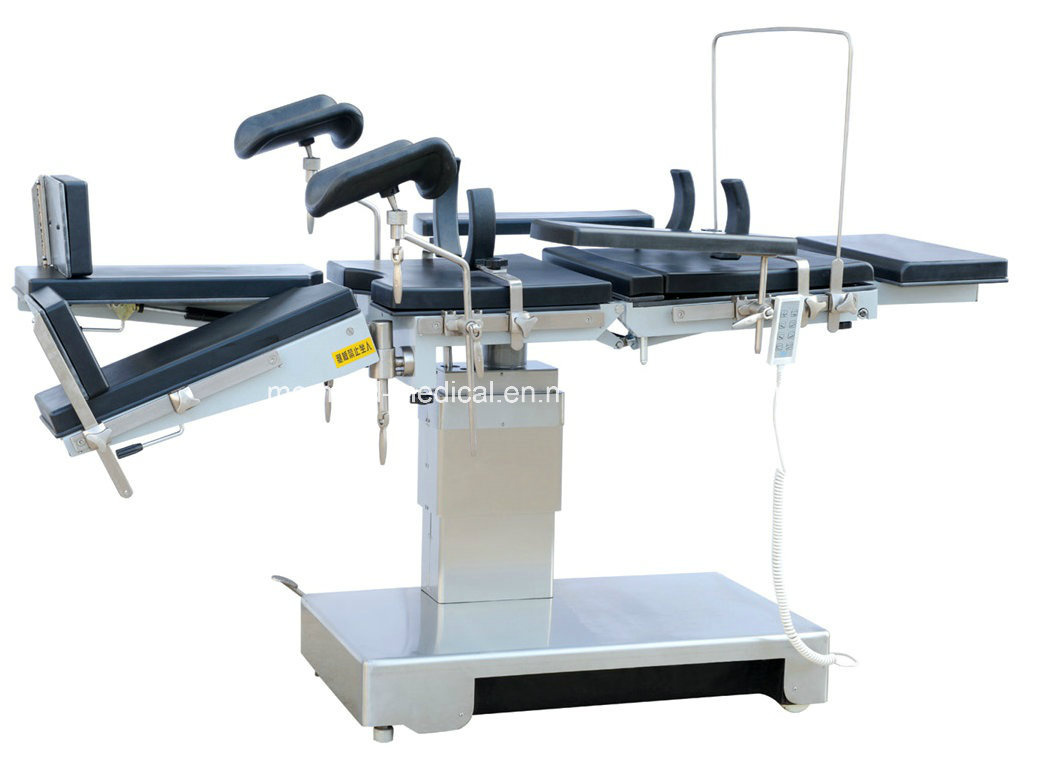

Electric Operation Table ECOH25
This Electric Operation Table ECOH25 is suitable for surgical procedures of the head, neck, thorax and abdomen, perineum and extremities as well as for gynaeclolgical, oto-rhino-laryngological and orthopaedics operation., The table top, made of double-decker plastic plate, X-ray examination may be carried out on it while the operation. It's raising, lowing, lateral tilt,reversed trendelenburg and trendelenburg movement,back section bending are all controlled by electrically. It's adjustment easy, performance is reliable
Main Usage & Structure:
Electric operating table is suitable for surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as for gynaecological, obstetrical, urological, otorhino laryngological and orthopaedics operations. It's raising, lowering, lateral tilt, reversed trendelenburg and trendelenburg , the up-down folding of the back section are all conducted electrically and controlled by buttons.
Dimension of table top:
Overall Length.......................................…2100mm
Width.............................................….........480mm
Dimension of section:
Head Section.......................................…..280×325mm
Back Section.........................................….500×480mm
Seat section.......................................…... 530×480mm
Leg Section.......................................….. ..510×236mm
Foot Section.......................................… ..180×273mm
Kidney Bridge.......................................…100×480mm
Table top of from floor:
Max Height................................................1000mm
Min Height................................................750mm
Range of movements:
Reversed Tendelenburg.......................................... ...≥200
Trendelenburg...............................................................≥150
Lateral tilt..........................................…..........................≥150
Adjustment of sections:
Head Section Raised from the horizontal....................... ≥450
Head Section lowered from the horizontal.......................≥900
Leg Section Lowered from the horizontal...............…......≥900
Leg Section opened....................................................….≥900
Back Section Raised from the horizontal..........................≥450
Back Section lowered from the horizontal.........................≥150
Kidney Bridge Elevated....................................................≥100mm
Safe Working Load..........................................................135kg
Lifting speed................................................................4~16mm/s
Foot and leg board board into a horizontal or vertical.
IPX4 Ingress Protection:IPX4
Power: AC220V,50Hz
Internal electric source:(DC)24V
Battery capacity ≥ 2.4AH Device safety sort I B
Structure:
Electric Operating Table is made up of the table top, the main part, the electric controlling part and the accessories, etc. It's raising, lowering, lateral tilt, trendelenburg and reversed trendelenburg movements ,back section bending are all drived by the motors.
The table top is made up of head section, back section, seat section, leg section and kidney bridge. The head section can be disassembled. The head section can be raised or lowered from the horizontal. The leg section can be lowered from the horizontal and opened. The back section can be raised or lowered from the horizontal. Table top is made of engineering plasties, thus X-ray examination of can be carried out on it.
The main part includes rotary frame, lateral tilt arrangements, trendelenburg and reversed trendelenburg arrangements, ascending and descending arrangements and the base.
| Numberal order | Name of accessories | Number | |
| 1 | Head section | 1 | |
| 2 | Stand for anaesthetic bottle | 1 | |
| 3 | Body support | Large 1.smart 1 | |
| 4 | Shoulder support | 2 | |
| 5 | Arm rest | 1 | |
| 6 | Knee crutch | 2 | |
| 7 | Cushion | 1 | |
| 8 | Foot Section | 2 | |
| 9 | Body Restraint Strap | 1 | Optional |
| 10 | Handle | 1 | |
