Electric Linear Actuator Kits 12VDC 6000n Load Capacity (FY011)

Electric Linear Actuator Kits 12VDC 6000n Load Capacity (FY011)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: FY011
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function: Driving
Stroke: 50-1000mm
Input Voltage: 12VDC/24VDC
Load Capacity: 750n/1000n/1500n/2000n/4000n/6000n
Limit Switches: Inner
Protection Class: IP43/IP65
Warranty: 2 Years
Type Of Duty: S2-10min
Color: Black or White

Product Description


CE approved
RoHS approved
Good looking
Quiet and smoothly
Inner limit switch
IP 54 available
Wildly used in electric sofa, recliner sofa, hospital bed, home care bed

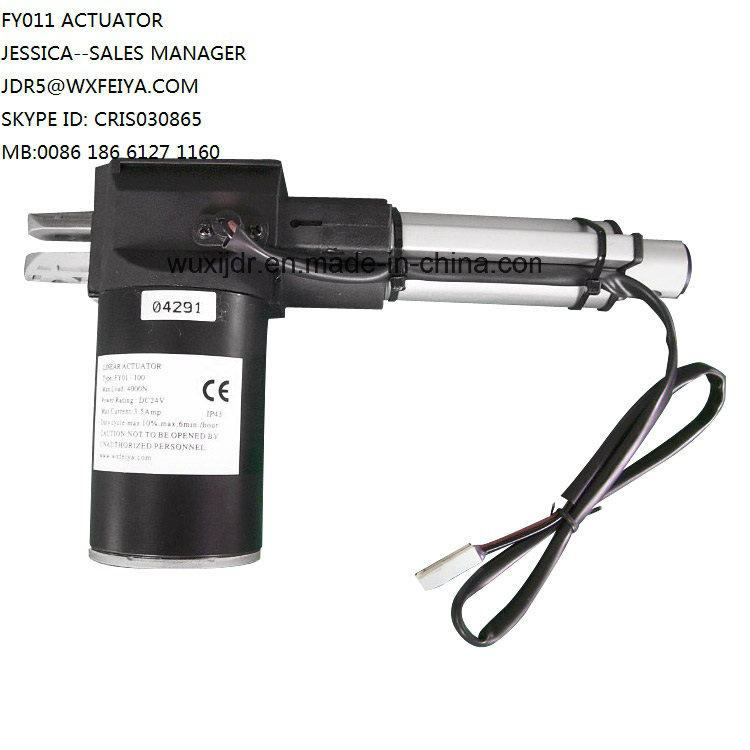

FY011 12volt 24volt Electric Linear Actuator with Controller for Home Bed, Medical Bed, Beauty Bed, Recliner Chair, other Furniture Mechanism

The Model FY011 Linear Actuator is widely used for electric bed, sofa, chair, truck, trailer, and other industrial application.

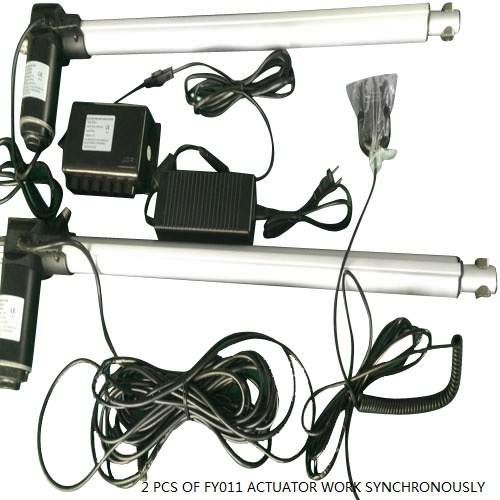

It used to make the bed or other Furniture lift and down, the power of the actuator comes from the control box, you may use 1 control box & handset to operate with the Linear Actuator.

Technical specifications of FY011 Trailer Linear Actuator:

Model No.: FY011

Stroke: 50-1000mm

Installation dimension: Stroke+175mm

Load capacity: 750N, 1500N, 4000N, 6000N

Free load speed: 30, 18, 8, 4mm/s

Input voltage: 24V DC / 12V DC

Limit switch: Inner

Protection grade: IP43/IP65

Type of duty: S2-10min

Operation temperature: -26~65 centigrade

Features:

Material: Aluminum and plastic

Color: Black

Warranty: Two years

Certification: CE/EMC+LVD

Options:
Stroke: 50~500mm, the linear actuator can design according to customer's requirements
Free load speed: 4mm/s ~ 30mm/s
Rated load speed: 3mm/s ~ 25mm/s
High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator.

Item: Electric Linear Actuator, Electric Linear Motor
Series: FY series
Item Number: FY011, FY012, FY013 FY04, FY015, FY016, FY017
Delivery time: 3~7 days for samples

High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor.


Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.

Specification of Our Electric linear actuator:
Max. Thrust: 4000N, 6000N, 8000N
Voltage: 24VDC or 12VDC, Motor Drive
Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement.
Duty cycle: 10%
Ambient temperature -26° C to +65° C
Standard protection class: IP 43
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.
Name:Linear  Actuator
Model:FY011
Usage:Electric  Bed,   Electric  Sofa,   Massage  Chair,   Dental  Chair,   other  Industrial  use
Input  Voltage:12v  or  24v  DC
Load  Capacity:750N,   1500N,   4000N,   6000N
Free  Load  Speed:30mm/s,   18mm/s,   8mm/s,   4mm/s
Standard  Stroke:50  mm  ---  1000mm  (Optional)
Installation  Dimension:S  +  175mm
Type  of  Duty:S2  --  10  min  (2  minutes  work,   18  minutes  rest)
Limit  Switch:Builtin  /  Inner  (can  not  be  adjust  after  left  factory)
Work  Temp.:-26  to  65  centigrade
Protection  Grade:IP43,   IP54,   IP65
Certificate:CE  /  EMC  +  LVD,   RoHS

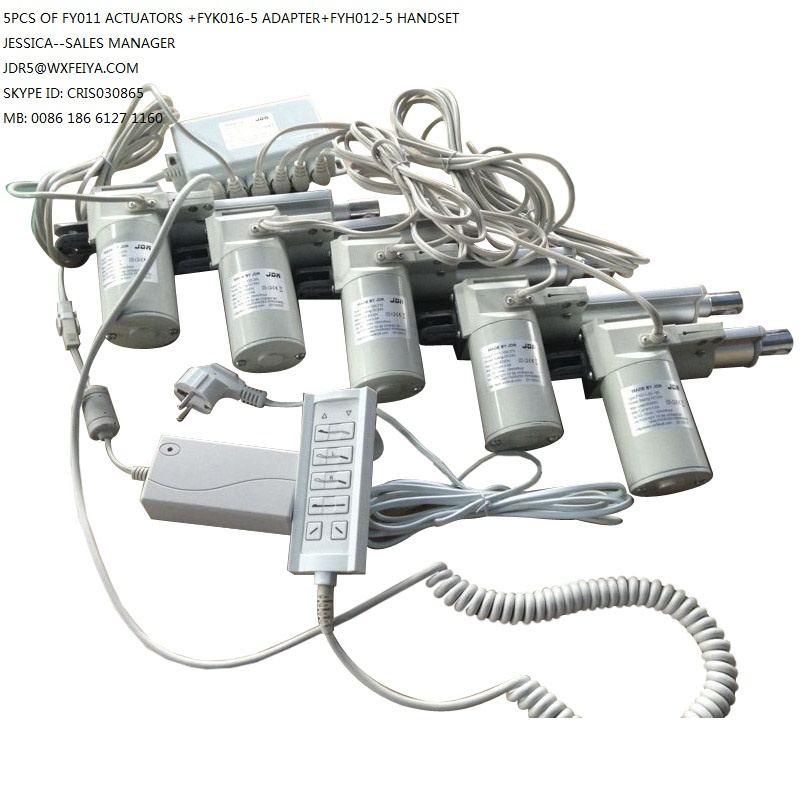

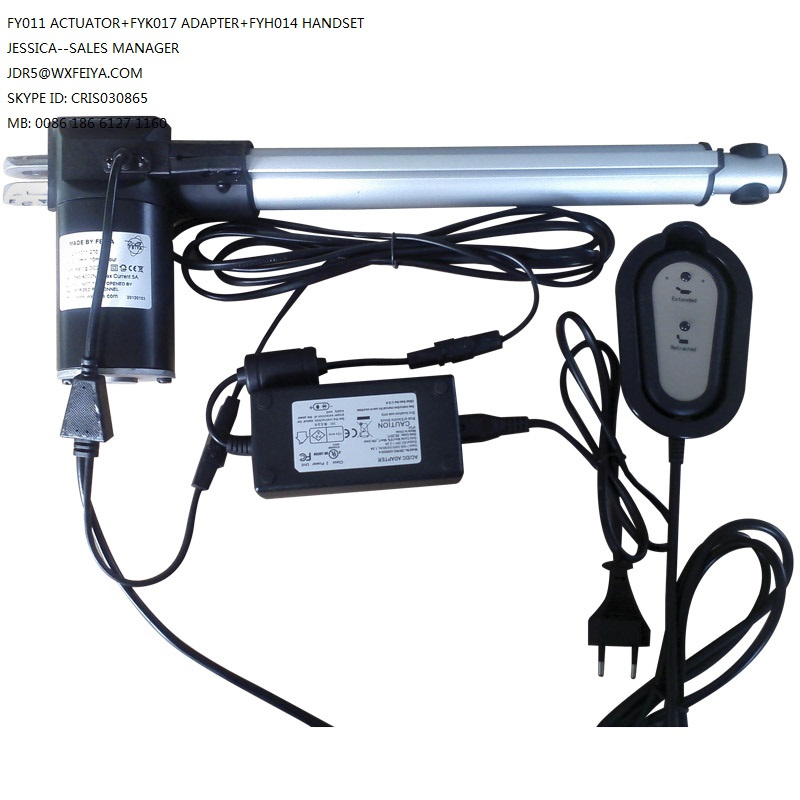

Control  Box  Used:Control  1  Linear  Actuator:   FYK011-1,   FYK012-1,   FYK015-1,   FYK016-1,   FYK017A


Control  2  Linear  Actuators:   FYK011-2,   FYK012-2,   FYK015-2,   FYK016-2


Control  3  Linear  Actuators:   FYK011-3,   FYK012-3,   FYK016-3

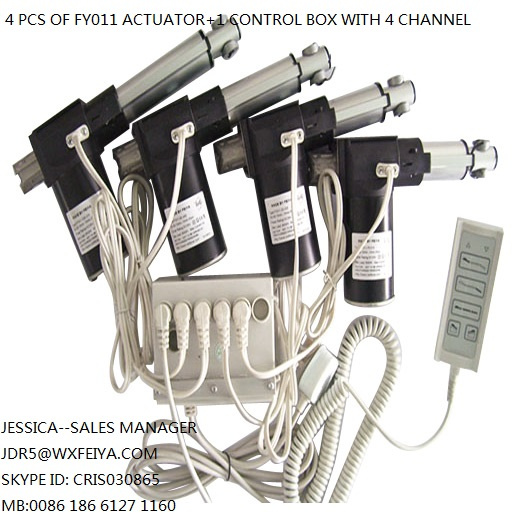

Control  4  Linear  Actuators:   FYK012-4,   FYK016-4


Control  5  Linear  Actuators:   FYK012-5,   FYK016-5


Control  6  Linear  Actuators:   FYK016-6
Handset  Used:All  FYH  Series  Handset,   Pls  contact  us  for  detail  pictures.
Wuxi JDR Automation Equipment Co., Ltd, established in 2008, . Is a professional manufacturer and trading unit integrating the research, production and marketing of DC linear actuator. JDR's predecessor is Wuxi Feiya Electronical Equipment Co., Ltd, which was established in 2004.

Our company owns several automatic production lines and enough experience in the production and research of linear actuators and controllers. Our products are popularized in many occasions when need to be implemented with rectilinear motion such as electrical nursing beds, operational beds, traction beds, massage chairs, dental chairs, electrical sofas and show-cases. These products can adjust heights, move between front and behind, as well as angle change, which take the place of gas springs as well as AC decelerators.

Dreams drive science, technology creates life. Based on domestic market and aiming at overseas market, JDR has gradually started to establish perfect marketing net both at home and abroad.

"Quality First, Customer Paramount" is our established guidelines. "Based on honesty, providing high quality products and innovative service, striving after perfection" is our management concept.

With over 80 people's efforts, JDR is becoming better and better. We have sound management system and very low stuff turnover, and every department cooperate greatly.

Now, we have successful foreign trading experience in South Europe, West Europe, North Europe, North America, South America, Middle East and Southeast Asia.

We, Wuxi JDR, sincerely welcome your advices, suggestions and inquiries.
