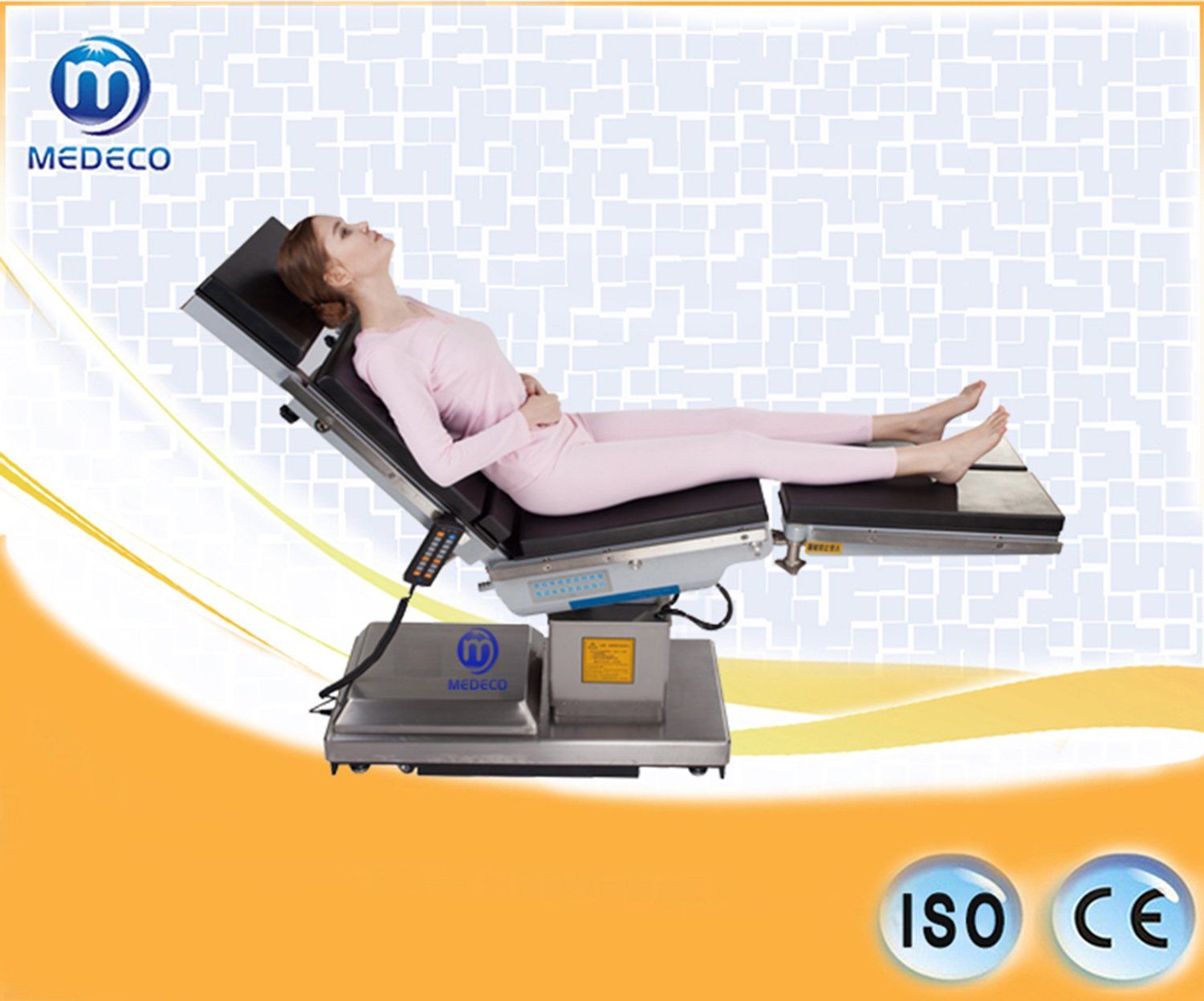

Electric Hydraulic Medical Table Ecoh001
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Electric Hydraulic Operating Table (ECOH001) |
| Table Height: |
700mm~1150mm |
| Length And Width: |
2100mmx500mm |
| Reversed Trendelenburg/Trendelenburg: |
30o |
| Lateral Tilt (Left/Right): |
25o |
| Head Rest(up/Down): |
45o/90o |
| Back Rest (up/Down): |
75o/30o |
| Footboard(up/Down&Horizontal Position): |
90o/90o |
| Longitudinal Sliding: |
530mm |
| Kidney Bridge Range: |
80mm |
| Power: |
(AC)220V, 50Hz |
| Type: |
Operating Table |
| Certification: |
ISO13485 |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
| Kind: |
Electric Hydraulic Operating Table |
Product Description

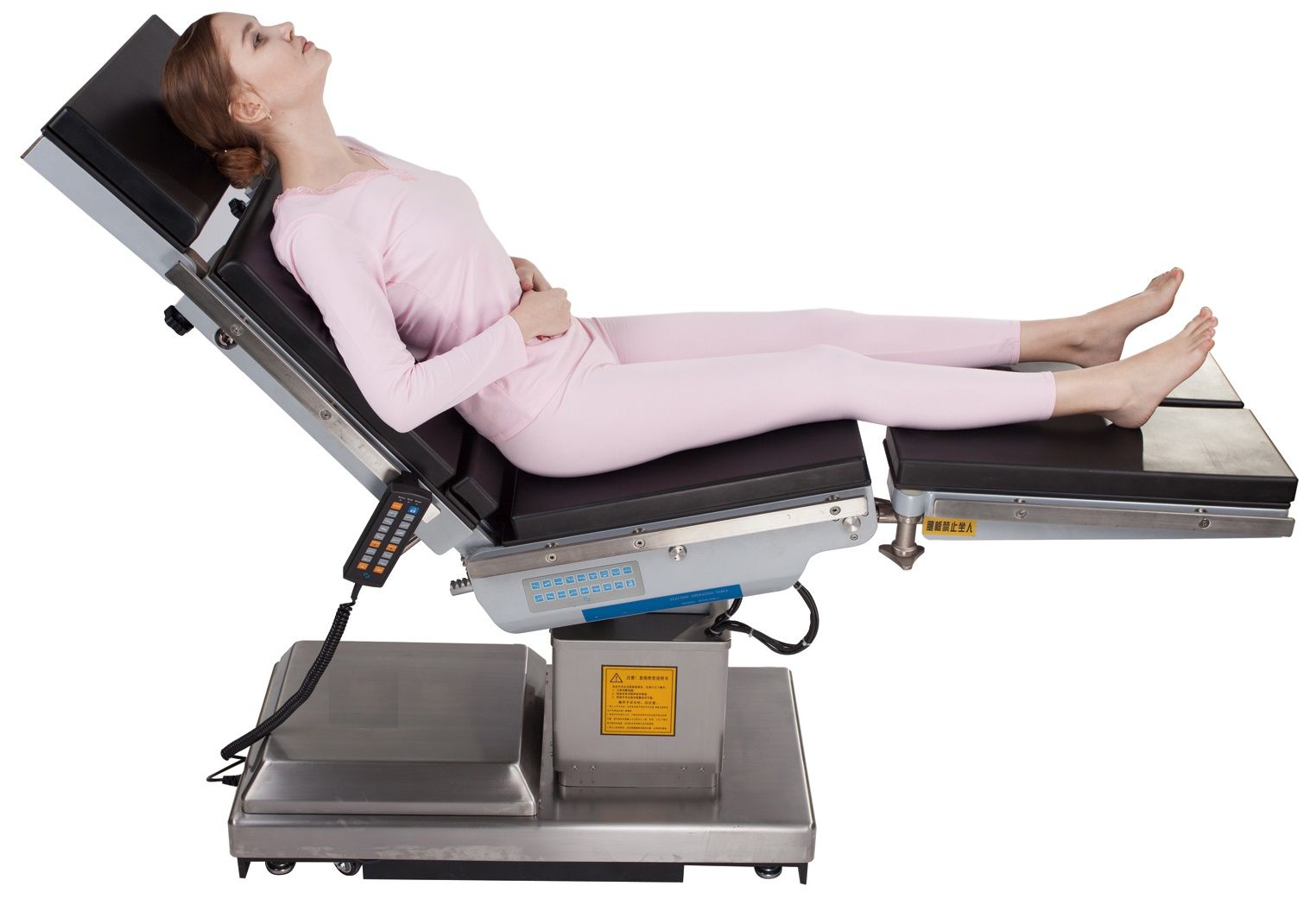

Electric Hydraulic Operating Table (ECOH001) Electric hydraulic operating table ECOH001 applied a combination of modern technology and humanization design concept, electro-mechanical drive technology.
This product combine many functions:1. Low lift and the distance of the mesa is 450mm. There is ample space for use with c-arm.2. Vertical panning up to 530mm,do not need to reverse out patient or adjust the table in advance to General c-arm pivot to the patient and image review.3.4-self-compensation-type floor the brakes locked, all mechanically operated emergency brake release systems.(Only Model JHDS-99E-1 has this function).4. It has emergency power.It can be used when the electric power is off.5. In set waist bridge.6. The mesa of the table can male V style body position 100°,Anti-V 220°.7. Using memory foam, natural plastic in accordance with the patient's body temperature and body size, removable.(Optional Components).8. Backup operating system.Main Usage & StructureMain Usage: Electric operating table can be operated for clinical use.Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.SpecificationsDimension of table top:Overall Length.......................................2100mmWidth.....................................................500mmDimension of section:Head Section...................................…250×500mmBack Section.......................................465×500mmKidney Bridge.....................................75×500mmSeat section........................................630×500mmLeg Section....................................…600×240mmTable top of from floorMin Height......................................….700mmMax Height.........................................1150mmAdjust.............................................….450mmRange of movements:Reversed Trendelenburg.................................…≥30°Trendelenburg.................................….................≥25°Lateral Tilt.......................................…..................≥25°Backward and Forward Movements.............................≥530mmAdjustment of sections:Head Section Raised from the horizontal.....................…≥45°Head Section lowered from the horizonta.........................≥90°Back Section Raised from the horizontal..........................≥75°Back Section Lowered from the horizontal.......................≥30°Leg Section Lowered from the horizontal..........................≥90°Leg section opened....................................….....................≥90°Kidney Bridge Elevated (When optional)..........................≥80mmLevel reset zero (When optional)........................................±2°Lifting speed.........................................................................4~16mm/ssafe working load...........................................................…150kg Structure1 The Electric operating table uses electro-hydraulic systems to control all the movements: height adjustment, trendelenburg and reversed trendelenburg, lateral tilt, back movements, forward and backward movement , kidney bridge elevating ,V style and Anti-V, brake. Head section, leg section and vertical rotation of tabletop are operated by manual operation.2 The table comprises of five sections: head section, back section, Waist Section(When optional), sitting section and leg section.
The forward and backward movement of tabletop can make C-arm perspective quick and easy.
| Numberal order | Name of accessories | Number | |
| 1 | Head section | 1 | |
| 2 | Anaesthetic Screen | 1 | |
| 3 | Body support | Large 1.smart 1 | |
| 4 | Shoulder support | 2 | |
| 5 | Arm rest | 2 | |
| 6 | Knee crutch | 2 | |
| 7 | Cushion | 1 | |
Shanghai MedEco Industry Co., Ltd. One excellent OR equipment and Hospital Furniture manufacturer and supplier in China under the group of Mermaid medical Industry Limited, owned series professional manufacturing Bases, Offering a combination of hospital equipment to medical professionals and hospitals around the globe, specializes in Operating lamp, Operating table, Medical Pendant, Hospital furniture, Hospital bed, Dialysis Chair, Tabletop Autoclave, Patient Monitor and much more. The company has passed international quality system ISO9001 and ISO13485 attestation and the system of national quality certification of YY/T0287 as well as EEC product CE certification.
Our long-term success is based on a value-oriented corporate culture with four central strengths: Close collaboration with our customers, the expertise of our employees, continuous developing and outstanding quality. Customer Satisfaction is our guiding principle.
Shanghai MedEco Industry Co., Ltd. Established the manufacturing and R&D base for medical equipment, and has built the brand of "MedEco" and "Mermaid"successfully. After that the company gathers a large number of high-quality technology professionals and production workers, establishes and improves the enterprise management and quality assurance system, complete with its own design, the ability of independent production.
By taking advantage of rich experience of cooperation with medical equipment distributors around the globe, our mission is to exceed your expectations, while bringing you:
Flexible and efficient one-stop outsourcing solution for medical equipment
Experienced and professional medical equipment supply chain management.
Customer-driven responsiveness at the earliest time
Unmatched value of thinking from customers' visual angle
MedEco sincerely expects to cooperate with you to create a better future!
