| Prod Model: |
ES-F-D-450*150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Platform Size: |
600*300/450*300/600*150mm |
| Certificate: |
CE |
| Volt: |
12-24V |
| Safety: |
Warning Sign and Sound |
| Equipment: |
LED and LED Cover |
| Material: |
Aluminum |
| Pedal Number: |
2-Step Ladder |
| Function: |
Folding Ladder |
| Type: |
Step Ladders |
| Loading: |
250kg |
Product Description
1. INTRODUCTION
Ø Operation

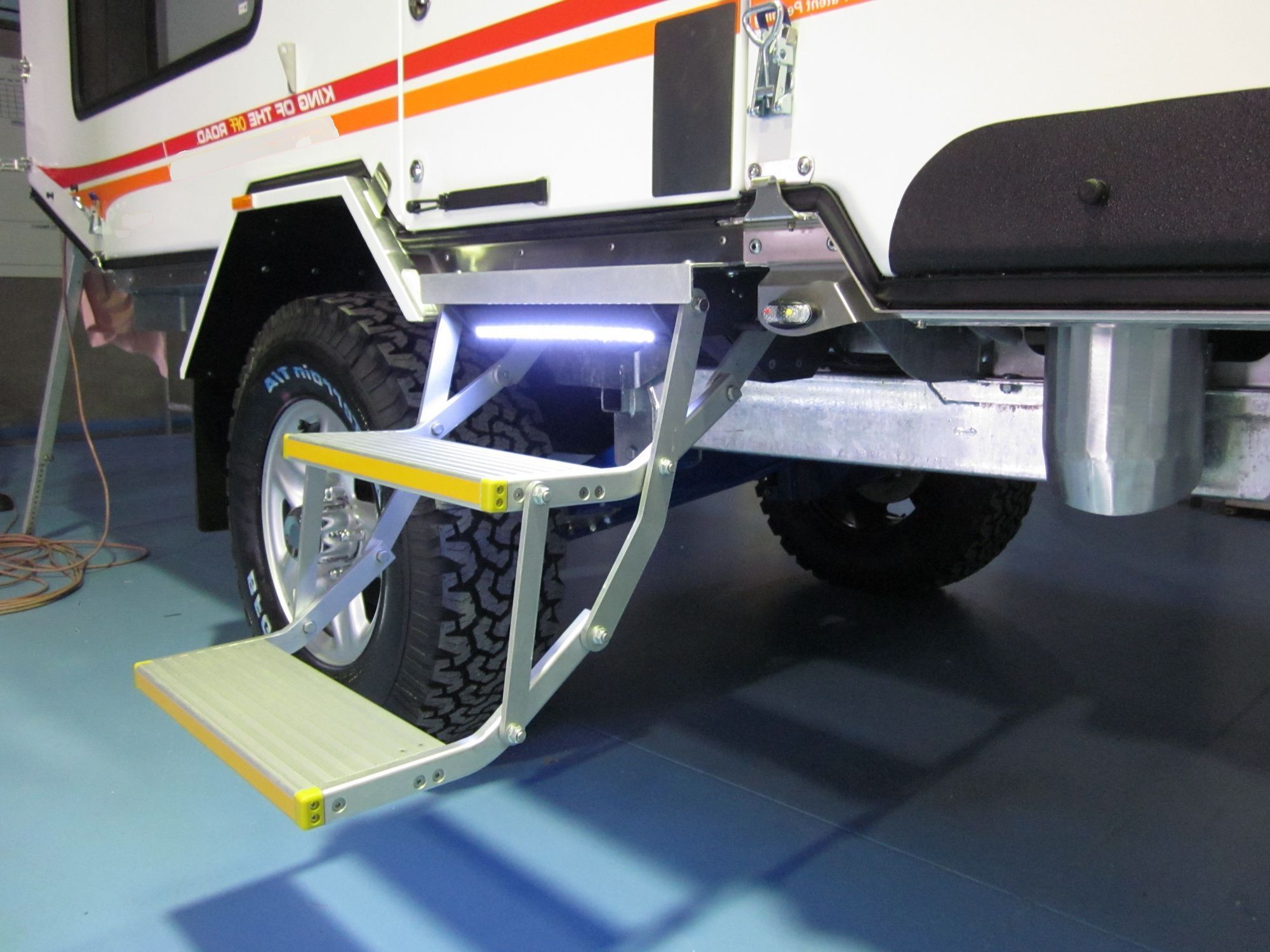

This folding electric step is controlled by motor.
This folding electric step is operated by means of a design switch which combines perfectly with the modern motor home.
Ø Construction
All folding electric steps have aluminum frames. The step is made of anodized aluminum with safe rounded edges. For most of the steps, the side plates are in anodized aluminum as well.
All steps are continuously tested. Maximum loading capacity is 200kg.
Ø Safety
A switch for connection to a warning light in the vehicle is supplied as standard.
For safety, the folding contraction electric step edges are rounded and equipped with yellow sticker at front adge.
All steps have equipped with anti-slip foot boards as standard.
For safety in the dark, this step equips with a set of LED's as standard.
2. APPLICATION
The folding contraction electric step slide-out can be mounted onto several types of vans by using our special mounting kits:
1. Sliding side door and cab hinged doors
2. Cars, minibuses, taxi
3. Adapted vehicles for disabled vehicles
4. Ambulances and accessible vehicles
5. Motor caravans and campers
3. ADVANTAGES
Ø Extremely solid and very light weight
Ø Attention to safety
Ø Attractive design
Ø Loading capacity can be 200 kg
Ø Equipped with anti-skip platform
4.Technical Function
Ø Voltage: 12V or 24V
Ø Max current during extending or stowing under normal situation: 14-16 A
Ø Extending time: 1-2 s
Ø Stowing time: 1-2 s
Ø Test weight: 250 kg
Ø Safety grade:IP67
Ø Safety loading capacity: 200 kg
Ø Noise: the noise of the step is below 70dB when working.
5. Safety Function
Ø The platform surface is the aluminum board with the function of anti-skid
Ø There are sound signal for warning during step working
Ø If the platform touches an obstruction when extending out, it will return back. Then the operator should press the switch again to extend the platform. That function is still available.
Ø This step and the vehicle door are interlocked.
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
