| Prod Model: |
TN-008 |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
Ce. RoHS. SGS |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
GS |
| Condition: |
New |
| Type: |
Wall Mount |
| Fan Number: |
Optional |
| Capacity: |
4u~18u |
Product Description

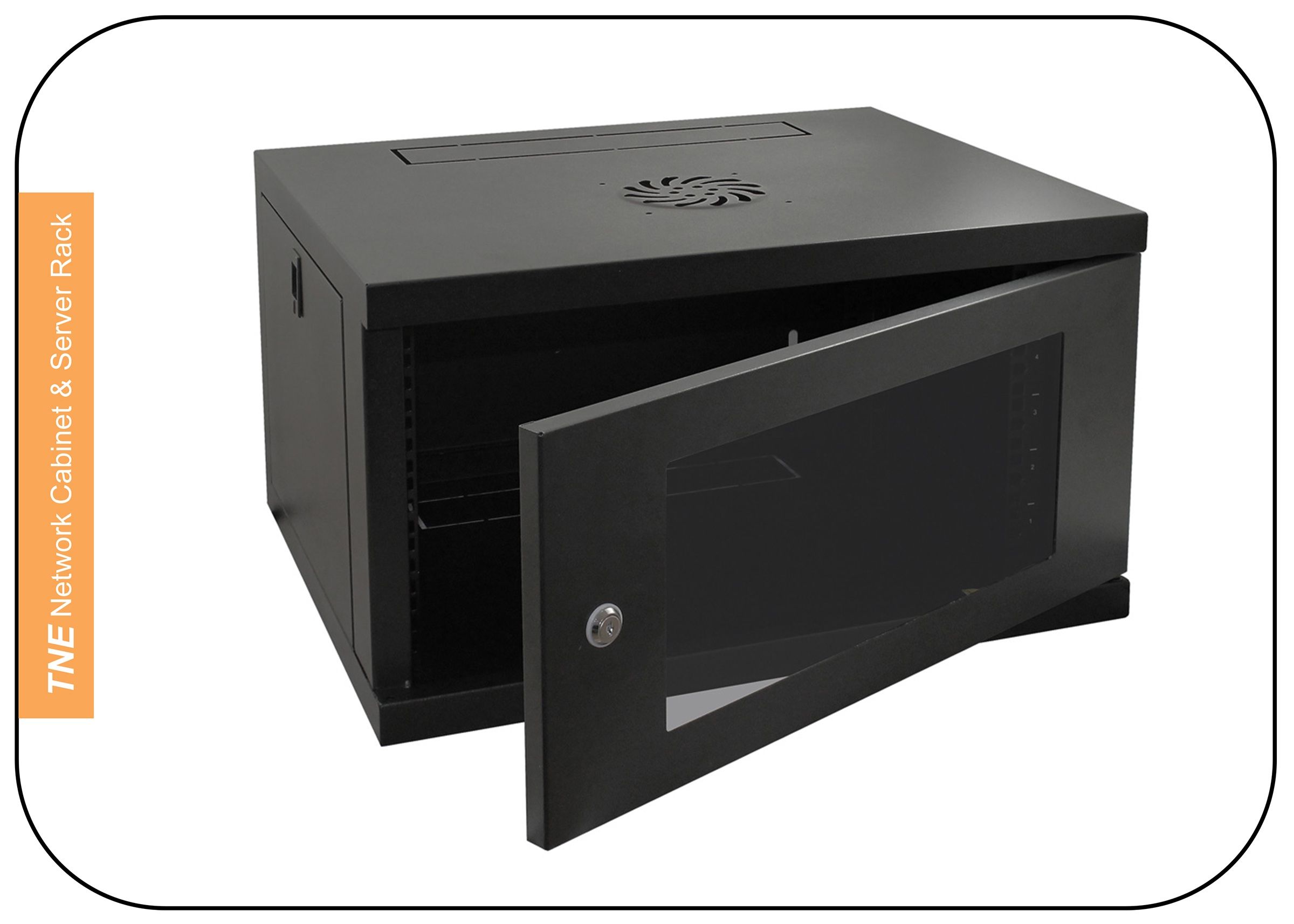

Economic Wall Mount cabinet with 550mm Width
Description
*One Section/ Single Section Wall Mount Cabinet
*Welded frame, reliable structure
*Standing or wall mounting installation
*Adjustable feet and heavy duty castors are optional
*Removable side panels, side locks optional
*Cable entry on both of top cover and bottom panel
*120mm fan available (220V or 110V)
*Turning angle of front door is over 180 degrees.
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standardMaterial:
High grade cold rolled steel.
Thickness:
Mounting profile: 1.50mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting
Degree of Protection:
IP20.
Body Color:
RAL7035, RAL7044, RAL9004 etc.Optional Accessory:Fixed/cantilever shelf, sliding shelf, for 450mm, 600mm depth cabinet
1U, 2U support board
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Optional lock for side panels
Earth kit
And so on...
Size Form
Model No.
| Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-008
| 4U | 550mm | 450mm/600mm | 279mm |
TN-008
| 6U | 550mm | 450mm/600mm | 368mm |
TN-008
| 9U | 550mm | 450mm/600mm | 501mm |
TN-008
| 12U | 550mm | 450mm/600mm | 635mm |
TN-008
| 15U | 550mm | 450mm/600mm | 769mm |
TN-008
| 18U | 550mm | 450mm/600mm | 901mm |
TN-008
| 22U | 550mm | 450mm/600mm | 1082mm |
TN-008
| 27U | 550mm | 450mm/600mm |
1304mm
|
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
