Easy to Do a Touch Screen Table by Using IR Touchscreen

Easy to Do a Touch Screen Table by Using IR Touchscreen
Price: US $ 60-75/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: LVIRT032B
Touch Screen Name: Infrared Touch Screen / Infrared Touch Frame
Touch Screen Size: 10" to 100"
Touch Point: 2/4/6 Multitouch
Touch Technology: Infrared Technology
Interface: USB Plug&Play, Driver-Free
Compatible System: Windows 7/8/10, Mac, Android
Custom Size: Support
Certificate: Ce, FCC, RoHS
Transmittance: 95% with Glass, 100% Without Glass
Response Time: <10 Ms
Aspect Ratio: 16:9
Application: Household Appliances Related
Screen Type: Infrared
Customized: Non-Customized
Screen Size: 32"

Product Description

Infrared Touch Screen
Infrared Touch Frame/ IR Touch Frame

Available Size: 10.4", 12.1", 15", 15.6", 17", 18.5", 19", 20", 21.5", 22", 23", 23.6", 24", 26", 27", 31.5", 37", 40", 42", 43", 46", 47", 49", 50", 55", 58", 60", 65", 70", 75", 80", 82", 84", 85", 98"
More sizes can be customized, please contact us.

I. Introduction

Infrared touch screen takes the infrared technology, which is to use the infrared of the x, y direction to detect and locate an object. It's circuit board frame with infrared around horizontally and vertically to form an infrared matrix of emission and receiver.

II. Features

  1. Factory EXW price
  2. Compatible with different system: Windows XP/7/8/10 /Mac OS/Android
  3. High accuracy and sensitivityLinearity Error <1.5%; Response Speed <10ms
  4. Custom size and design, OEM & ODM
  5. USB plug&play, driver-free, automatic calibration
  6. Long life, Highly durable, scratch-proof, vandal-proof &dust-proof

III. Application

POS, ATM, Desktop touch monitor, Education Display, Indoor/outdoor kiosk, Ticket machine, In-vehicles and transportation


IV. Specification
Touch Screen TechnologyInfrared Touch Screen
Standard Size10" to 100"
Ratio 16:9;16:10; 4:3
Transmittance >95%, if no glass, 100%
Linearity Error<1.5%
Response Speed<10ms
Minimum touch object5mm
Input MethodFinger, gloved hand, or opaque object
Touch TimesUnlimited
Touch Activation ForceNo
Operation EnvironmentOperating Range: -20°C ~ 70°C
Storage Range: -40°C ~ 85°C
Relative HumidityOperating Range:90%(non-condensing at max 40°C)
Storage Range:90%(non-condensing at max 40°C)
Operation VoltageTypical +DC 5V, +4.75V to +5.25V
Power SupplyUSB, power ripple max.200mV r ms
Current<2W, operating current<200mA
Agency ApprovalsCE, FCC, ROHS
Operation SystemWindows 7/8/10, Mac, Android 4.0 above version


 V.  Lead Time

Standard Sample2-3 Working days
Custom Sample 7 Working days
< 50pcs 7 Working days
50-500pcs 15 Working days
500-1000pcs 20 Working days
< 1000pcs 30 Working days
~We will try our best to ship your order ASAP~

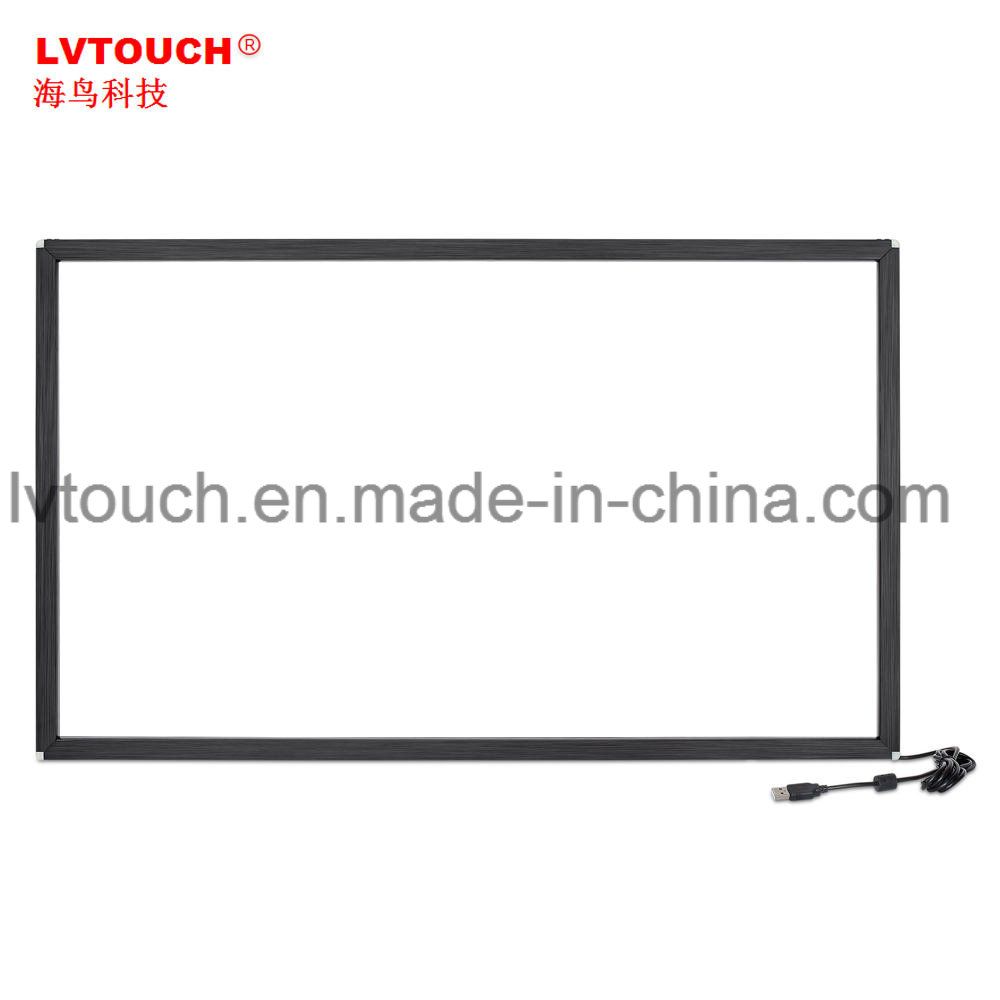

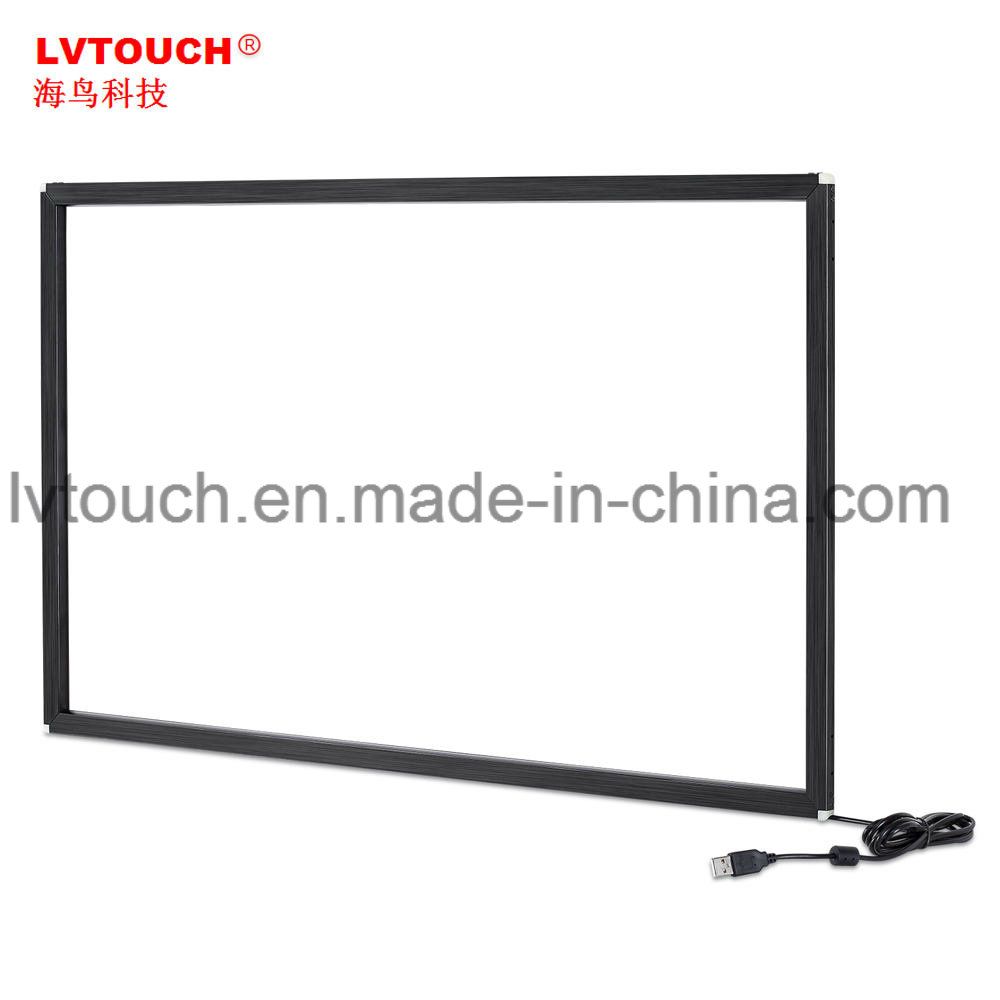

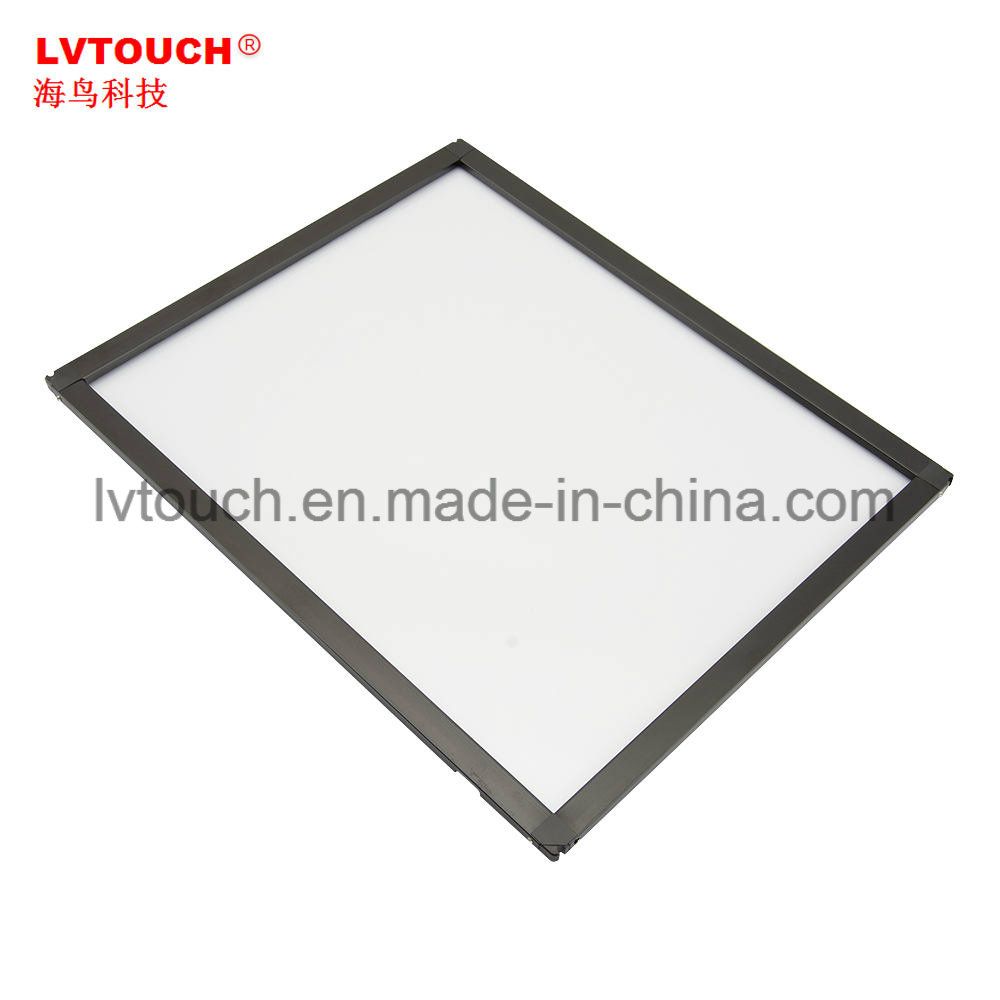

VI.  Product Picture








Shenzhen Lvtouch Co., Ltd is the professional touch screen manufacturer in Shenzhen, China. We provide stable, highly transparent, highly precise, fine performance touch screens, which are widely applied for human-computer interactive areas such as medical instruments, industrial equipment, public interactive equipment, multimedia interactive device, intelligent interactive office, entertainment facilities, kiosk, POS, ATM, GPS and so on. Now LVTOUCH main products are 4 wire resistive touch screen (5.7" to 24"), 5 wire resistive touch screen(10" to 22"), 4 wire resistive touch film(without glass) (5.7" to 24"), infrared touch screen(10.4" to 100"), touch film( 15" to 100"), capacitive touch screen(15" to 55").

LVTOUCH is a high technology enterprise with research, design, production and sales together. It have more than 100 professional workers, with advanced production equipment and testing equipment imported from Japan and America, high quality and advanced raw materials from Japan and South Korea. LVTOUCH has complete quality control system to make sure the stable quality, IQC, IPQC, FQC and OQC. Besides, our factory meets the requirement of ISO9001(2000), CE, FCC, RoHS, IP65. Our aim is to provide the excellent quality, fast delivery time, and complete after-sale support to our customers.

Now LVTOUCH exports to over 50 countries and regions of the whole world, more and more customers choose LVTOUCH as reliable cooperation partners. LVTOUCH gets good reputation and feedback from customers in the interactive equipment industry. And now, LVTOUCH is aim to provide more excellent touch screen to the development of education, financial, transportation, retail, entertainment, information, health-care, industrial control.

We are looking forward to be your partner.
