| Prod Model: |
SSS-house 15 |
| Main Steel Frame: |
H Steel, Z or C Purlin |
| Connection: |
Bolt Connection and Welded Connection |
| Wall And Roof Sandwich Panel: |
EPS, Rock Wool, Glass Wool, PU |
| Window: |
Aluminum Alloy Window or PVC Window |
| Door: |
Sliding Door or Rolling Door |
| Design Parameter: |
Wind Load, Snow Load and Earthquake |
| Surface Treatment: |
Painted or Galvanized |
| Type: |
H-Section Steel |
| Standard: |
BV,SGS,ISO |
| Trademark: |
Carbon Structural Steel |
| Forming: |
Hot-Rolled Steel |
| Connection Form: |
Bolt Connection |
| Member: |
Steel Column |
| Type Of Steel For Building Structure: |
H-Section Steel |
| Residential Wall Structure: |
Wall Stud |
| Application: |
Steel Structure Building |
| Carbon Structural Steel: |
Q345 |
Product Description

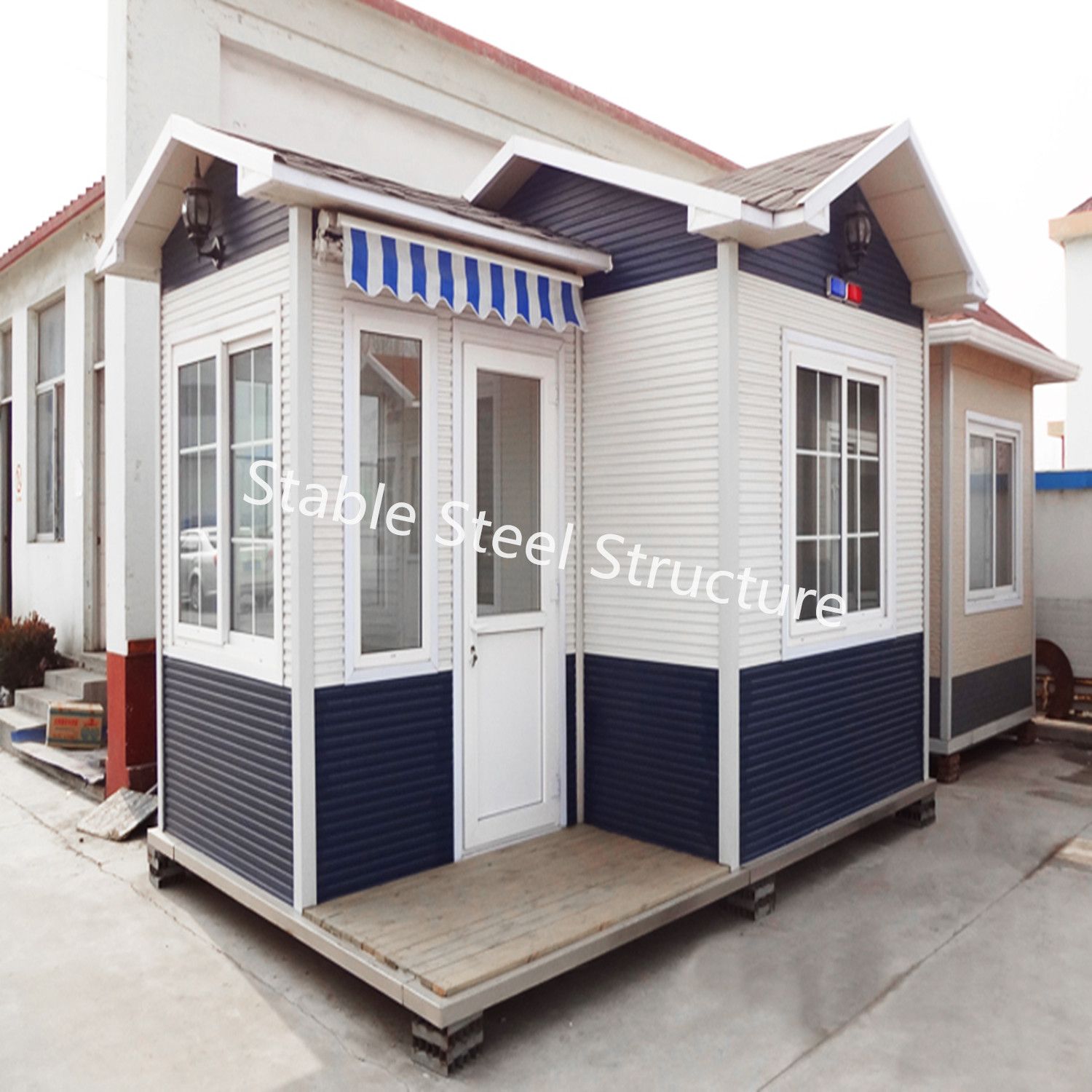

Easily Moved Prefabricated Light Steel Sentry Box HousePrefabricated Admin Office Building-Papua New Guinea
Name of Building: Prefabricated Steel Admin Office Building
Structure System: Portal Frame
Area: 793m2
Construction Site: Nipa District,Papua New Guinea
Project Details:
1. Admin Office Size: 22m*15m*5.8m
2. Roof Truss & Steel Column: 60*2, 50*2, 100*4, 200*100
3. Mezzanine System: Hot rolled steel beam+steel deck
4. Roof Cladding: 0.5mm corrugated steel sheet+50mm EPS sandwich panel as ceiling
5. Wall Cladding: 75mm EPS Sandwich Panel
6. Window: Aluminum-alloy sliding window with security mesh
7. Door: Steel entry door and Compound wooden door
8. Floor: Ceramic tiles, Laminated wooden floor
9. Electricity and Plumbing:Australiastandard wire and water pipe
10. Toilet and washing basin with Water Mark, shower cabinet, kitchen cabinet, urinals.
BUILDING AND CONSTRUCTION

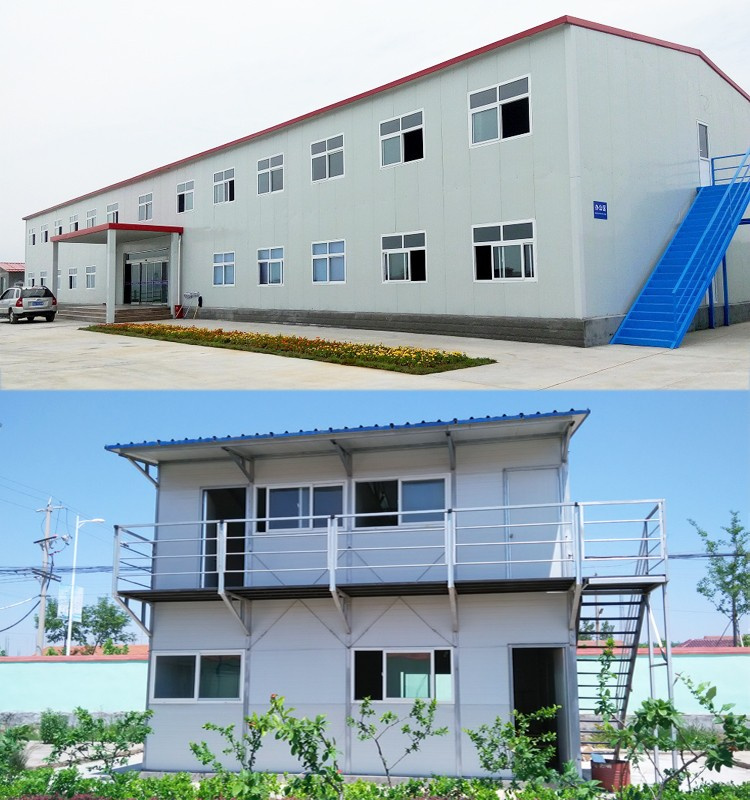

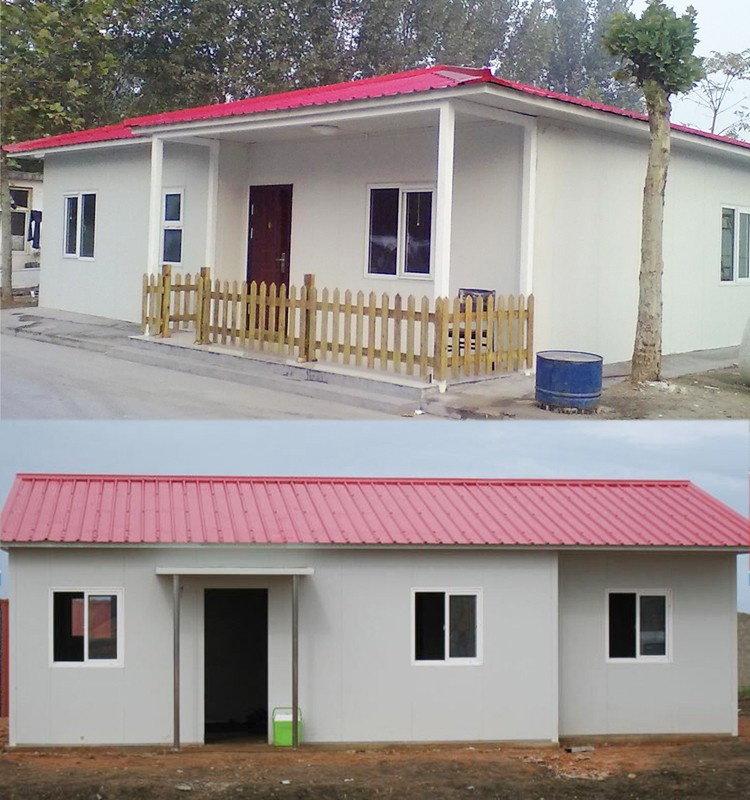

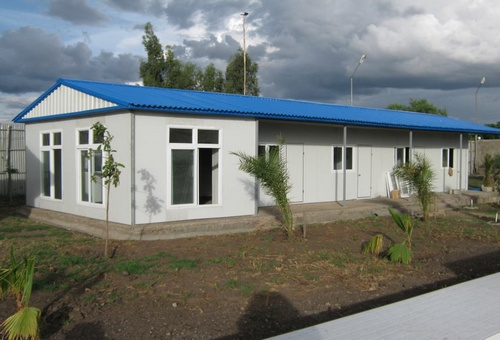

Modular Prefab steel construction HousesPrefabricated house is made of light steel as steel structure and sandwich panels for wall and roof.The insulation of sandwich panel can be polystyrene,polyurethane, rockwool and fibreglass wool. As a standardized construction product,it has below main features:Dry installation,no construction garbage caused; Environment protective materials adopted,repeated use and low cost;Flexible size and easy to assemble and disassemble with elegant appearance;Safe and durable.It is suitable for temporary buildings such as dormitory,carteen,recreation room,washing room,ect. Characteristics 1.Easy assembly and disassembly: The house can be assembled and disassembled many times, used repeatedly. 2.Low cost: unit price range from USD 30/m2 to USD 60/m2 according to customers request. 3.Fast construction and easy installation. 4.Environmental protection and economy: Prefab house design is reasonable, easy to assemble and disassemble, used circularly, low wastage, without building rubbish. Average using cost is less than other kinds of building annually.High Quality Building Projects, Quicker
Red Sea Housing Services (RSHS) offers modular construction services in a resource-efficient, off-site delivery method to enable clients to construct code-compliant prefabricated buildings in a quality-controlled factory setting. Our modular construction process offers design and planning flexibility: it can be either temporary or permanent, small or large, single-story or multi-story, an individual building, or multiple buildings arranged in a complex or campus. We help create high-quality building projects, built conforming to all applicable codes in far less time than traditional site-built construction, with 'green' consideration in terms of sustainable building materials, labor efficiency, reduced waste, reduced site disruption, and lower transportation emissions.Highlights of our modular construction services include: Services Offered:- Site Installation
- Engineering & Design
- Camp Operations & Maintenance
- Power Generation
- Turnkey Solutions
- Hospitality & Catering
- Water & Sewage Treatment
Project Units Applicable:Accommodation unit, Hospital/clinic/medical facility, Labor camp, Dormitory, Office unit, Dining area, Recreation unit, Kitchen unit, Lavatory unit, Guard house, Drill/rig camp, Hotel Unit, School Unit, Generator unit, Reverse osmosis plant, Waste water treatment unit, Water storage, Water treatment unit, Power generation plant, Relief housing facility, Heavy duty unit, Diesel tank.CE EN1090 certification:Safety Production License (No.150090-03)State Qualification Class One (No.B1084037152301-6/2)Quality Management System Certification ISO9001:2008Environment Management System Certification ISO14001:2004Occupational Health and Safety Management System Certification | No. | Sort | Name | Specification |
| 1 | Specification | length | 12000mm or customized |
| 2 | Width | 5900mm or customized |
| 3 | Wall height | 2800mm or customized |
| 4 | Clear height | 2800mm or customized |
| 5 | Roof slope | 11 degree or customized |
| 6 | Standard accessory | Wall board | 50mm-150mm thickness EPS/glass wool/PU panel,0.5mm color steel sheet.
13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.38w/.k. |
| 7 | Roof board | 50mm -100mm thickness EPS corrugated panel,
0.4mm steel sheet,13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.58w//k. |
| 8 | Door(D-1/2/3/4) | SIP single door with dimension of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is steel wood or aluminium. |
| 9 | Window(W-1) | PVC, white color, with dimension of 940*1000mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. |
| | Window(W-2) | PVC, white color, with dimension of 940*500mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. |
| 10 | Base beam | H style steel Q345, galvanized |
| 11 | Base purline | C style steel, Q235, galvanized |
| 12 | Base support | Square steel tube Q235, galvanized |
| 13 | Base lifting part | Square steel tube, Q235, galvanized |
| 14 | Base channel | Press forming steel plate or U shape steel. Q235, galvanized |
| 15 | Roof beam | C style steel,Q235, painted |
| 16 | Base panel | Plywood with 14mm thickness in room and bamboo panel with 14mm thickness in bath and kitchen |
| 17 | Decoration and connection | Color steel sheet, 0.50mm thick |
| 18 | Option | Decorative floor | PVC or laminated floor ceramic tiles |
| 19 | Drainage system | Provided plan, design and construction |
| 20 | Electric system | Provided plan, design and construction |
| 21 | Technical parameter | Bearing load | 30kg/m2 |
| 22 | Wind pressure: | 0.45KN/M2 |
| 23 | Fire proof | B2 grade |
| 24 | Resistant temperature | -20 to 50 |
Why Choose Us:
1.We have a group of professional engineers, most of whom has more than 10 years experiences in architecture field. our company has got a various of experiences in design, manufacture, installation and so on. The work staff have excellent skills. Some of them had helped customers to install the warehouse around the world.2. We will offer one stop service. construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install.3. We will send you extra bolts,purlins,panels incase any damage when install.4. Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention. 5. We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and so on.6.We will offer details packing list for every container when load so it will be easier to unload.7. Form A, Form E,CO,etc are available8. "Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choose, we'll give you a satisfied answer
Qingdao Stable steel structure Co., Ltd, is a professional enterprise specializing in designing, developing, manufacturing, marketing and constructing high quality steel structures, prefabricated houses and container houses. We have professional steel structure engineering contracting first class qualification and ISO9001: 2000 quality system certification.
Our company was established in 2004. There are 600 employees, including 5 registered engineers, 36 senior engineers and 120 professional technicians. Up to now, we have successfully undertaken and operated hundreds of international projects in more than 76 countries and regions around the world.
Our products are exported to North America, South America, Europe, Africa, Oceania and many Asian countries and regions. With the idea of "Credit builds brand", we have already established good relationships with many overseas clients.
Based on the spirit of "Credit, Professionalism, Cooperation, Mutual benefits", our company is building a comprehensive industrial chain system gradually and making great efforts to supply our quality products and perfect after-sales services to worldwide clients. Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
