| Prod Model: |
HT01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Plastic Spray or Baked Paint Finishing |
| Color: |
as Required |
| Pitch: |
75mm |
| Feature: |
Corrosion Protection |
| Connecting Way: |
Bolted |
| Operation: |
by Forklift or Stacker |
| ODM: |
Yes |
| OEM: |
Yes |
| Type Of Company: |
Manufacturer |
| Delivery Time: |
10-20 Days According to Quantity |
| Material: |
Steel |
| Structure: |
Rack |
| Serviceability: |
Common Use |
| Mobility: |
Adjustable |
| Closed: |
Open |
| Development: |
New Type |
| Weight: |
up to 1000kg |
| Height: |
Selective |
Product Description

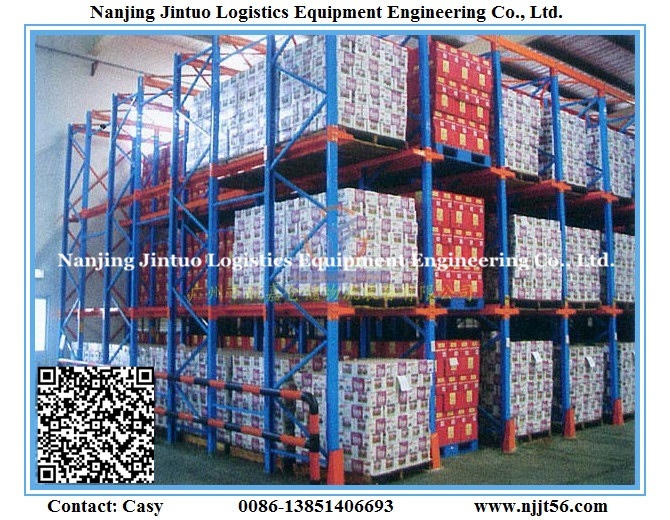

Drive in Rack, Heavy Duty Pallet Rack, Warehouse Storage Rack
Drive-in Racking is suitable for storing goods of few varieties by great quantity. Fork lifer may go into the passage of each row of the rack improving the utility ratio of warehouse.
Using minimal space for access aisles and lanes, Drive-in Racking provides a high-density and very space-efficient bulk storage system. With the first pallet into a lane being the last out, stock selectivity is restricted, but when loads are delivered and dispatched in batches, this is not a difficulty. Pallets are stored on joist in the depth of the racking and trucks enter to deposit or retrieve loads.
Drive in pallet rack
1. Loading capacity: 2500kg/layer
2. Colors: Available in various of colors
3. Size: L2500*W1200*H5000mm, Customized size available
Features:
1. Made of continuous rows of upright frames interconnected by spacers
2. Forklift trucks drive along each aisle (lane) to store or retrieve pallets
3. Each aisle consists of several levels of pallet support rail
4. Pallets are placed on the pallet support rail one after another along the aisles
5. Top and back bracings are used to stabilize system structure
6. All components are epoxy powder coated except the galvanized footplates
7. Accessories include shim, upright protector, forklift guide rail
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length/mm*width/mm*height/mm)
C) The layers of each shelf
D) The loading weight of each layer
E) The RAL color you want
Welcome to Jintuo!!
Any more details, please feel free to contact me!
Contact Information:
Casy
Tel: 0086-025-85363177, 0086-13851406693
Fax: 0086-025-86109278
Packing
Workshop
Products | Heavy Duty Pallet Rack | Medium/Light Duty Rack |
| Loading Capacity | 1000-5000KG/layer | 100-1000KG/layer |
| Specification | Main Racking:
L2000*D1200*H4800mm*4layers
(Designed by different demands)
Beam:L1800~5000mm
Layer board: 1.5~2.5mm
Customized sizes and colors are welcomed | Main Racking:
L1500*D1200*H3000mm*4layers
(Designed by different demands)
Beam: L1200~2500mm
Layer board: 1.0~2.0mm
Layers: steel panel/net or wood veneer
Customized sizes and colors are welcomed |
Nanjing Hengtuo Storage Equipment Co., Ltd. is an enterprise who always commits herself to develop convenient logistics equipment and efficient storage equipment. Our goal is to build a leading company in logistics. The enrollment of our company capital is more than USD 140, 000 and the total investment is over USD 2, 700, 000. We have customers from all over the world, such as southeastern Asia, Japan, Europe, Africa and so on.
Our company covers an area of over four hectares with a building space of over 5800 square meters. We have more than 160 staff, among whom more than 10 people are professional senior engineers. Based on the foreign advanced technology and combining Chinese storage equipment with features of automatic production line, we have developed
1) Logistics containers, such as a variety of storage cages, pallets and packing materials;
2) a series of rack products such as Install-able Assemble Racks, Through Type Racks, Supermarket Racks, Attic Type Racks, Flow-through Racks,;
3) Station Equipment: Pallets, Metal Boxes, Tool Cabinets, Case Racks, Trucks, Stacking Frames;
4) Handing Equipment: Pallet Truck, Trolley, and Handcart.
Our products are widely used in exhibitions, supermarkets, companies, banks, hospitals, factories, libraries, warehouses and so on.
We insist on the scientific management principles: "Live with best quality and develop with good reputation". Emphasizing on quality and reputation is our weapon to keep up with the status in this field.
We will be glad to provide good products and perfect service to you and welcome your visit and cooperation.
