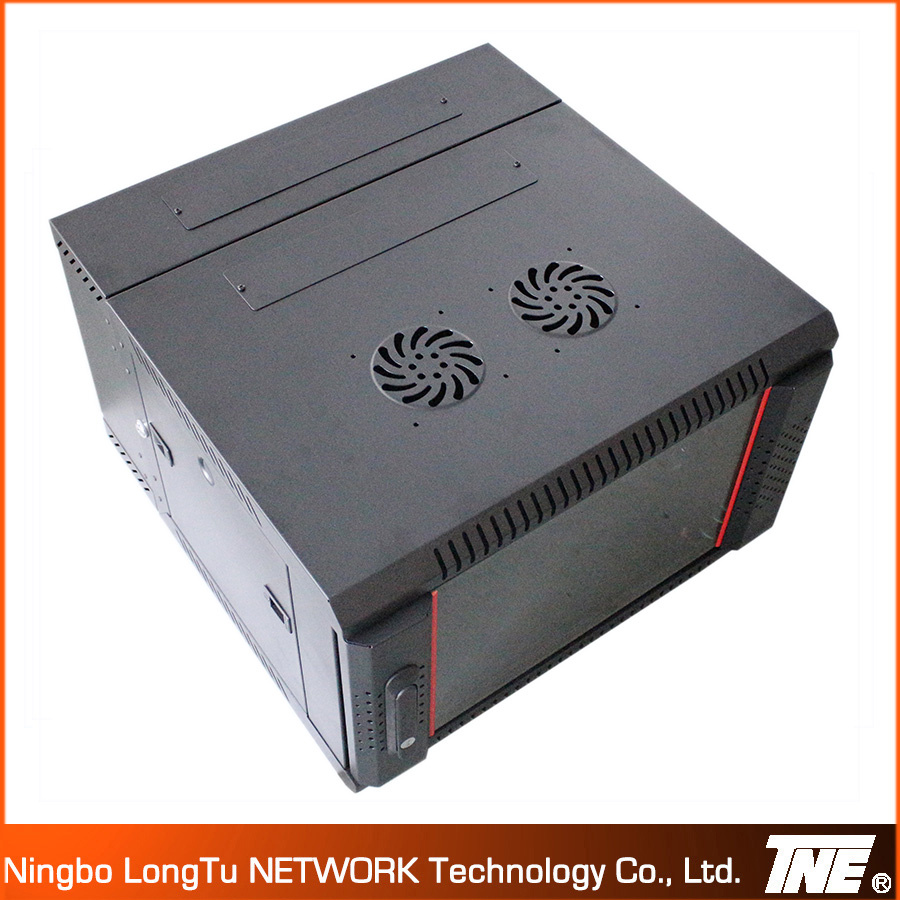

Double Section Wall Mount Cabinet with Special Design
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TN-006 |
| Color: |
Ral7035, Ral9004, etc |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Packing Style: |
Assembled or Dis-Assembled |
| Shipping: |
Sea, Air, Train, Truck |
| Material: |
SPCC Cold Rolled Steel |
| Certificate: |
Ce. RoHS. SGS |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Wall-Mounted Cabinet |
| Certification: |
RoHS |
| Condition: |
New |
| Fan Number: |
One or Two |
| Capacity: |
4u~27u |
Product Description

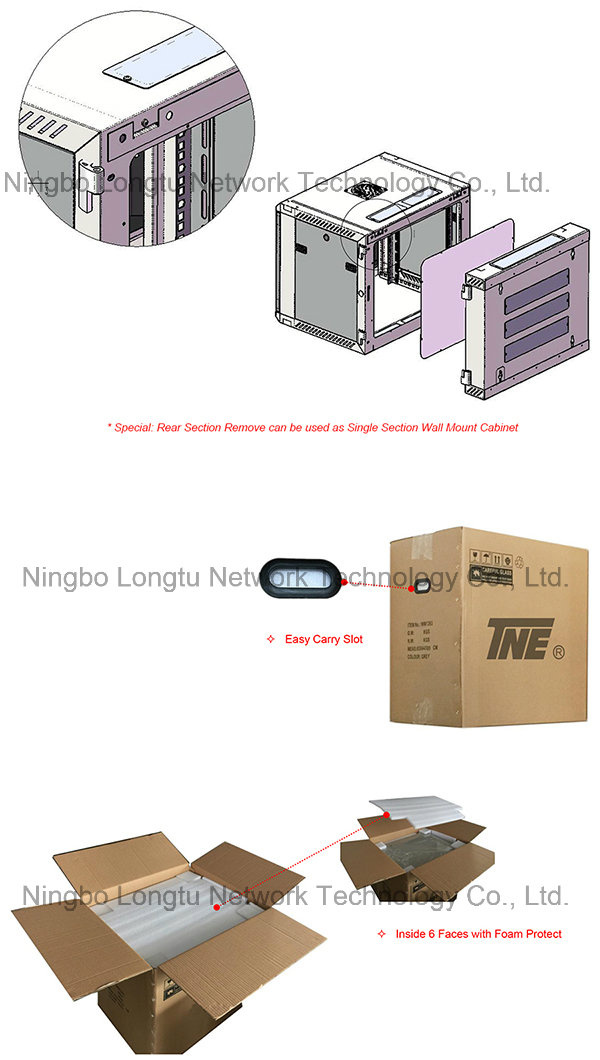

Wall Mount Innovation Combination Single Section with Double Section Wall Mount Cabinet
Specifications:
- Double Section Wall Mount Cabinet
A. Flat Packing B. Weld Structure - 150mm depth Rear Section Door
- Welded frame, reliable structure
- Standing or wall mounting installation
- Adjustable feet and heavy duty castors are optional
- Easy mounting installation
- 19" standard installation
- Removable side panels, side locks optional
- Cable entry on both of top cover and bottom panel
- 120mm fan available (220V or 110V)
- Turning angle of front door is over 180 degrees.
1. Standard
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard
2. Material
High grade cold rolled steel.
3. Thickness
Mounting profile: 2.00mm others: 1.2--1.5mm
4. Loading Capacity
Static Loading: 800kgs
5. Surface finish
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
6. Degree of Protection
IP20
7. Body Color
RAL7035, RAL9004 etc.
Optional Accessory- Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
- 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
- 1U, 2U support board
- Vertical Cable manager
- 19'' Power distribution unit(PDU)
- 19'' Blanking plate 1U, 2U, 4U
- Heavy duty castor, Heavy duty castor with braker
- Optional lock for side panels
- Earth kit

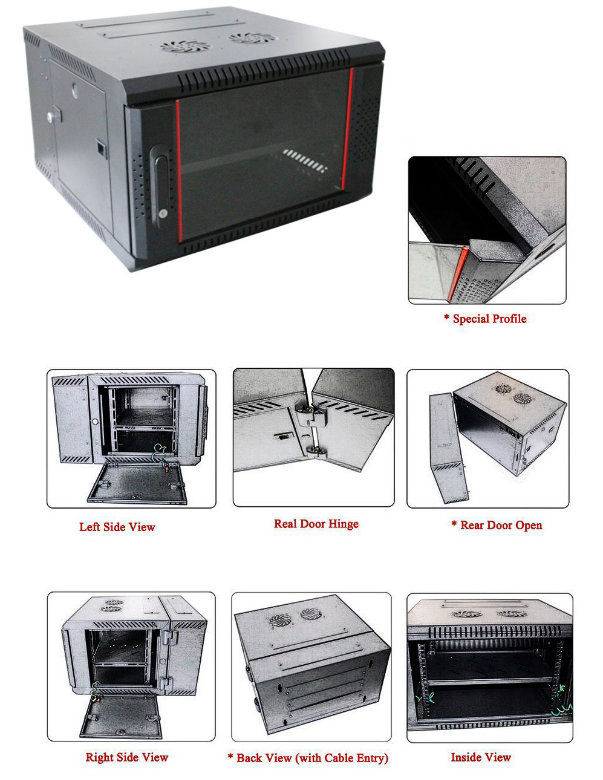

Pictures Show
Size Form
Model No.
| Capacity(U) | Width(mm) | Depth(mm) | Height(mm) |
TN-006
| 4U | 600mm | 550mm/600mm | 279mm |
TN-006
| 6U | 600mm | 550mm/600mm | 368mm |
TN-006
| 9U | 600mm | 550mm/600mm | 501mm |
TN-006
| 12U | 600mm | 550mm/600mm | 635mm |
TN-006
| 15U | 600mm | 550mm/600mm | 769mm |
TN-006
| 18U | 600mm | 550mm/600mm | 901mm |
TN-006
| 22U | 600mm | 550mm/600mm | 1082mm |
TN-006
| 27U | 600mm | 550mm/600mm | 1304mm |
FAQ
1) What is your Payment term?
---TNE accept T/T, L/C, Western Union.
2) What is your Trade term?
---TNE do EXW, FOB, CNF, CIF terms.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
> Year 2003 TNE Founded
> Year 2006 TNE gains Export and Import Right
> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.

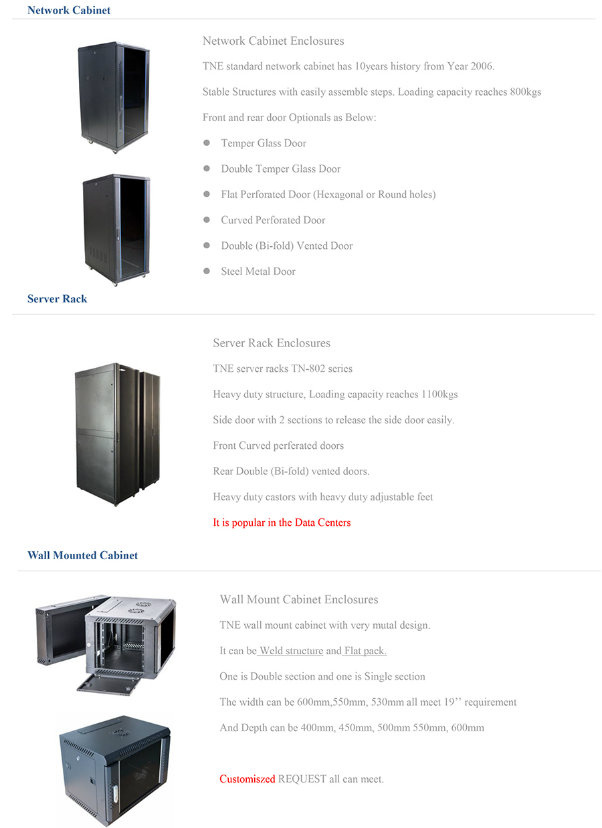

TNE mainly Products as below:
Network cabinet
Server Rack
Wall Mount Cabinet
Open Frames
PDU...
TNE Machinery:
CNC Punching Machine: 4 sets
Laser Cutting Machine: 2 sets
Bending Machine: 11 sets
And other small Machines...
TNE owned Painting Line with Environment evaluation certificate
Welcome to contact with us to start the business in Year 2016! !
