| Prod Model: |
6-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Layer: |
Double Layer |
| Application: |
Gold, Copper, Tin, Zinc, Tungsten, Tantalum |
| Effective Separating Particle Size: |
2-0.022 |
| Deck Type: |
Coars Deck, Find Sand Deck or Slime Deck Optional |
| Testing: |
Supply |
| Flowchart: |
Supply |
| Installation: |
Supply |
| Spare Parts: |
Supply |
| Delivery Time: |
30 Days After The Down Payment |
| Type: |
Gravity Separator |
| Voltage: |
380V |
| Certification: |
SGS |
| Warranty: |
1 Year |
| Color: |
Black |
| Customized: |
Customized |
| Condition: |
New |
| Material: |
Firber Glass |
| Material Feature: |
Anti Corrosion |
Product Description
Descriptions

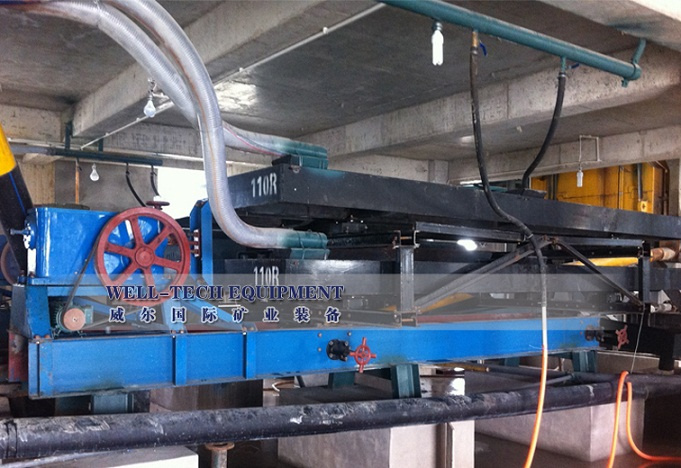

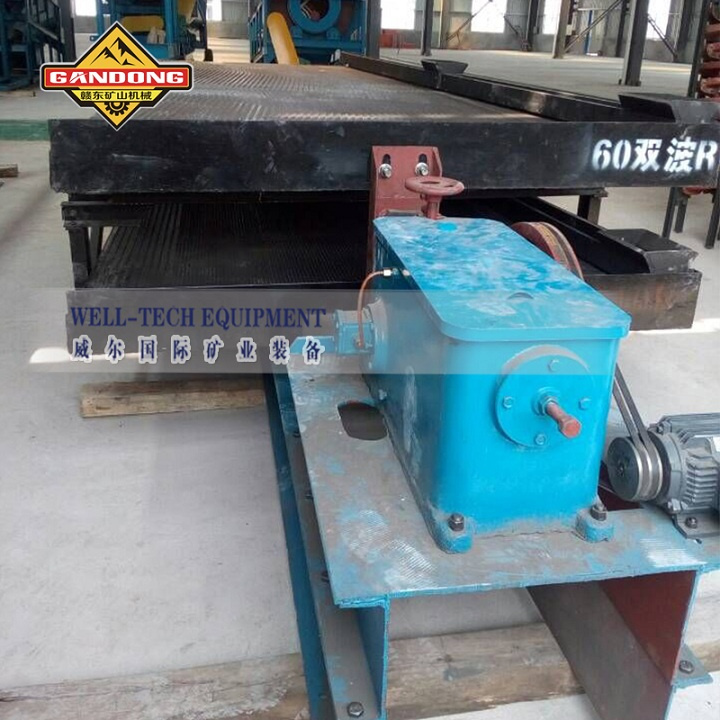

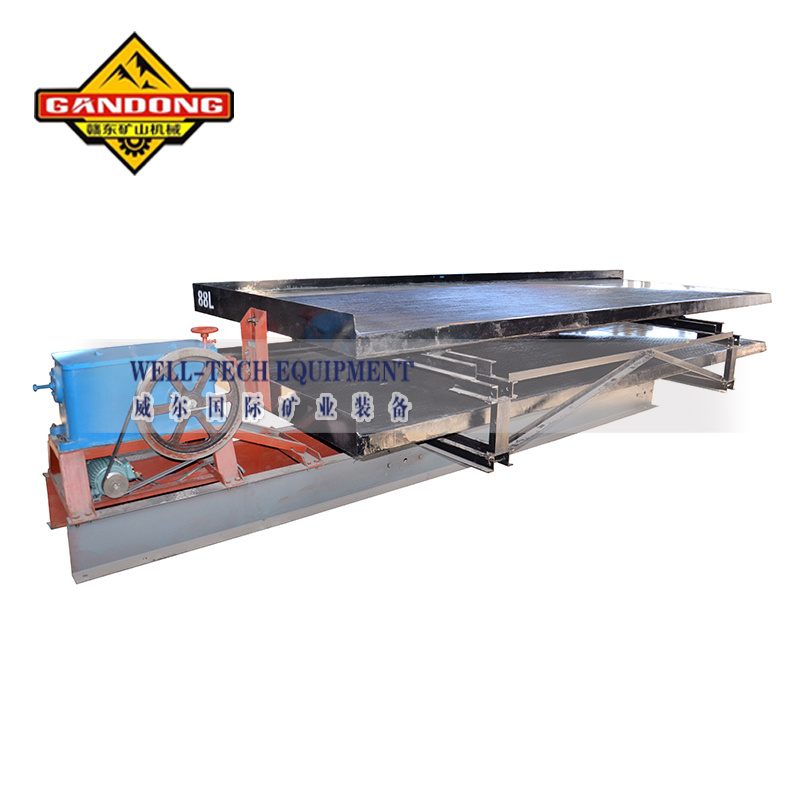

Double deck shaking table is widely used for tungsten, tin, tantalum and niobium, gold, iron, manganese and other metals, ferrous metals, nonferrous metals, precious metals and other minerals and coal sorting.
Traditional shaker covers an area of large, relatively low processing capacity,cost increases, double-shaker covers an area of inconvenience to deal with a large amount of equipment, low cost, Shaker is available in the double-sweep the election, featuring various operations, sorting coarse sand (2-0.5 mm), fine sand (0.5-0.74), sludge (0.074) different grain level, The same bed with hyperbolic rocker mechanism, the spring box in the shaker box, the crankshaft, rod, springs, rocker and so increase the size, material unchanged. The lower bed sharing a set of lower bed slope adjustment device used in shake liner support.
Technical Specifications
| Model | Unit | DL4500/1850 | DL3000/1320 |
| Bed Size | mm | 4500/1850/1560 | 3000/1320/1100 |
| Stroke | mm | 6-8 | 6-8 |
| Frequency of stroke | /min | 240-380 | 210-320 |
| Slope | o | 0-10 | 0-10 |
| Feed size | mm | 0.02-2 | 0.02-2 |
| Feed density | % | 10-30 | 10-30 |
| Water | t/h | 0.8-1.4 | 0.6-1.2 |
| Power | kw | 1.5 | 1.5 |
| Capacity | t/h | 2.5-3.5 (coarse sand) | 2.5-3 (coarse sand) |
| t/h | 1.6-2.5 (find sand) | 0.8-2.5 (find sand) |
| Overall dimensions | mm | 5600/1850/1560 | 4100/1320/1560 |
| Weight | kg | 1650 | 1550 |
FAQ
Weclome to visiting our factory to check the machines or send to my email as follow information.
1.Capacity of project?
2.Particle size of original ore?
3.What kind of mineral ores ?
4.Kindly let me know the electric power of your country , here we are 380V 50HZ 3PHASE
We will suggest you the best type and good machines for respect customers.
Why choose our company machine?
1. We are factory (NOT Dealer)
All machinery from Well-tech international equipment Mining Machinery Manufactory are made by ourselves, No trade company make
Commission(many trade companies do not produce the machinery),the lower price with the same goods, good quality, after service can be assured (after service of trade companies will get help from factory).
So please buy from factory
2. We will do our best to satisfy every customer's needs
Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.
3. Training & service
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
4. If you are new for this business, I will help you
Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on
5. We will recommend a suitable type for you and send you a best quotation
Our Services
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
If you are interested in our products, Please through below method contact us, or welcome come to our factory visit!
Mobile: +86 183-7987-3189
Contact person: Mily
Jiangxi Gandong Mining Equipment Machinery Manufacturer is a large beneficiation service company specialized in designing, manufacturing, installing and debugging of mining equipment as well as providing flow sheet design and course training of beneficiation, now our factory is the largest manufacturer and supplier of gravity mining equipment in China. Our factory has 12 years experience in mining equipment manufacturing, two special factories directly under the factory specialized in the manufacture of mining equipment and the manufacture of crusher and grinder. Our company covers an area of about 20, 000 square meters and with various large modernized machinery process facilities, professional mechanical and manufacturing engineers, professional mining engineers, as well as professional installation team.
Our factory has been adhering to the "honesty and realistic, quality first, technological innovation" business philosophy, successfully achieved ISO9001: 2008 Quality Management System Certificate, meanwhile cooperated with SGS and obtained SGS Audited Supplier Certificate. In addition, our factory obtained certificate of "Following Contract and Observing Credit" AA level Enterprise from Ganzhou city Administration Bureau for Industry and Commerce, and we signed an agreement of technical cooperation and product development with Jiangxi University of Science and Technology which is known as the "the cradle of nonferrous metallurgical expert", and established "East China Mining Equipment Technology Research & Development Center" and "Jiangxi Shicheng Mining Equipment Technology Research & Development Center" in our factory.
Because of excellent performance of our products and professional after-sale service, our gravity mining machine, flotation machine, classification machine, screening machine are known both at home and abroad, which gravity mining machine has a 35% market share in China. Meanwhile, we adhere to international development strategies, according to the market demand and the superiority of our products, continuously to strengthen up development of international market. Now our products have been exported to over 40 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, SouthAfrica, Zimbabwe, Sudan, Ghana, Congo, Morocco, India, Indonesia, Malaysia, Philippines, NorthKorea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide customers with one-stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.
