| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | JCT1325L |
|---|---|
| Processing: | Drilling Machine |
| Spindle: | 9kw Itlay Hsd Air Cooling Spindle |
| Motor: | Japan Yaskawa Servo Motor and Servo Driver |
| Control: | Synthec or Ncstudio |
| Table: | Vacuum Suction |
| Size: | 1300*2500*300 mm (Optional) |
| X.Y Structure: | Gear Wheel Transmission, Hiwin Linear Guide Rail |
| Z Stucture: | Hiwin Ball Screw, Hiwin Guide Rail |
| Software: | Artcam / Type 3 / Powermill |
| Working Speed: | Max 30 M/Min |
| Spindle Layout: | Vertical |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS |
Discount price aluminum composite panel cutting machine / 3D CNC cutting machine for solidwood,MDF,aluminum,PVC,Plastic,foam,stone
For cutting/engraving foam ,plastic,stone,wood,aluminum,Alucbond,ACP,copper,PVC ,glass etc
For making kitchen top / counter top / table top / basin table etc
For making furniture / mould / releif / sculpture / artwork / decoration / craft / mold etc
1.Technical Specifications
Description | Parameters |
Model | JCT1325L |
X,Y,Z axis working area | 1300*2500*300mm |
Whole structure | Welded Steel gantry structure |
Table surface | Clamp & Vaccum suction table |
X,Y,Z structure | Taiwan HIWIN Square linear guide rail |
X,Y structure | Rack and pinion transmission,high speed and more stable; Y -double motor drive |
Z structure | Imported ball screw, high precision |
Max. idling speed | 50m/min |
Max. working speed | 30m/min |
Repositioning Accuracy | ±0.05mm |
X Y Z working Accuracy | < 0.02mm |
Spindle | 9KW ITALY HSD ATC air-cooling spindle |
Spindle rotating speed | 0-24000rpm/min |
Tool magazine | Linear ATC system, with 8pcs tool magazine |
Diameter of tools | Φ3.175 -Φ20 |
Collet size | ER 32 |
Operation language | G code (plt, mmg, uoo, bmp) |
Driving system | Japan servo motor and driver |
Operating system | Ncstudio control system |
Working voltage | AC380V, 3ph, 50-60Hz |
Software | UcancamV8 / Type3 / Artcam software (option) |

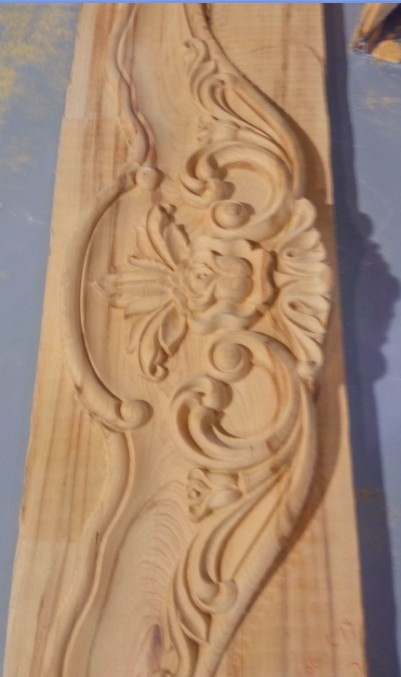

2.Sample photo
